5254 E (54BE542-710) - Cub Cadet Compact Tractor Starter Parts Diagram

Compact Tractor

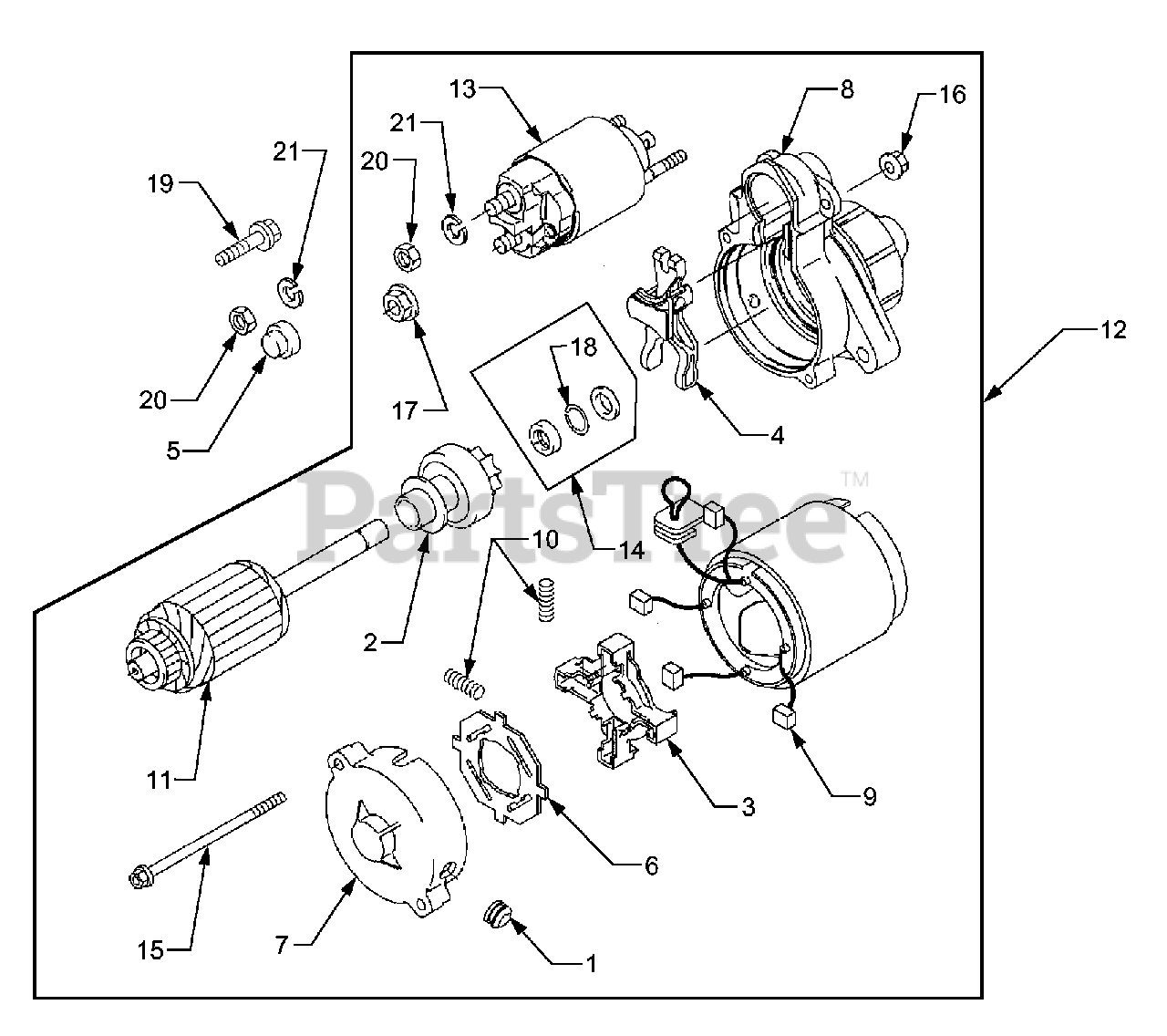

Starter Parts Diagram

  • Title

1

Cub Cadet KM-11012-2226

Cap

$3.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KM-13081-2108

Clutch Assembly

$122.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KM-13091-2068

Holder, Brush

$29.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KM-13168-2131

Lever, Shift

$24.99

$

In Stock, only 1 left!

0

5

Cub Cadet KM-14024-2205

Cover

$1.49

$

Usually ships in 2-5 days

0

6

Cub Cadet KM-16073-2098

Insulator

$10.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KM-16146-2187

Cap, Starter End

$

$

Not available

8

Cub Cadet KM-16146-2225

Cone, Starter Nose

$

$

Not available

9

Cub Cadet KM-21039-2059

Brush

$15.99

$

In Stock, only 1 left!

0

10

Cub Cadet KM-21040-2052

Spring, Brush

$3.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KM-21080-2054

Armature

$

$

Not available

12

Cub Cadet KM-21163-2120

Starter, Electric
(Superseded to KM-21163-2153)

$670.99

$

Usually ships in 2-5 days

0

13

Cub Cadet KM-27010-2122

Solenoid, Starter
(Superseded to KM-27010-7005)

$189.99

$

In Stock, Qty 14

0

14

Cub Cadet KM-32085-2097

Stopper

$15.99

$

Usually ships in 2-5 days

0

15

Cub Cadet KM-92002-2277

Bolt

$13.99

$

In Stock, Qty 5

0

16

Cub Cadet KM-92015-2146

Nut

$1.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KM-92015-2147

Nut

$7.49

$

Usually ships in 2-5 days

0

18

Cub Cadet KM-92033-2081

Ring, Snap

$6.99

$

Usually ships in 2-5 days

0

19

Cub Cadet KM-130G0835

Bolt, Flanged

$

$

Currently unavailable

20

Cub Cadet KM-317B0800

Nut, Hex

$0.99

$

In Stock, Qty 19

0

21

Cub Cadet KM-461F0800

Washer, Spring
(Superseded to KM-461DA0800)

$0.99

$

In Stock, Qty 20+

0
