5253 - Lawn-Boy Walk-Behind Mower (SN: C00000001 - C99999999) (1984) Deck And Shroud Group Model: 4600 Parts Diagram

Walk-Behind Mower

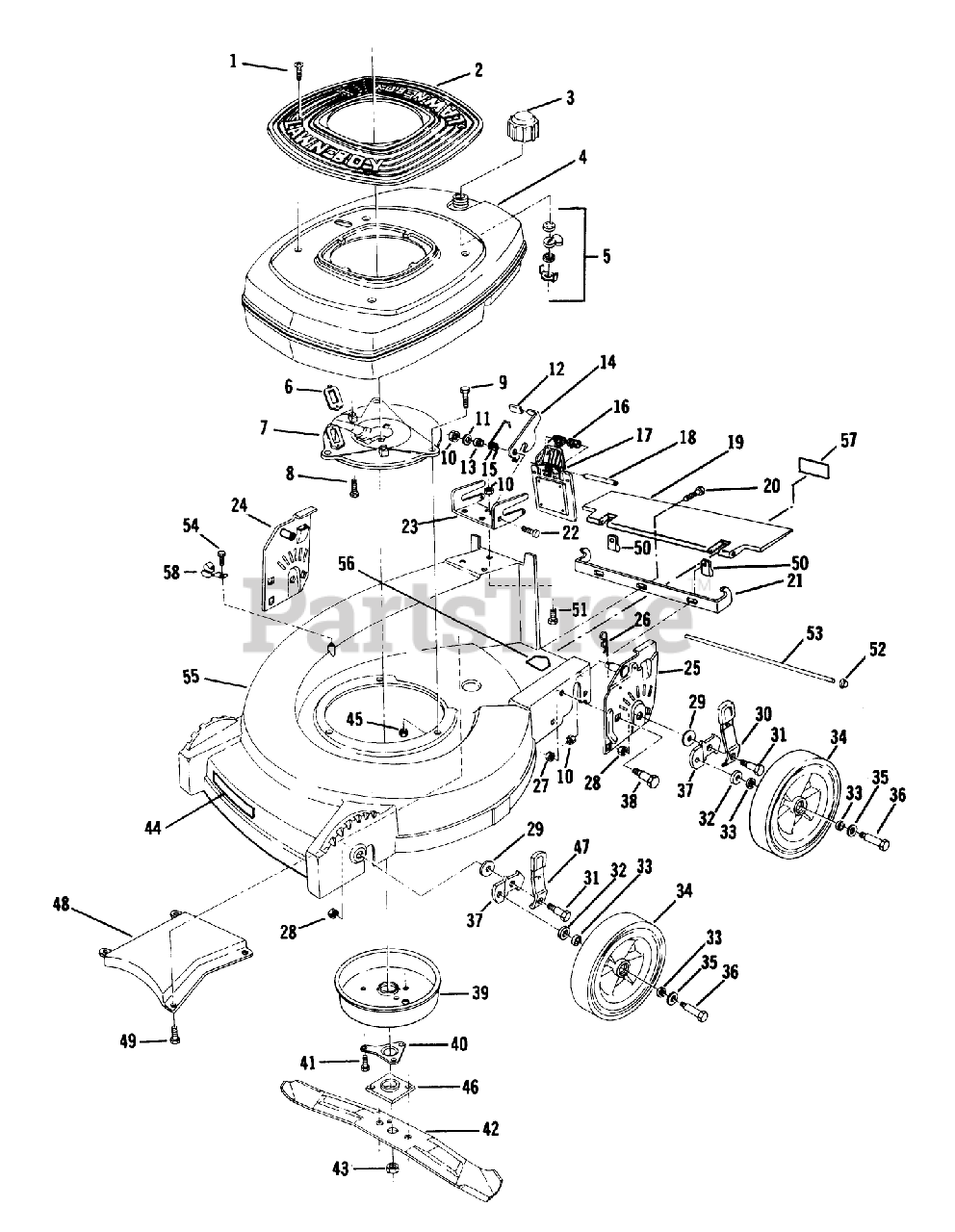

Deck And Shroud Group Model: 4600 Parts Diagram

  • Title

1

Lawn-Boy 611395

SCREW - SELF TAPPING
(Superseded to 611543)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$4.49

$

In Stock, Qty 6

0

2

Lawn-Boy 611463

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 682755

FUEL CAP & INSERT

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$25.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 682885

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 683077

SHUT-OFF VALVE S

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 609420

See Supercession: 93-1233
(Superseded to 93-1233)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 6

0

7

Lawn-Boy 609119

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 607601

SCREW V

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

9

Lawn-Boy 611774

SCREW-HH

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

10

Lawn-Boy 602315

LOCKNUT E

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

11

Lawn-Boy 611488

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 611488

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 611484

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 611486

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 611491

SPRING

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 611480

SPRING ASOC

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 683039

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 611493

ROD (RB&W)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$9.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 611495

T/SHIELD SM&P

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$49.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 609892

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 611490

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 609892

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 611496

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 683237

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 683238

HANDLE BRACKET LH

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$86.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 605803

HAIR PIN

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 608311

NUT-LOCK F

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

28

Lawn-Boy 603773

LOCKNUT

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$2.99

$

In Stock, only 1 left!

0

29

Lawn-Boy 608834

WASHER

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$14.99

$

In Stock, only 2 left!

0

30

Lawn-Boy 682892

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 610646

BOLT

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$7.49

$

Usually ships in 3-6 days

0

32

Lawn-Boy 603620

WASHER WROUGHT

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$5.99

$

In Stock, Qty 20+

0

33

Lawn-Boy 605255

WASHER

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 20+

0

34

Lawn-Boy 682974

See Supercession: 131-4520
(Superseded to 131-4520)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$37.99

$

In Stock, only 1 left!

0

35

Lawn-Boy 605256

SPACER

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

36

Lawn-Boy 603441

BOLT WHEEL

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$7.99

$

In Stock, Qty 20+

0

37

Lawn-Boy 608833

See Supercession: 608833-03
(Superseded to 608833-03)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$27.99

$

In Stock, only 2 left!

0

38

Lawn-Boy 610404

See Supercession: 146209
(Superseded to 146209)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

39

Lawn-Boy 682876

MUFFLER COVER F

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$165.99

$

Usually ships in 3-6 days

0

40

Lawn-Boy 609786

SUPPORT F

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$23.99

$

In Stock, only 2 left!

0

41

Lawn-Boy 609471

SCREW

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$4.99

$

In Stock, Qty 14

0

42

Lawn-Boy 682911

DISCONTINUED
(Superseded to 612542-03)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

43

Lawn-Boy 603164

NUT-BLADE
(Superseded to 121-3611)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$5.99

$

In Stock, only 1 left!

0

44

Lawn-Boy 611579

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

45

Lawn-Boy 608311

NUT-LOCK F

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

46

Lawn-Boy 677525

PLATE AND COLLAR ASM

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$51.99

$

In Stock, only 1 left!

0

47

Lawn-Boy 681229

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

48

Lawn-Boy 611497

BAFFLE CHUTE PL

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

49

Lawn-Boy 608418

See Supercession: 46-6811
(Superseded to 46-6811)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$3.49

$

In Stock, only 3 left!

0

50

Lawn-Boy 611602

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

51

Lawn-Boy 548735

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

52

Lawn-Boy 609975

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

53

Lawn-Boy 610026

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

54

Lawn-Boy 611503

SCREW LAWRENCE

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

55

Lawn-Boy 683219

See Supercession: 683798
(Superseded to 683798)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

56

Lawn-Boy 610640

See Supercession: 43-8480
(Superseded to 43-8480)

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$6.99

$

In Stock, Qty 6

0

57

Lawn-Boy 611533

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available

58

Lawn-Boy 611504

DISCONTINUED

Note: Important Note: Painted, plastic or fiberglass replacement parts may not always be available in matching colors.

$

$

Not available
