5252 E (54AE52DC710) - Cub Cadet Compact Tractor (SN: 1J015G - 999999) Transmission Mounting Parts Diagram

Compact Tractor

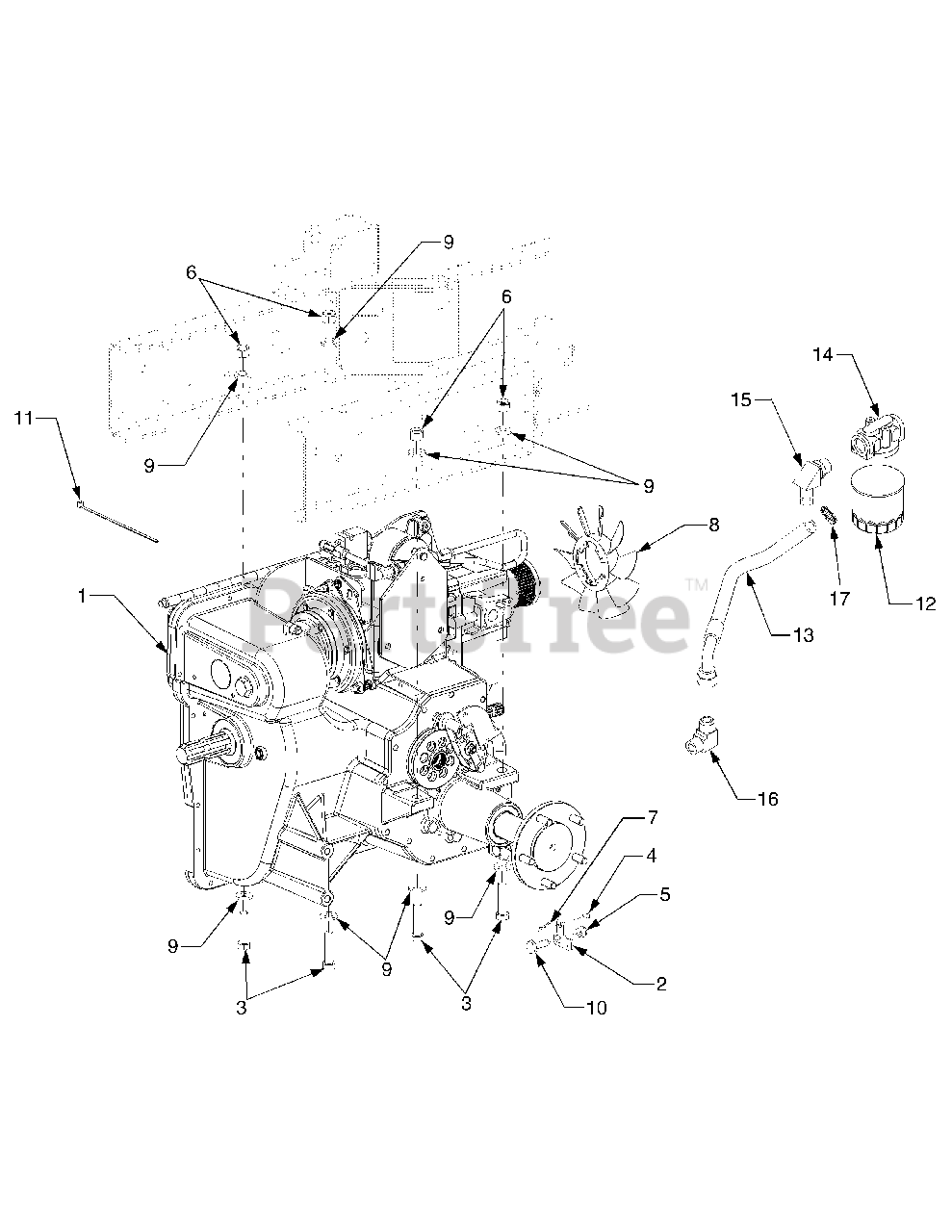

Transmission Mounting Parts Diagram

  • Title

1

Cub Cadet N/A

Transmission Assembly

$

$

Currently unavailable

2

Cub Cadet 603-04193

Link, Diff Lock Actuator

$

$

Not available

3

Cub Cadet 710-3071

Screw, Hex Cap 1/2-13 x 2.0 GR8

$

$

Not available

4

Cub Cadet 711-0701

Pin, Clevis, .25 x .50
(Superseded to 911-0701)

$6.99

$

In Stock, only 1 left!

0

5

Cub Cadet 712-3061

Nut. Hex Insert Lock, 3/8-24

$6.99

$

In Stock, Qty 14

0

6

Cub Cadet 712-3083

Nut, Hex Insert Lock, 1/2-13

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 731-05247

Fan, Transmission Cooling
(Superseded to 931-05247)

$39.99

$

In Stock, only 2 left!

0

9

Cub Cadet 736-3019

Washer, Flat, .531 x .1062 x .134 .

$5.99

$

In Stock, Qty 11

0

10

Cub Cadet 738-0689

Screw, Shoulder, 1/2 Dia. x .180 ..
(Superseded to 938-0689)

$8.99

$

In Stock, only 2 left!

0

11

Cub Cadet 725-0157

Tie, Cable

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 723-3014

Filter, Oil
(Superseded to 923-3014)

$20.99

$

In Stock, Qty 20+

0

13

Cub Cadet 727-04128

Hose, Filter

$

$

Not available

14

Cub Cadet 618-04295

Adapter, Oil Filter

$

$

Not available

15

Cub Cadet 737-04131

Fitting, 45° Elbow

$

$

Not available

16

Cub Cadet 737-04102

Fitting, 90° Elbow

$

$

Not available

17

Cub Cadet 726-0132

Clamp, Adjustable Hose

$15.99

$

Usually ships in 3-6 days

0
