5252 E (54AE52DC710) - Cub Cadet Compact Tractor (SN: 1J015G - 999999) Deck Drive, 60 inch Parts Diagram

Compact Tractor

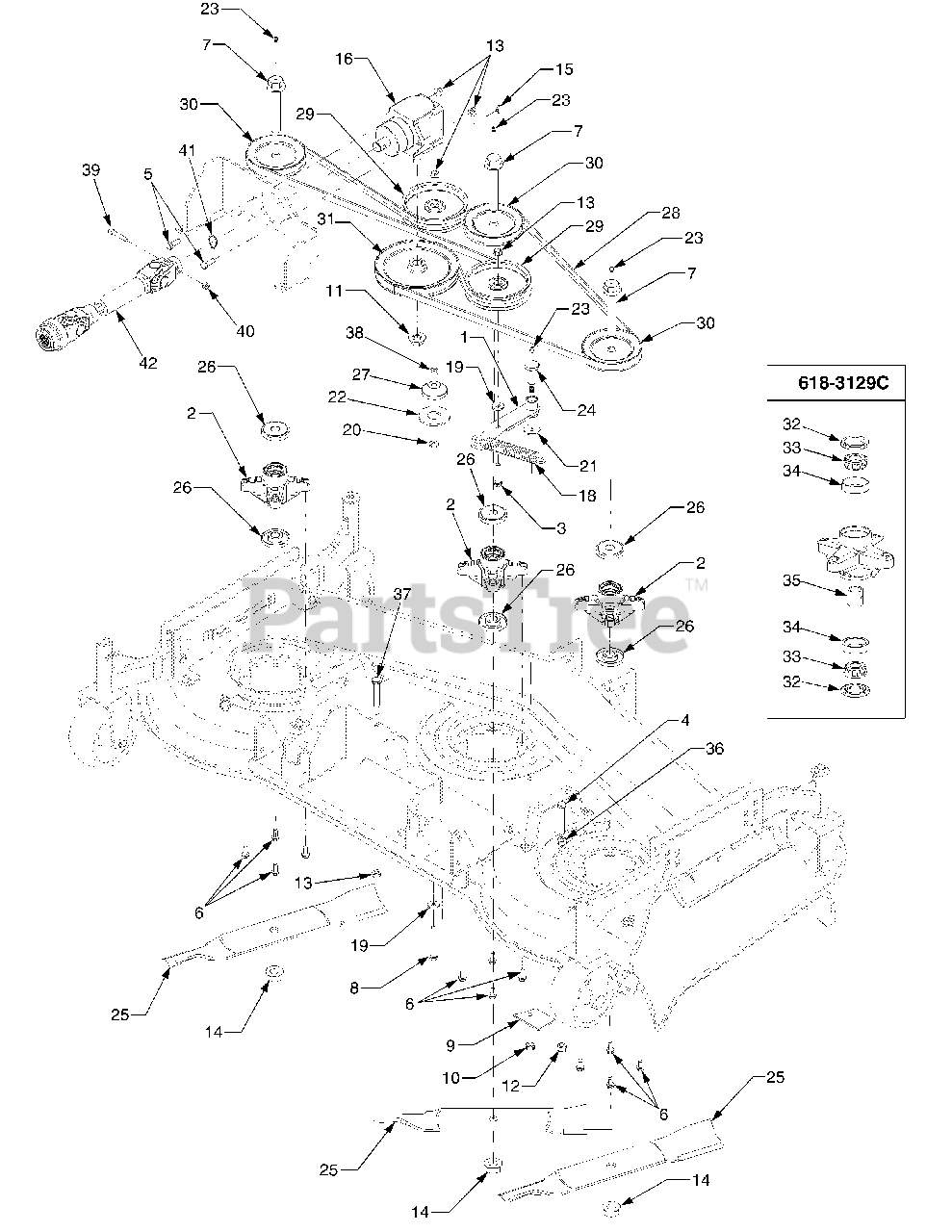

Deck Drive, 60 inch Parts Diagram

  • Title
1

Cub Cadet 603-0848A-0716

Bracket, Idler
(Superseded to 603-0848A-0637)

$

$

Not available

2

Cub Cadet 618-3129C

Assembly, Spindle (Includes Ref. Nos. 32 thru 35)
(Superseded to 918-3129C)

$112.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0347

Screw, Hex Cap 3/8-16 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0395

Screw, Hex Cap 5/16-18 x 2.25 GR5

$4.99

$

In Stock, only 1 left!

0

5

Cub Cadet 710-3005

Screw, Hex Cap 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-1260A

Screw, Hex Wash Hd Tapp 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-1336A

Bolt, Spindle, 3/4-16 x 4.25

$24.99

$

In Stock, Qty 8

0

8

Cub Cadet 710-0521

Screw, Hex Cap 3/8-16 x 3.0 GR8

$5.49

$

In Stock, Qty 11

0

9

Cub Cadet 703-05658

Plate, Idler Support

Variations

Cub Cadet 703-05658-0716

PLATE-IDLER SUPPORT - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 703-05658-0691

IDLER SUPPORT PLATE (BLACK JACK) - BLACK JACK (0691)

$

$

Not available

$

$

10

Cub Cadet 712-0290

Nut, Hex Lock, 7/16-14

$4.99

$

In Stock, Qty 11

0

11

Cub Cadet 712-0417A

Nut , Hex Flanged 5/8-18

$6.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-0429

Nut, Hex Nylon Lock 5/16 -18

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 712-0431

Nut, Flange Lock 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-3078

Nut, Hex Flange, 3/4-16

$9.99

$

In Stock, Qty 20+

0

15

Cub Cadet 714-0126

Key, Hi-Pro

$4.99

$

In Stock, Qty 12

0

16

Cub Cadet 717-04036

Drive, Right Angle
(Superseded to 917-04036)

$630.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 732-0850

Spring, Extension 6.14" Lg.
(Superseded to 932-0850)

$24.99

$

In Stock, Qty 5

0

19

Cub Cadet 736-0258

Washer, Flat .385 x 1.0 x .135

$4.49

$

In Stock, only 4 left!

0

20

Cub Cadet 736-0354

Washer, Flat, .39 x .75 x . 105

$3.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 736-0322

Washer, Flat, .45 x 1.25 x .164

$9.49

$

In Stock, Qty 8

0

22

Cub Cadet 736-04167

Washer, Flat 1.063 x 2.5 x .16

$14.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 737-3000

Fitting, Lube
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

24

Cub Cadet 738-3005A

Bolt, Shoulder .68" Dia. x 1.59
(Superseded to 638-04012A)

$21.99

$

In Stock, Qty 5

0

25

Cub Cadet 759-04013

Blade, High Lift 20.5" Lg.
(Superseded to 742P3042)

$51.99

$

In Stock, Qty 6

0

26

Cub Cadet 748-3065A

Spacer, Deck Spindle

$13.99

$

In Stock, Qty 14

0

27

Cub Cadet 748-3087

Spacer, Idler

$39.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 754-3103

Belt, “V" 133" Lg.
(Superseded to 954-3103)

$102.99

$

In Stock, only 2 left!

0

29

Cub Cadet 756-3062

Pulley, Flat Idler

$40.99

$

In Stock, Qty 13

0

30

Cub Cadet 756-3096

Pulley, “V"

$40.99

$

In Stock, Qty 11

0

31

Cub Cadet 756-3098

Pulley, Drive

$109.99

$

In Stock, only 1 left!

0

32

Cub Cadet 721-3018A

Seal, Oil
(Superseded to 921-3018A)

$8.49

$

In Stock, Qty 20+

0

33

Cub Cadet 741-04129

Bearing, Cone
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 18

0

34

Cub Cadet 741-04130

Cup, Bearing
(Superseded to 941-04299)

$6.99

$

In Stock, Qty 20+

0

35

Cub Cadet 750-04409

Spacer, Bearing

$20.99

$

In Stock, only 1 left!

0

36

Cub Cadet 712-3046

Nut, Hex Jam, 5/16-18 Lock

$6.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 738-3056

Screw, Shoulder, 1/2 x 2.5
(Superseded to 938-3056)

$9.49

$

In Stock, Qty 20+

0

38

Cub Cadet 750-0535

Spacer, .38 ID x .625 OD x .21
(Superseded to 950-0535)

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet 710-3251

Screw, Socket Hd. 5/16-18 x 1.75 GR5

$5.99

$

In Stock, only 2 left!

0

40

Cub Cadet 712-0429

Nut, Hx Insert Lck, 5/16-18 Gr5

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 716-0111

Ring, Retaining, (.875 Shaft)

$6.99

$

In Stock, only 4 left!

0

42

Cub Cadet 717-04029

Shaft, Deck Drive
(Superseded to 917-04029)

$898.99

$

Usually ships in 3-6 days

0
