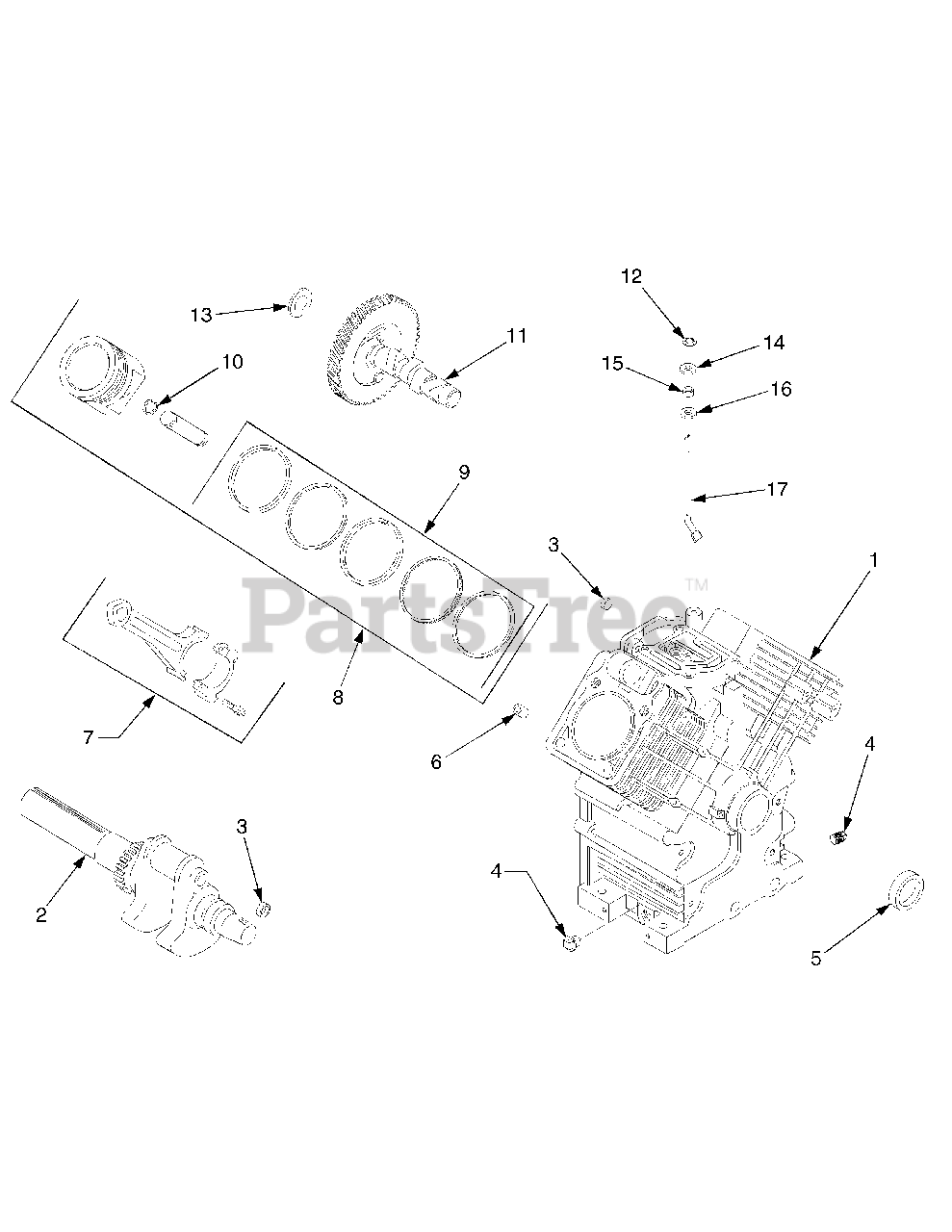

5252 E (54AE52DC710) - Cub Cadet Compact Tractor (SN: 1J015G - 999999) Crankcase and Crankshaft Parts Diagram

Compact Tractor

Crankcase and Crankshaft Parts Diagram

  • Title

1

Cub Cadet KH-7300149

Engine, Complete

$

$

Currently unavailable

1

Cub Cadet KH-24-782-32

Miniblock

$

$

Not available

1

Cub Cadet KH-24-522-339

Short Block

$

$

Not available

2

Cub Cadet KH-24-014-02-S

Crankshaft (Includes 3)
(Superseded to KH-24-014-345-S)

$564.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-52-139-09

Plug, Cup
(Superseded to KH-52-139-09-S)

$4.99

$

In Stock, only 2 left!

0

4

Cub Cadet KH-25-139-57-S

Plug, Hex Head, 3/8 NPTF

$2.49

$

In Stock, only 3 left!

0

5

Cub Cadet KH-24-032-01

Seal, Oil
(Superseded to KH-24-032-19-S)

$7.49

$

In Stock, Qty 20+

0

6

Cub Cadet KH-24-380-16-S

Pin, Dowel Locating

$4.49

$

In Stock, only 3 left!

0

7

Cub Cadet KH-24-067-13-S

Rod, Connecting, Std
(Superseded to KH-25-067-04-S)

$59.99

$

In Stock, Qty 11

0

7

Cub Cadet KH-24-067-14-S

Rod, Connecting, .010
(Superseded to KH-25-067-05-S)

$59.99

$

In Stock, only 1 left!

0

8

Cub Cadet KH-24-874-08-S

Piston w/Ring Set, Std
(Superseded to KH-25-874-13-S)

$270.99

$

In Stock, only 2 left!

0

8

Cub Cadet KH-24-874-16-S

Piston w/Ring Set, .003
(Superseded to KH-25-874-07-S)

$261.99

$

Usually ships in 2-5 days

0

8

Cub Cadet KH-24-874-20-S

Piston w/Ring Set, .010
(Superseded to KH-25-874-16-S)

$261.99

$

In Stock, only 1 left!

0

8

Cub Cadet KH-24-874-21-S

Piston w/Ring Set, .020
(Superseded to KH-25-874-17-S)

$261.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-24-108-05-S

Ring Set, Std & .003
(Superseded to KH-24-108-15-S)

$103.99

$

In Stock, only 3 left!

0

9

Cub Cadet KH-24-108-06-S

Ring Set, Std & .010
(Superseded to KH-24-108-16-S)

$103.99

$

In Stock, only 2 left!

0

9

Cub Cadet KH-24-108-07-S

Ring Set, Std & .020
(Superseded to KH-24-108-17-S)

$

$

Not available

10

Cub Cadet KH-24-018-01

Retainer, Piston Pin
(Superseded to KH-24-018-01-S)

$2.99

$

In Stock, Qty 7

0

11

Cub Cadet KH-24-012-16-S

Camshaft
(Superseded to KH-24-012-25-S)

$165.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-24-018-09-S

Ring, Retainer

$2.49

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-12-422-09

Shim, Camshaft, .0320 red
(Superseded to KH-12-422-09-S)

$2.49

$

In Stock, only 1 left!

0

13

Cub Cadet KH-12-422-13

Shim, Camshaft, .0400 black
(Superseded to KH-12-422-13-S)

$2.99

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-12-422-07

Shim, Camshaft, .0280 white
(Superseded to KH-12-422-07-S)

$4.49

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-12-422-08

Shim, Camshaft, .0300 blue
(Superseded to KH-12-422-08-S)

$2.49

$

In Stock, only 2 left!

0

13

Cub Cadet KH-12-422-10

Shim, Camshaft, .0340 yellow ..
(Superseded to KH-12-422-10-S)

$2.49

$

In Stock, only 1 left!

0

13

Cub Cadet KH-12-422-11

Shim, Camshaft, .0360 green ...
(Superseded to KH-12-422-11-S)

$2.49

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-12-422-12

Shim, Camshaft, .0380 gray
(Superseded to KH-12-422-12-S)

$2.99

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-M-931010-S

Washer, Flat 8mm

$2.49

$

In Stock, only 2 left!

0

15

Cub Cadet KH-28-032-09-S

Seal, Governor Cross Shaft

$3.49

$

In Stock, Qty 6

0

16

Cub Cadet KH-24-468-15-S

Washer, Plain

$2.49

$

In Stock, Qty 5

0

17

Cub Cadet KH-24-144-38-S

Shaft, Governor Cross
(Superseded to KH-24-144-39-S)

$41.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-755-113-S

Gasket Set
(Superseded to KH-24-755-394-S)

$215.99

$

Usually ships in 3-6 days

0
