5252 E (54AE52DC710) - Cub Cadet Compact Tractor (SN: 000001 - 1J015G) ROPS Parts Diagram

Compact Tractor

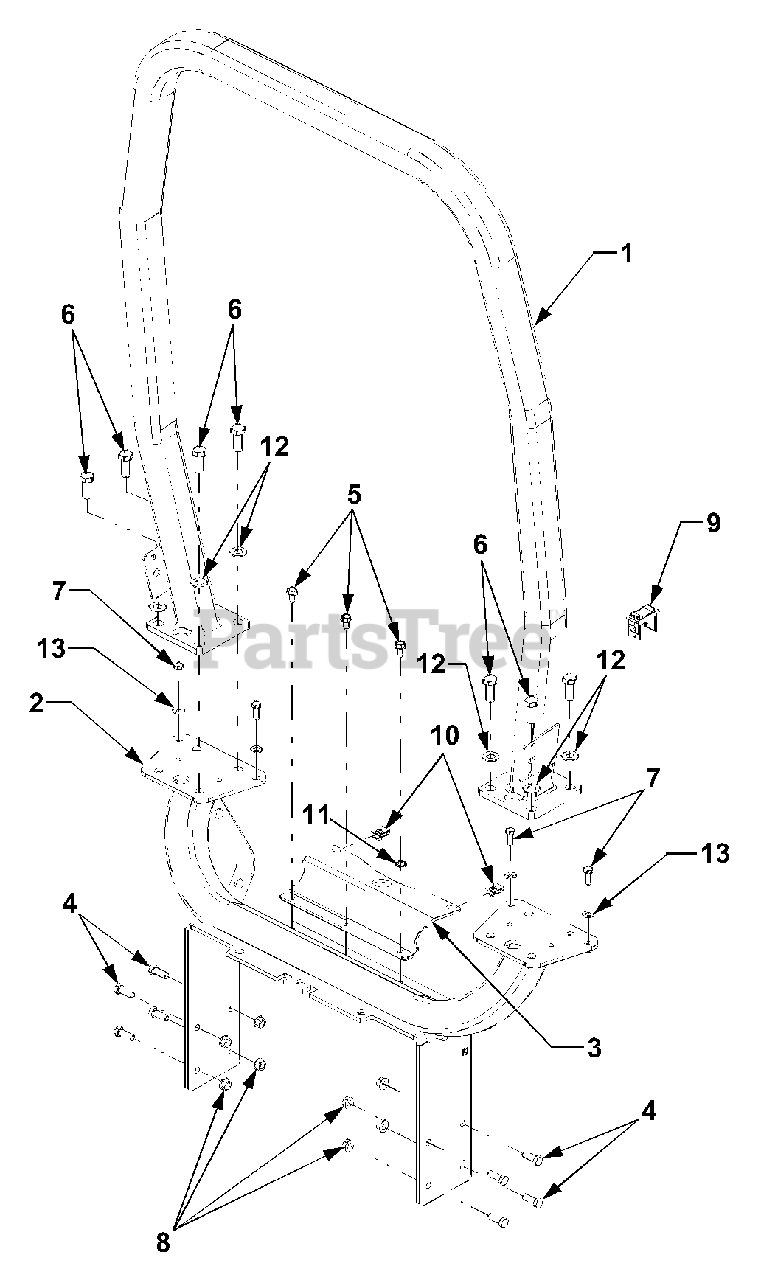

ROPS Parts Diagram

  • Title

1

Cub Cadet 603-04011-0637

Rops, Upper

$

$

Currently unavailable

2

Cub Cadet 603-04012-0637

Rops, Lower

$

$

Currently unavailable

3

Cub Cadet 703-05032-0637

Bracket, Rear Seat Mounting

$

$

Not available

4

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 x 1.0 GR5

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-1260A

Screw, Hex Wash. Hd. Tapp 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3032

Screw, Hex Cap, 1/2-13 x 1.25 GR5

$6.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-3038

Screw, Hex Cap, 5/16-18 x .875 GR5

$4.99

$

In Stock, only 3 left!

0

8

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16 GRF
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 725-2017

Plug

$

$

Not available

10

Cub Cadet 726-0211

Nut, Speed, 5/16-18

$4.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 736-0148

Washer, Ext. Tooth Lock, 3/8

$3.99

$

In Stock, only 3 left!

0

12

Cub Cadet 736-0272

Washer, Flat, .51 x 1.0 x .060

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 736-0275

Washer, Flat, .344 x .688 x .065

$6.99

$

Usually ships in 3-6 days

0
