5252 E (54AE52DC710) - Cub Cadet Compact Tractor (SN: 000001 - 1J015G) Fender And Running Board Parts Diagram

Compact Tractor

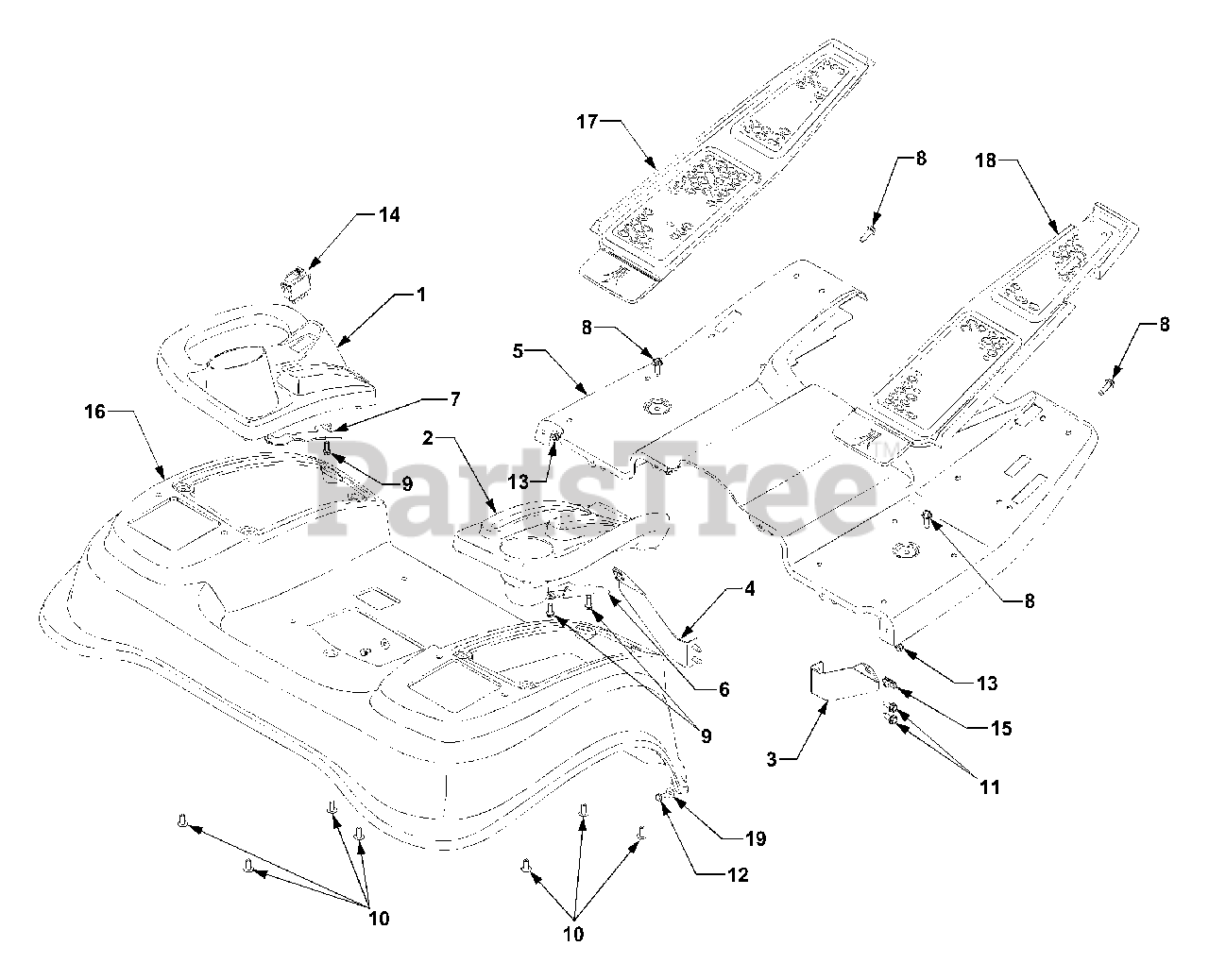

Fender And Running Board Parts Diagram

  • Title
1

Cub Cadet 631-04031

Cover, Fender, LH
(Superseded to 931-04031)

$

$

Not available

2

Cub Cadet 631-04107

Cover, Fender, RH

$

$

Not available

3

Cub Cadet 703-05105-0637

Bracket, Running Board Mtg. RH

$35.99

$

In Stock, only 1 left!

0

4

Cub Cadet 703-05113-0637

Bracket, Running Board Mtg. LH

$

$

Not available

5

Cub Cadet 703-05199-0716

Running Board

$

$

Not available

Cub Cadet 777S32332

Graphic, Instruction

$

$

Not available

Cub Cadet 777S32274

Graphic, Waring

$

$

Not available

6

Cub Cadet 703-05306

Bracket, Lift Float Gate

Variations

Cub Cadet 703-05306-0637

GATE-LIFT FLOAT (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

7

Cub Cadet 703-05307

Bracket, Shift Gate, Hi-Lo
(Superseded to 703-05307-0637)

Variations

Cub Cadet 703-05307-0637

GATE-HI LO SHIFT - POWDER BLACK (0637)

$

$

Not available

$

$

8

Cub Cadet 710-0602

Screw, Hex Wash. Hd. Tapp 5/16-18 x 1.0

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0895

Screw, Hex Wash. Hd, Tapp 1/4-15 x .75

$6.49

$

In Stock, Qty 10

0

10

Cub Cadet 710-1242

Screw, Truss Phillips Hd. 5/16-14 x .75

$4.99

$

In Stock, Qty 19

0

11

Cub Cadet 710-1260A

Screw, Hex Wash. Hd. Tapp 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3013

Screw, Hex Cap, 1/4-20 x .5 GR5

$4.99

$

In Stock, Qty 11

0

13

Cub Cadet 712-0324

Nut, Hex Insert Lock, 1/4-20 GR8

$3.99

$

In Stock, Qty 16

0

14

Cub Cadet 725-04070

Switch, PTO Reverse
(Superseded to 925-04070)

$77.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 726-0211

Nut, Speed, 5/16-18

$4.49

$

In Stock, only 1 left!

0

16

Cub Cadet 731-04025

Fender
(Superseded to 931-05089)

$777.99

$

Usually ships in 3-6 days

0

Cub Cadet 777D07564

Graphic, Reflector

$

$

Not available

Cub Cadet 777D07729

Graphic, Cub Cadet

$

$

Not available

Cub Cadet 777S32286

Graphic, Warning

$

$

Not available

17

Cub Cadet 735-0275

Pad, Floor - LH

$59.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 735-0276

Pad, Floor - RH

$59.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 736-3090

Washer, Flat, .26 x .72 x .06

$6.99

$

In Stock, Qty 11

0
