5252 E (54AE52DC710) - Cub Cadet Compact Tractor (SN: 000001 - 1J015G) Deck Lift Linkage Parts Diagram

Compact Tractor

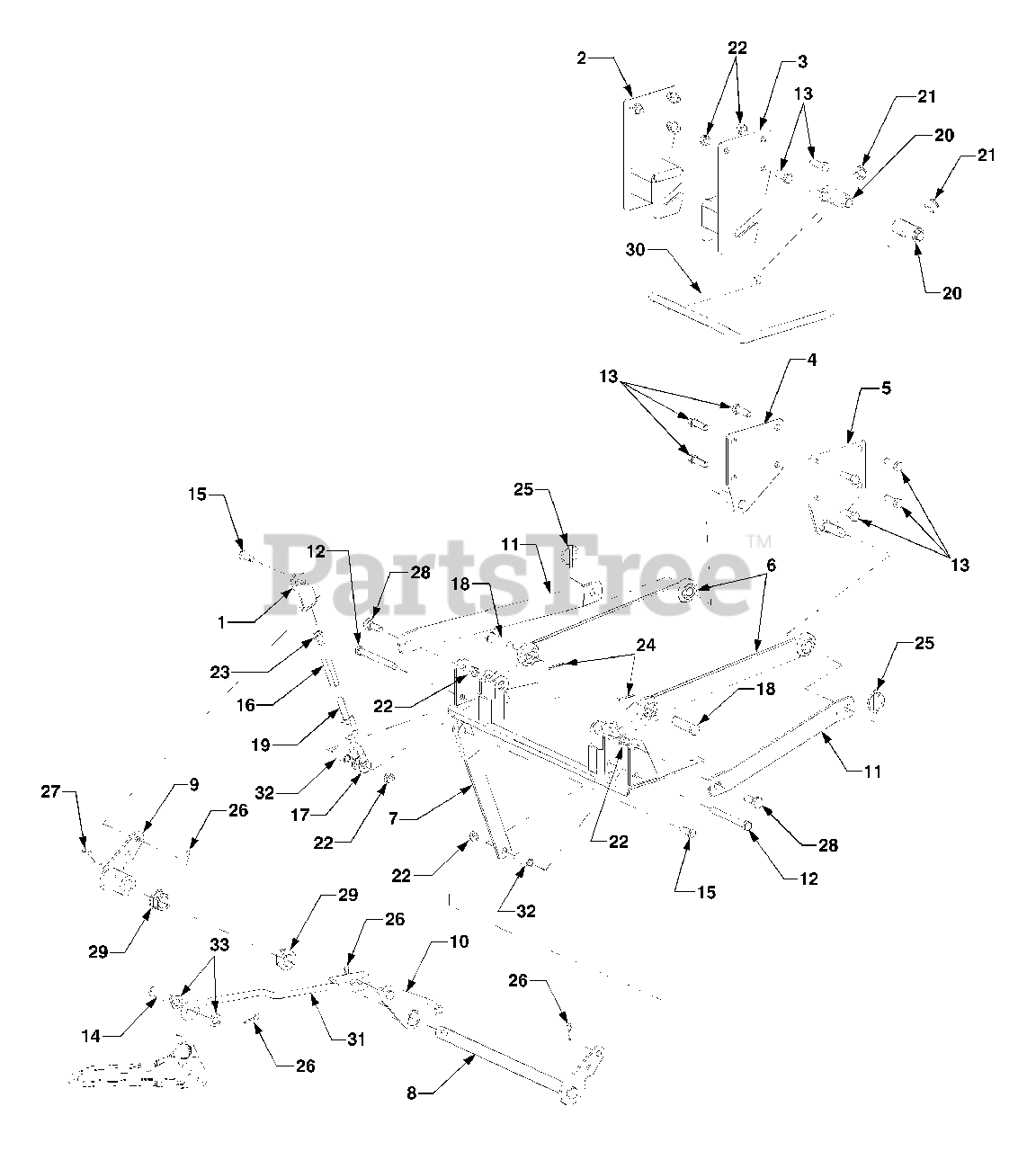

Deck Lift Linkage Parts Diagram

  • Title

1

Cub Cadet 603-04049

Clevis, Adjustment, 1/2 -13 x 4.76 1
(Superseded to 903-04049)

$110.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-0953-0637

Bracket, Front Hanger LH

$85.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-0954-0637

Bracket,, Front Hanger RH

$

$

Not available

4

Cub Cadet 603-0955-0637

Bracket, Rear Hanger LH

$

$

Not available

5

Cub Cadet 603-0956-0637

Bracket, Rear Hanger RH

$

$

Not available

6

Cub Cadet 603-0957-0637

Link, Deck Lift

$

$

Not available

7

Cub Cadet 603-0958-0637

Link, Fixed

$84.99

$

In Stock, only 1 left!

0

8

Cub Cadet 603-0959

Shaft. Lift
(Superseded to 903-0959)

Variations

Cub Cadet 603-0959-0637

USE 903-0959-0637 SHAFT-DECK - POWDER BLACK (0637)

$

$

Not available

$

$

9

Cub Cadet 603-0960-0637

Arm, Lift

$

$

Not available

10

Cub Cadet 603-0979-0637

Plate, Lift Crank

$

$

Currently unavailable

11

Cub Cadet 703-4112-0637

Brace, Deck Side

$

$

Not available

12

Cub Cadet 710-1807

Screw, Hex Cap, 1/2-13 x 4.5 GR5

$11.99

$

In Stock, only 1 left!

0

13

Cub Cadet 710-3181

Screw, Hex Cap, 1/2-13 x 1.5 GR5

$6.99

$

In Stock, only 1 left!

0

14

Cub Cadet 711-0299

Pin, Clevis, .625 x 2.4

$36.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 711-0310

Pin, Clevis, .5 x 1.18

$10.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 711-04031

Turn Buckle, Hex Adjustment
(Superseded to 911-04031)

$

$

Not available

17

Cub Cadet 711-1622

Clevis, Check Chain

$

$

Not available

18

Cub Cadet 711-1643

Pin, Clevis, 3/4 x 2.5

$23.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 711-1728

Clevis, Chain
(Superseded to 911-1728A)

$45.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 711-1739

Pin, Hanger Rod Mounting
(Superseded to 911-1739)

$

$

Not available

21

Cub Cadet 712-3016

Nut, Hex Insert Lock, 5/8-11

$6.99

$

In Stock, Qty 13

0

22

Cub Cadet 712-3022

Nut, Hex Center Lock, 1/2-13

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 712-3048

Nut, Hex Jam, 1/2-13 GR5

$4.99

$

In Stock, Qty 20+

0

24

Cub Cadet 714-0142

Pin, Cotter, 3/16 x 1.5

$6.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 714-0143

Pin, Klik
(Superseded to 714-0143A)

$6.49

$

In Stock, Qty 7

0

26

Cub Cadet 714-0145

Pin, Internal Cotter

$4.99

$

In Stock, Qty 20+

0

27

Cub Cadet 715-0118

Pin, Spirol, 5/16 x 1.75

$12.99

$

In Stock, Qty 7

0

28

Cub Cadet 738-0744A

Screw, Shoulder, .625 x.36: 1/2-13

$11.99

$

In Stock, only 1 left!

0

29

Cub Cadet 741-0170

Bearing, Flange w/Flats
(Superseded to 941-0170)

$19.99

$

In Stock, Qty 14

0

30

Cub Cadet 747-3483

Rod, Front Hanger
(Superseded to 947-3483)

$112.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 747-3484A

Rod, Crank Lift

$32.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 750-0995

Spacer, .51 x .75 x 1.67

$16.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 736-0156

Washer, Flat, .635 x 1.125 x .09

$4.49

$

In Stock, Qty 12

0
