5252 E (54AE52DC710) - Cub Cadet Compact Tractor (SN: 000001 - 1J015G) Deck Assembly 60'' Parts Diagram

Compact Tractor

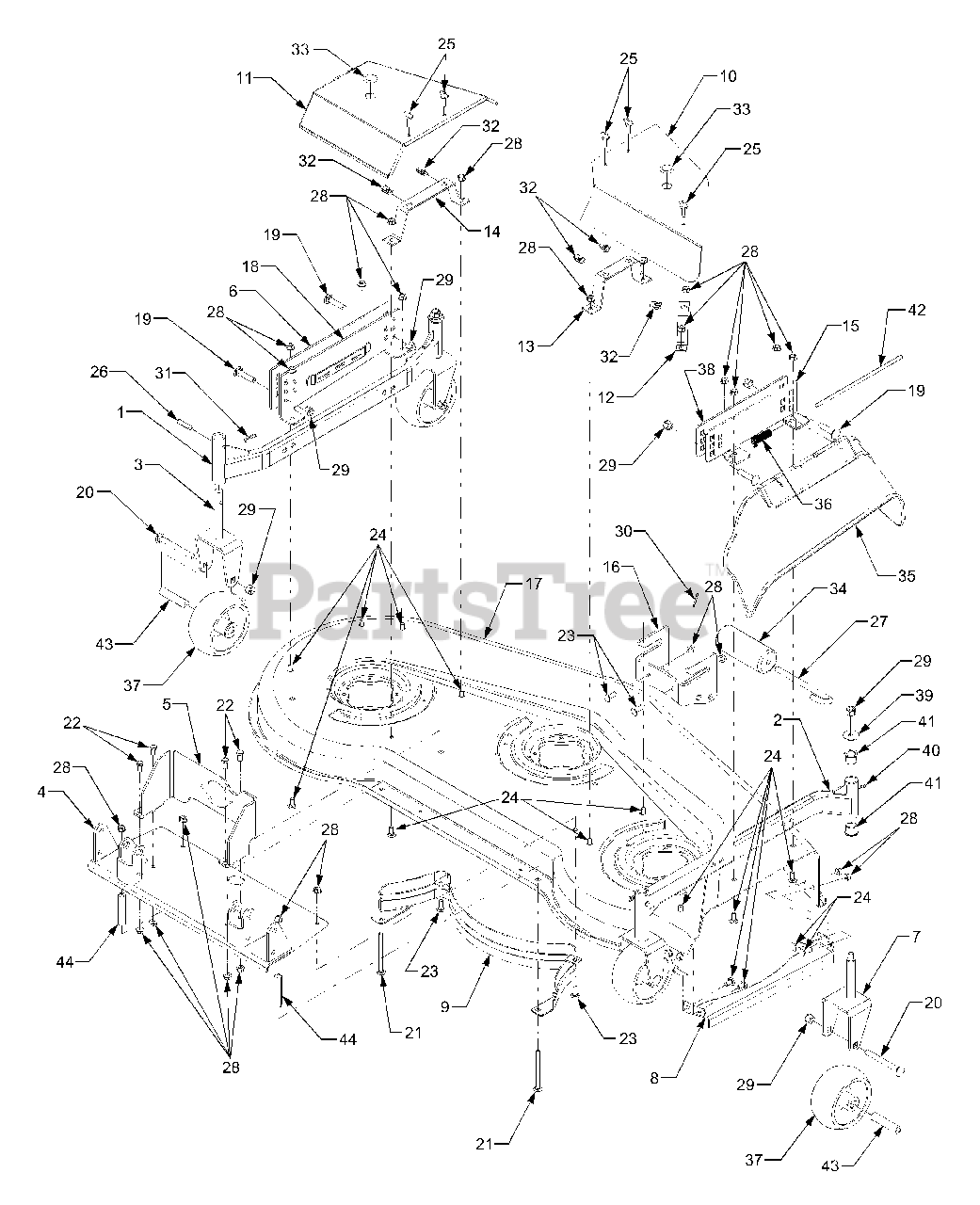

Deck Assembly 60'' Parts Diagram

  • Title

1

Cub Cadet 603-04121-0716

Axle, Caster, LH

$

$

Not available

2

Cub Cadet 603-04119-0716

Axle, Caster, RH

$

$

Not available

3

Cub Cadet 603-0783-0716

Wheel Yoke, Rear
(Superseded to 603-0783-0637)

$165.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 603-04129-0716

Bracket, Mounting

$

$

Not available

5

Cub Cadet 703-05192-0716

Bracket, Gear Box

$

$

Currently unavailable

6

Cub Cadet 703-05180-0716

Bracket, Caster LH Outer

$

$

Not available

7

Cub Cadet 603-04118-0716

Wheel Yoke, Front

$

$

Currently unavailable

8

Cub Cadet 703-3247-0716

Guard, Finger

$

$

Currently unavailable

9

Cub Cadet 703-3248-0716

Baffle, Rear Inner
(Superseded to 703-3248-0637)

$157.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-3272-0716

Cover, Belt (R.H.)

$

$

Not available

11

Cub Cadet 703-3273-0716

Cover, Belt (L.H.)

$

$

Not available

12

Cub Cadet 703-3274-0716

Bracket, Belt Cover Mtg.

$

$

Not available

13

Cub Cadet 703-3275-0716

Bracket, Belt Cover Mtg.
(Superseded to 703-3275-4021)

$

$

Not available

14

Cub Cadet 703-3276-0716

Bracket, Belt Cover Mtg. LH

$

$

Not available

15

Cub Cadet 703-05182-0716

Bracket, Caster RH Outer

$

$

Not available

16

Cub Cadet 703-3596-0716

Bracket, Front Roller

$133.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 703-3889A-0716

Deck
(Superseded to 903-3889B-0716)

$

$

Not available

17

Cub Cadet 777D05396

Label, 60"

Note: not shown

$

$

Not available

17

Cub Cadet 777S30503

Label, Safety

Note: not shown

$11.99

$

In Stock, only 3 left!

0

17

Cub Cadet 777S30015

Label, Danger L.H. Side

Note: not shown

$8.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 603-04078

Bracket, Caster LH Inner

Variations

Cub Cadet 603-04078-0637

(LH) INNER CASTER BRACKET (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 603-04078-0716

(LH) INNER CASTER BRACKET - CUB YELLOW-99 (0716)

$

$

Not available

$

$

19

Cub Cadet 710-04191

Screw, Carriage 1/2-13 x 2.0 GR5

$3.49

$

In Stock, only 2 left!

0

20

Cub Cadet 710-1638

Screw, Carriage 1/2-13 x 4.5 GR5

$10.99

$

In Stock, Qty 10

0

21

Cub Cadet 710-1649

Screw, Carriage 3/8-16 x 4.50 GR5

$17.99

$

In Stock, only 2 left!

0

22

Cub Cadet 710-3001

Screw, Hex Cap Lock 3/8-16 x .88 GR5

$7.49

$

In Stock, Qty 9

0

23

Cub Cadet 710-3168

Carriage, Bolt 3/8-16 x 1.0

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 710-3178

Carriage, Bolt 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 710-3232

Screw, Thumb Adjust 5/16-18 x 1

$9.99

$

In Stock, only 2 left!

0

26

Cub Cadet 711-0415

Pin, Clevis, 3/8 x 1.75

$4.99

$

In Stock, Qty 20+

0

27

Cub Cadet 711-3314

Pin, Roller 1/2 x 7.31
(Superseded to 711-3314A)

$25.99

$

In Stock, Qty 11

0

28

Cub Cadet 712-0431

Nut, Flange Lock 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

29

Cub Cadet 712-3083

Nut, Hex Nylon Lock 1/2-13 GR8

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 714-0115

Pin, Cotter 1/8 x 1.0

$3.99

$

In Stock, only 2 left!

0

31

Cub Cadet 714-0145

Pin, Internal Cotter

$4.99

$

In Stock, Qty 20+

0

32

Cub Cadet 726-0211

Nut, "U" 5/16-18

$4.49

$

In Stock, only 1 left!

0

33

Cub Cadet 726-3045

Plug, Button
(Superseded to 726-3045A)

$4.99

$

In Stock, Qty 6

0

34

Cub Cadet 731-3005

Roller, Front

$28.99

$

In Stock, Qty 20+

0

35

Cub Cadet 731-3257

Deflector, Chute

$83.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 777S30145

Label, Danger
(Superseded to 977S30145)

Note: not shown

$10.99

$

In Stock, only 1 left!

0

36

Cub Cadet 732-0939

Spring, Torsion

$12.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 734-3195

Caster, Wheel w/Bearings
(Superseded to 734-3195A)

$125.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 741-3090

Bearing, Flange

Note: not shown

$17.99

$

In Stock, Qty 5

0

38

Cub Cadet 703-05181

Bracket, Caster RH Inner

Variations

Cub Cadet 703-05181-0637

BRACKET-RH CASTER INNER - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 703-05181-0716

USE 703-05181-0637 BRACKET-RH - CUB YELLOW-99 (0716)

$

$

Not available

$

$

39

Cub Cadet 736-0208

Washer, Flat, .51 x 1.5 x .07

$4.49

$

In Stock, Qty 9

0

40

Cub Cadet 737-3000

Fitting, Lube
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

41

Cub Cadet 741-0339

Bearing, Flange, .754 ID
(Superseded to 941-0339)

$12.99

$

In Stock, Qty 20+

0

42

Cub Cadet 747-3384

Rod, Deflector Chute

$27.99

$

In Stock, only 1 left!

0

43

Cub Cadet 750-3222

Axle, Caster Wheel

$27.99

$

In Stock, Qty 6

0

44

Cub Cadet 750-3235

Spacer, .505 x .75 x 3.31Lg.

$12.99

$

Usually ships in 3-6 days

0
