5252 E (54AE52DC710) - Cub Cadet Compact Tractor (SN: 000001 - 1J015G) Blower Housing And Baffles Parts Diagram

Compact Tractor

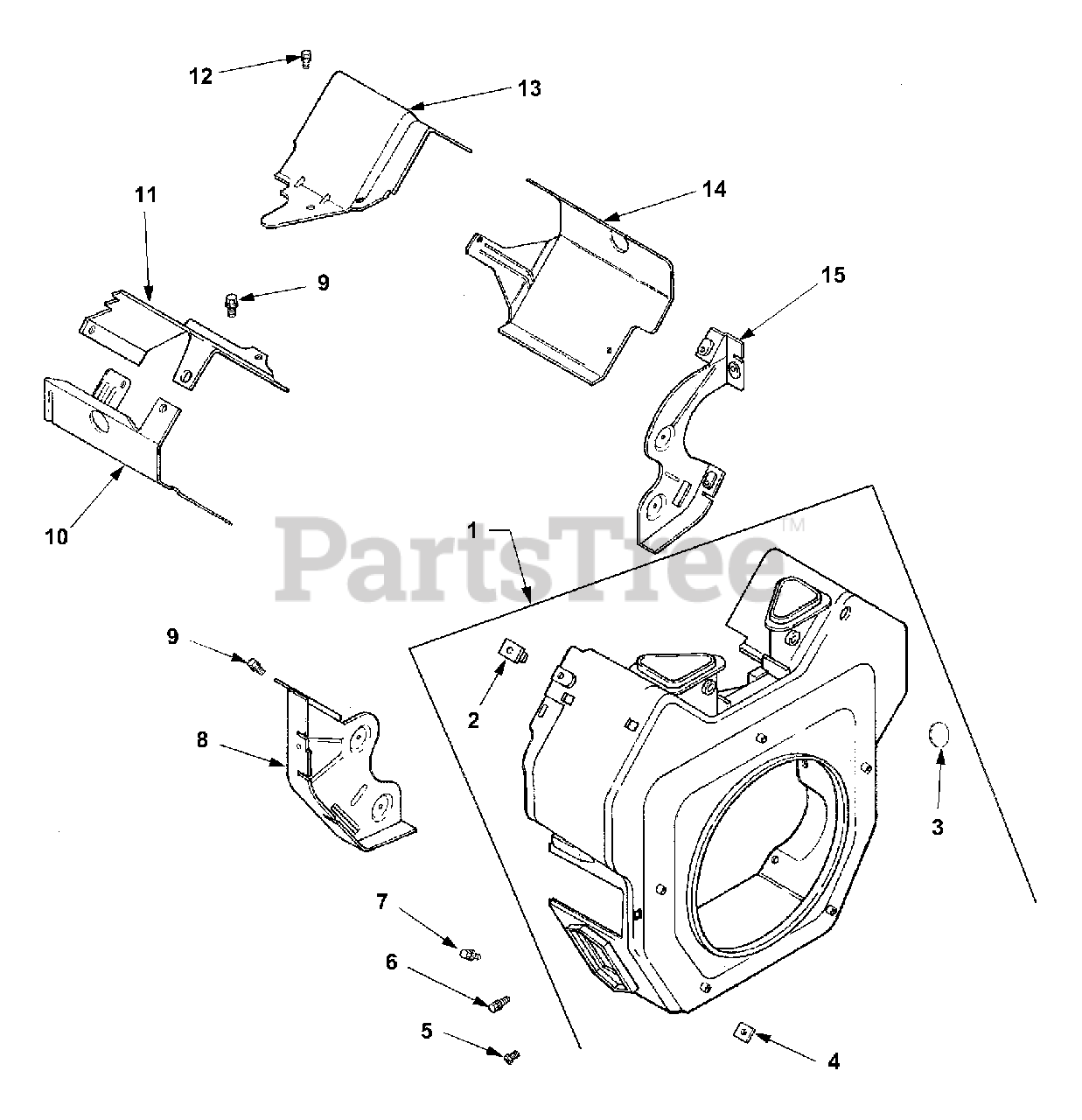

Blower Housing And Baffles Parts Diagram

  • Title

1

Cub Cadet KH-24-027-175-S

Housing, Blower
(Superseded to KH-24-027-477-S)

Note: (Incl. Ref #2-4)

$111.99

$

In Stock, only 1 left!

0

2

Cub Cadet KH-24-100-02

Nut, Plastic

$

$

Not available

3

Cub Cadet KH-25-139-16

Plug, Button, 9/16

$

$

Not available

4

Cub Cadet KH-24-100-01

Nut, Plastic
(Superseded to KH-25-100-37-S)

$2.49

$

In Stock, Qty 13

0

5

Cub Cadet KH-M-551016-S

Screw, Hex Flange, M5 x 0.8 x 16

$2.49

$

In Stock, only 2 left!

0

6

Cub Cadet KH-M-545016-S

Screw, Hex Flange, M5 x 0.8 x 16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-M-545020-S

Screw, Hex Flange, M5 x 0.8 x 20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 6

0

8

Cub Cadet KH-24-146-17-S

Plate, Backing - #2 Side

$25.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-M-645016-S

Screw, Hex Flange, M6 x 1.0 x 16

$3.99

$

In Stock, Qty 15

0

10

Cub Cadet KH-24-063-20

Baffle, Cylinder Barrel - #2 Side
(Superseded to KH-24-063-88-S)

$28.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-24-063-17

Baffle, Valley - #2 Side
(Superseded to KH-24-063-94-S)

$9.49

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-M-0545010

Screw, Hex Flange, M5 x 0.8 x 10

$

$

Not available

13

Cub Cadet KH-24-063-59-S

Baffle, Valley - #1 Side
(Superseded to KH-24-063-93-S)

$

$

Not available

14

Cub Cadet KH-24-063-58-S

Baffle, Cylinder Barrel - #1 Side
(Superseded to KH-24-063-85-S)

$17.99

$

In Stock, only 1 left!

0

15

Cub Cadet KH-24-146-20-S

Plate, Backing - #1 Side

$

$

Not available
