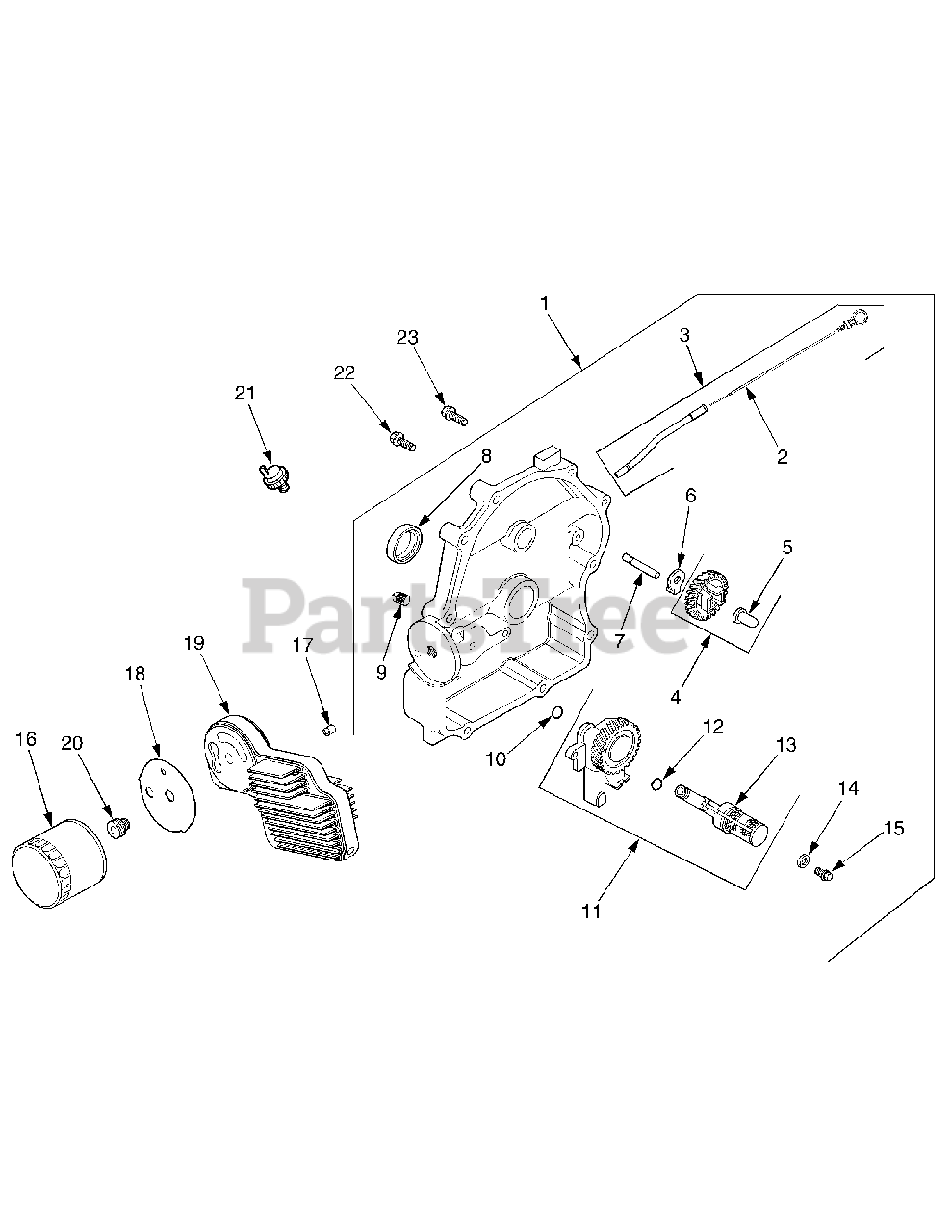

5252 (54AE52D-710) - Cub Cadet Compact Tractor Oil Pan Lubrication Parts Diagram

Compact Tractor

Oil Pan Lubrication Parts Diagram

  • Title
1

Cub Cadet KH-24-009-153-S

Plate, Closure Assembly (Includes 2-15)

$517.99

$

Usually ships in 2-5 days

0

$12.99

$

In Stock, Qty 6

0

3

Cub Cadet KH-24-755-121-S

Tube, Dipstick (Includes 2)

$35.99

$

In Stock, Qty 7

0

4

Cub Cadet KH-24-043-12

Kit, Governor Gear (Includes 5) ..

$

$

Not available

5

Cub Cadet KH-12-380-01

Pin, Governor Regulating

$

$

Not available

6

$2.49

$

In Stock, Qty 20+

0

7

Cub Cadet KH-12-144-02

Shaft, Governor Gear

$

$

Not available

8

Cub Cadet KH-52-032-08

Seal, Oil (PTO End)
(Superseded to KH-25-032-06-S)

$10.99

$

In Stock, Qty 20+

0

9

Cub Cadet KH-25-139-60-S

Plug, Pipe 1/8"

$3.49

$

In Stock, only 2 left!

0

$

$

Not available

11

Cub Cadet KH-24-393-37-S

Oil Pump Assembly (Includes 12,13)
(Superseded to KH-24-393-53-S)

$

$

Not available

12

Cub Cadet KH-24-153-01

O-Ring, Oil Pick-Up

$

$

Not available

13

Cub Cadet KH-24-381-04

Pick-Up, Oil

$

$

Not available

14

Cub Cadet KH-M-0631005

Washer, Plain
(Superseded to KH-M-631005)

$

$

Not available

15

Cub Cadet KH-M-0645025

Screw, Hex Flange M6 x 1 x 25 ..
(Superseded to KH-M-645025-S)

$2.49

$

In Stock, only 3 left!

0

16

Cub Cadet KH-12-050-08

Filter, Oil
(Superseded to KH-12-050-01-S)

$13.99

$

In Stock, Qty 20+

0

17

Cub Cadet KH-24-380-13-S

Pin, Locating
(Superseded to KH-24-380-16-S)

$4.49

$

In Stock, only 3 left!

0

18

Cub Cadet KH-24-041-29

Gasket, Adapter
(Superseded to KH-24-041-88-S)

$5.49

$

In Stock, Qty 8

0

19

$

$

Not available

20

Cub Cadet KH-24-136-05-S

Nipple, Oil Filter
(Superseded to KH-24-136-08-S)

$

$

Not available

21

Cub Cadet KH-25-099-24

Switch, Pressure
(Superseded to KH-25-099-27-S)

$15.99

$

In Stock, Qty 5

0

22

Cub Cadet KH-24-086-16

Screw, Hex Flange M8 x 1.25 x 45
(Superseded to KH-24-086-17-S)

$2.49

$

In Stock, Qty 5

0

23

Cub Cadet KH-24-100-10-S

Nut, Hex Flange, M8 x 1.25

$4.49

$

Usually ships in 2-5 days

0
