5252 (54AE52D-710) - Cub Cadet Compact Tractor Lift Valve Parts Diagram

Compact Tractor

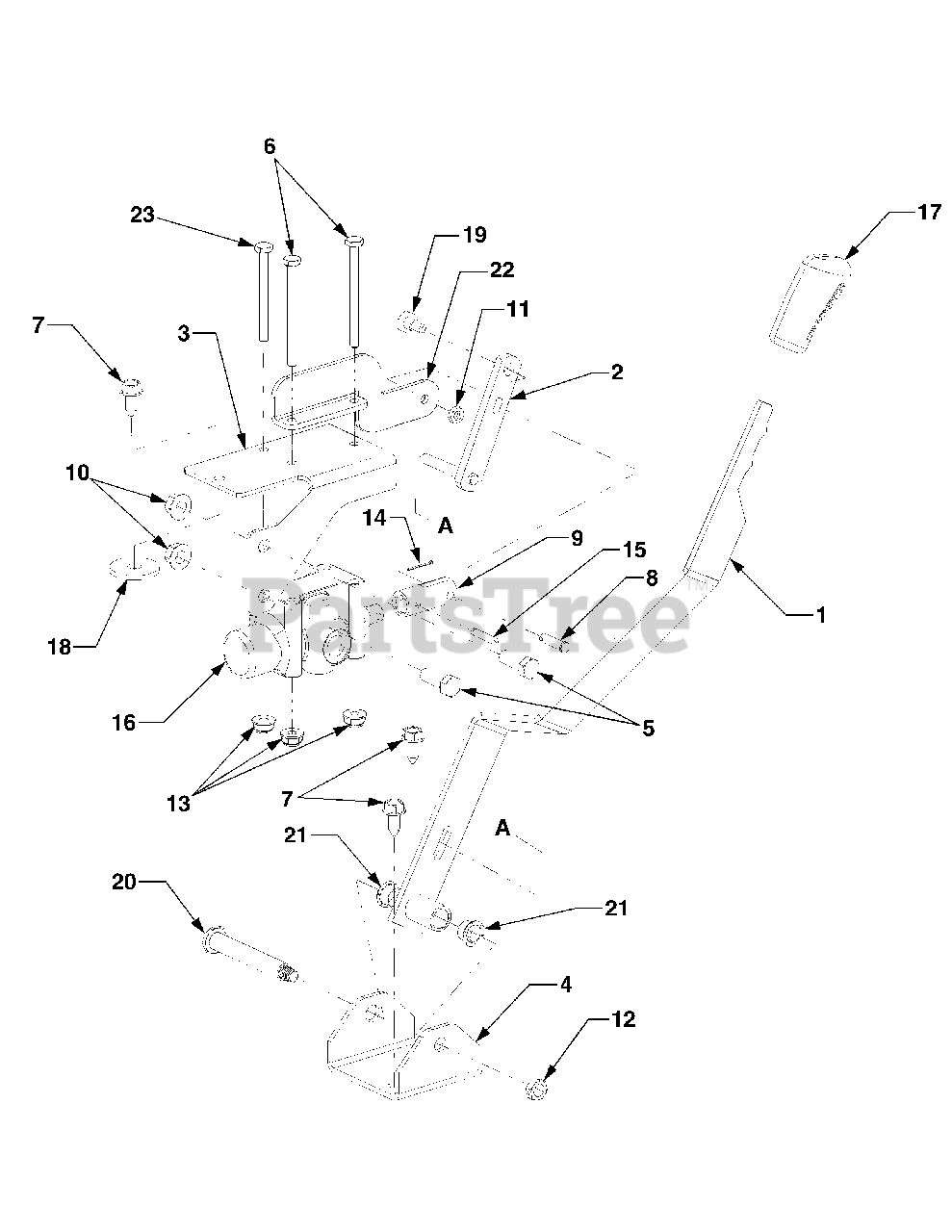

Lift Valve Parts Diagram

  • Title
1

Cub Cadet 603-04032

Handle, Lift
(Superseded to 903-04032)

$

$

Not available

2

Cub Cadet 603-04033

Link, Valve
(Superseded to 903-04033)

$

$

Not available

3

Cub Cadet 703-05090-0637

Bracket, Lift Valve Mounting

$

$

Not available

4

Cub Cadet 703-05038

Bracket, Handle Pivot

Variations

Cub Cadet 703-05038-0637

BRACKET, HANDLE PIVOT (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

5

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 x 1.0 GR5

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-04370

Screw, Hex Cap 1/4-20 x 3.0 GR5

$4.49

$

In Stock, Qty 11

0

7

Cub Cadet 710-1260A

Screw, Hex Wash, Hd Tapp 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 711-04214

Pin, Clevis, .25 x .9375

$6.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 711-1614

Link, Valve

$

$

Not available

10

Cub Cadet 712-04065

Nut, Hex Flange Nylon Lock, 3/8-16 GRF

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-0298

Nut, Hex Jam, 1/4-20
(Superseded to 912-0298)

$6.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 712-0266

Nut, Hex Ctr Lock Jam, 3/8-16 ..
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04064

Nut, Hex Flange Nylon Lock 14-20 GRF

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 714-0127

Pin, Cotter, 1/16 x .75

$

$

Not available

15

Cub Cadet 715-0120

Pin, Spirol, 3/16 x 1.0

$10.99

$

In Stock, only 1 left!

0

16

Cub Cadet 718-3130

Valve, Hydaulic Lift

$557.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 731-3321

Grip, Handle

$21.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 736-0258

Washer, Flat, .385 x 1.0 x .135

$4.49

$

In Stock, only 3 left!

0

19

Cub Cadet 738-0137A

Screw, Shoulder, .34 x .285

$10.99

$

In Stock, Qty 10

0

20

Cub Cadet 738-0215A

Screw, Shoulder, .498 x 2.99

$9.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 741-0491

Bearing, Nylon Flange .5 ID

$5.49

$

In Stock, only 3 left!

0

22

Cub Cadet 703-05545-0637

Link, Lift Valve Mounting

$

$

Not available

23

Cub Cadet 710-0564

Screw, Hex Cap, 1/4-20 x 2.75 GR5

$6.99

$

In Stock, only 3 left!

0
