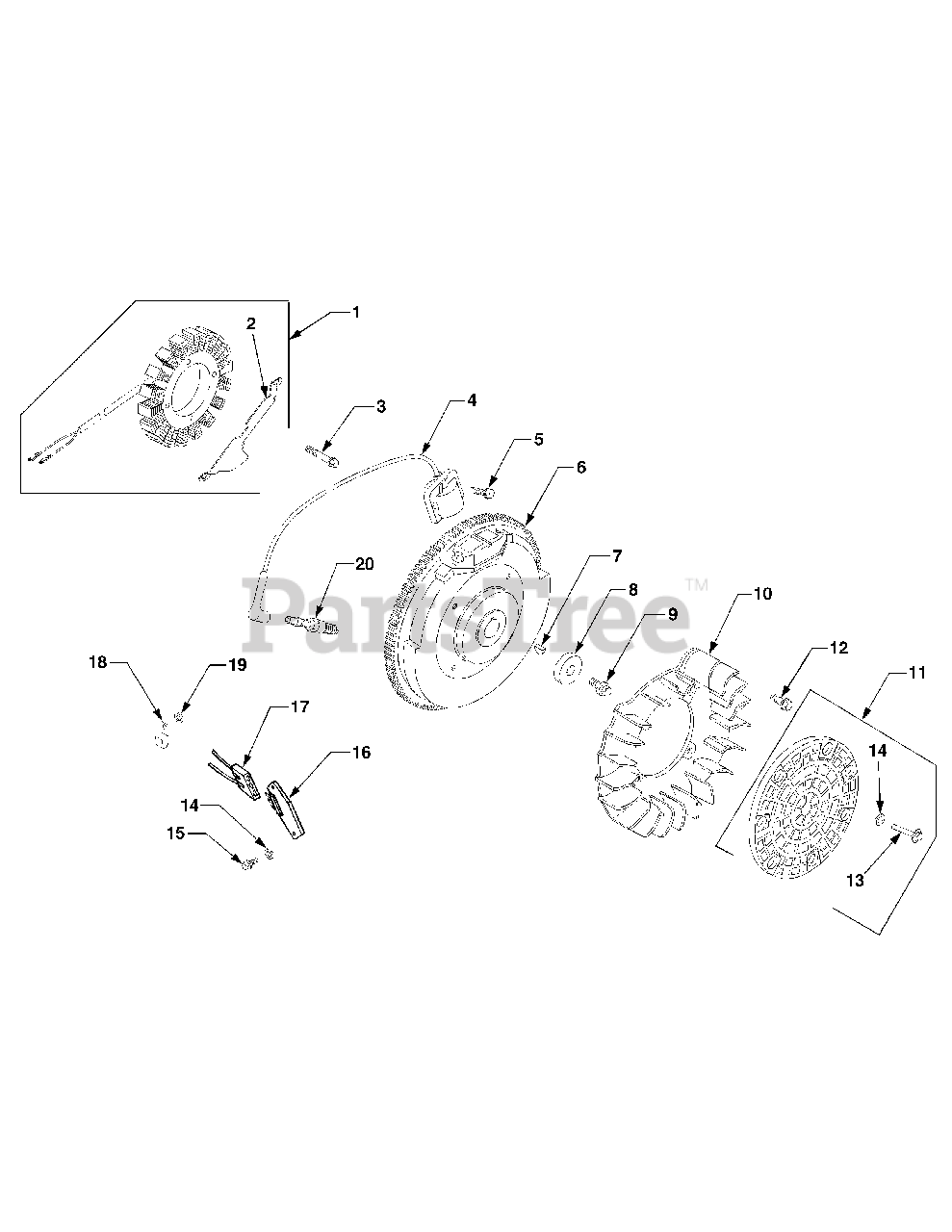

5252 (54AE52D-710) - Cub Cadet Compact Tractor Ignition Electrical Parts Diagram

Compact Tractor

Ignition Electrical Parts Diagram

  • Title
1

Cub Cadet KH-54-755-09-S

Kit, 15 Amp Stator (Includes Ref. 2)
(Superseded to KH-237878)

$

$

Not available

2

Cub Cadet KH-24-126-139-S

Bracket, Stator

$15.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-M-548025-S

Screw, Hex Cap M5 x 0.8 x 25 .
(Superseded to KH-25-086-402-S)

$2.49

$

In Stock, only 2 left!

0

4

Cub Cadet KH-24-584-01

Module, Ignition
(Superseded to KH-24-584-45-S)

$110.99

$

Usually ships in 3-6 days

0

5

Cub Cadet KH-M-545020-S

Screw, Hex Flange M5 x 0.8 x 20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 6

0

6

Cub Cadet KH-24-025-04

Flywheel
(Superseded to KH-24-025-55-S)

$

$

Not available

$

$

Not available

8

Cub Cadet KH-12-468-03

Washer, Plain 3/8"

$

$

Not available

9

Cub Cadet KH-12-086-14

Screw, Hex Flange M10 x 1.5 x 46
(Superseded to KH-25-086-361-S)

$3.99

$

In Stock, Qty 12

0

10

Cub Cadet KH-24-157-07-S

Fan
(Superseded to KH-24-755-253-S)

$46.99

$

In Stock, Qty 5

0

11

Cub Cadet KH-54-755-15

Kit,Grass Screen (Includes Ref. Nos. 13-15)

$

$

Not available

12

Cub Cadet KH-25-086-47

Bolt, Shoulder, M6 x 1.0 x 16 ...

$

$

Not available

13

Cub Cadet KH-25-086-117-S

Screw, Hex Cap M4 x 0.7 x 25 .

$2.99

$

In Stock, only 4 left!

0

14

Cub Cadet KH-X-25-92

Washer, Plain 3/16"

$

$

Not available

15

Cub Cadet KH-24-086-18

Screw, Phillips Hd. 11-16 x 7/8"

$

$

Not available

16

Cub Cadet KH-25-403-05-S

Rectifier-regulator 15 Amp
(Superseded to KH-25-403-39-S)

$85.99

$

In Stock, only 4 left!

0

17

Cub Cadet KH-236602-S

Connector (3 Contact)
(Superseded to KH-25-155-41-S)

$24.99

$

In Stock, only 1 left!

0

18

Cub Cadet KH-235173

Clip, Cable

$

$

Not available

19

Cub Cadet KH-X-25-63

Washer, Plain 1/4"

$

$

Not available

20

Cub Cadet 759-3336

Spark Plug
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

Cub Cadet KH-24-176-08

Harness, Wire
(Superseded to KH-24-176-171-S)

$117.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-126-137-S

Bracket, Ground Strap
(Superseded to KH-24-518-12-S)

$4.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-086-91-S

Screw, Tapping, #10-16 x .5

$3.49

$

Usually ships in 2-5 days

0

$2.49

$

Usually ships in 2-5 days

0
