5252 (54AE52D-710) - Cub Cadet Compact Tractor Hood, Grill and Side Panels (Mfg. Code 1D015G and after) Parts Diagram

Compact Tractor

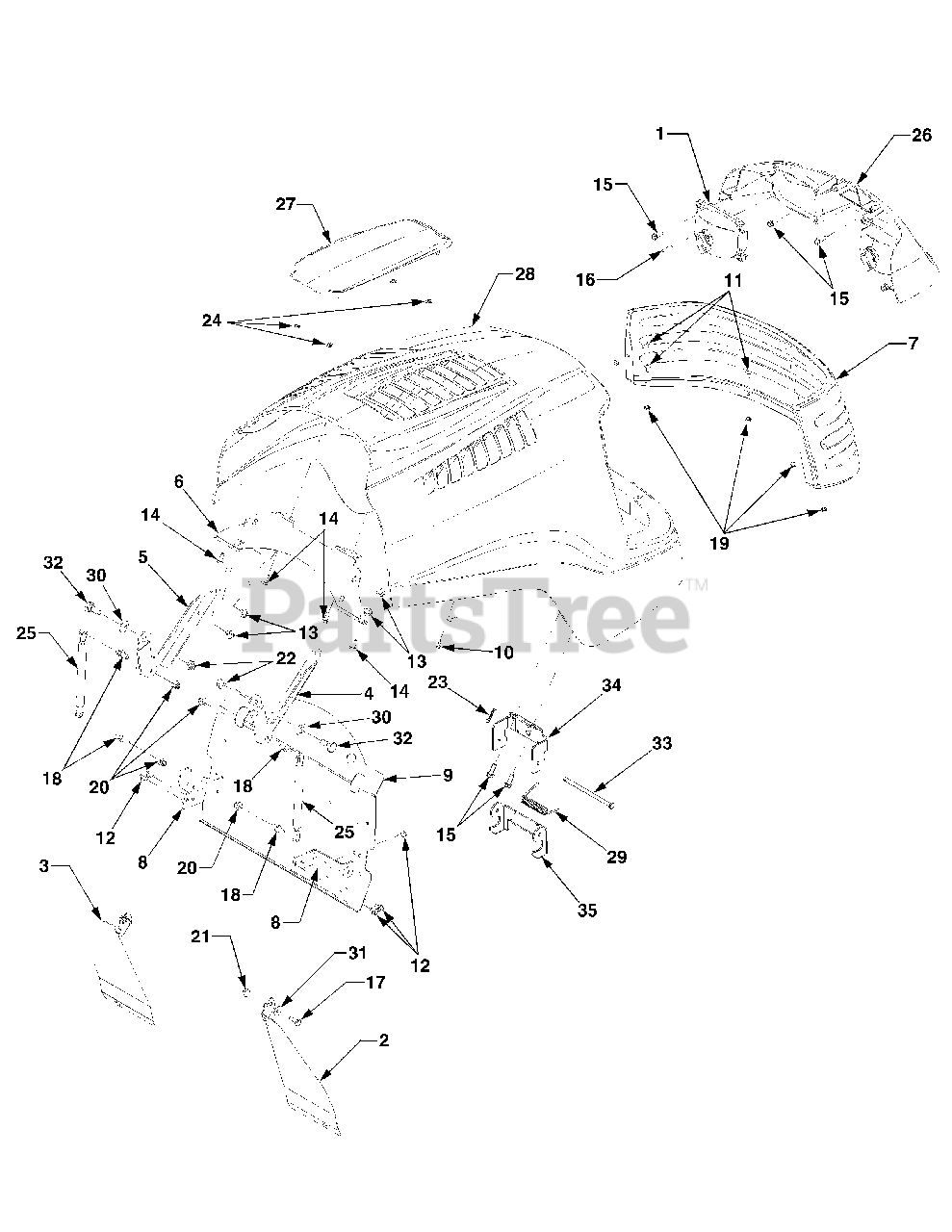

Hood, Grill and Side Panels (Mfg. Code 1D015G and after) Parts Diagram

  • Title

1

Cub Cadet 625-04004

Headlight Assembly
(Superseded to 925-04004)

$109.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 725-04084

Bulb Assembly, Headlight
(Superseded to 925-05055)

$47.99

$

In Stock, only 1 left!

0

2

Cub Cadet 703-05143-0637

Shield, Running Board LH

$

$

Not available

3

Cub Cadet 703-05145-0637

Shield, Running Board RH

$

$

Not available

4

Cub Cadet 703-05652-0637

Bracket, Hinge, RH

$36.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-05653-0637

Bracket, Hinge, LH

$36.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-05655-0637

Bracket, Hood Mounting
(Superseded to 703-05655A-0637)

$57.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-3394

Screen, Intake
(Superseded to 703-3394-0637)

Variations

Cub Cadet 703-3394-0637

SCREEN-INTAKE - POWDER BLACK (0637)

$

$

Not available

$

$

8

Cub Cadet 703-3764-0637

Bracket, Panel Mtg.

$

$

Currently unavailable

9

Cub Cadet 703-3765-0637

Shield, Lower Heat

$

$

Currently unavailable

10

Cub Cadet 710-04164

Screw, Hex Wash Hd, #8-18 x .375

$4.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-0473

Screw, Truss Hd, 10-24 x .5

$4.49

$

In Stock, only 2 left!

0

12

Cub Cadet 710-0599

Screw, Hex Wash Hd Tapp 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0607

Screw, Hex Wash Hd Tapp 5/16-18 x .

$6.99

$

In Stock, Qty 11

0

14

Cub Cadet 710-0751

Screw, Hex Cap 1/4-20 x .62 GR5

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 710-0895

Screw, Hex Wash. Hd. 1/4-20 x .75

$6.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 710-1220

Screw, Truss Phil. Hd. 12-16 x .75

$4.99

$

In Stock, only 4 left!

0

17

Cub Cadet 710-3015

Screw, Hex Cap, 1/4-20 x .75 GR5

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 710-3170

Stud, Cylinder, 5/16-18 Thrd

$13.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 712-0272

Nut, Hex Sems, 10-24

$3.99

$

In Stock, only 1 left!

0

20

Cub Cadet 712-04063

Nut, Hex Insert Flange Lock, 5/16-18

$3.99

$

In Stock, only 4 left!

0

21

Cub Cadet 712-04064

Nut, Hex Insert Flange Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 712-04065

Nut, Hex Insert Flange Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 726-0233

Nut, Push, .25 ID

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 727-3194

Cylinder, Gas Spring

$120.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 731-04211

Bezel, Headlight
(Superseded to 931-04211)

$

$

Not available

27

Cub Cadet 731-05161

Cover, Hood
(Superseded to 931-05161)

$

$

Not available

28

Cub Cadet 759-04210

Hood, Service Kit

Note: (contains 931-06889, 726-0233, 710-1242,721-04162 and installation instructions)

$

$

Not available

28

Cub Cadet 931-06889

Hood

Note: Replaces 731-05301

$

$

Currently unavailable

28

Cub Cadet 726-0233

Push Nut .25 x .50

Note: not shown

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 710-1242

Screw, Hi Low 5/16-14 x .75

Note: not shown

$4.99

$

In Stock, Qty 19

0

28

Cub Cadet 721-04162

Foam Strip

Note: not shown

$

$

Not available

28

Cub Cadet 777D07558

Graphic, Hood RH

Note: not shown

$38.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 777D07559

Graphic, Hood LH

Note: not shown

$

$

Not available

28

Cub Cadet 777D07727

Graphic, Model 5252 LH

Note: not shown

$

$

Not available

28

Cub Cadet 777D07728

Graphic, Model 5252 RH

Note: not shown

$

$

Not available

29

Cub Cadet 732-04281A

Spring, Torsion

$8.49

$

In Stock, Qty 12

0

30

Cub Cadet 736-0272

Washer, Flat, .51 x 1.0 x .060

$4.99

$

In Stock, Qty 20+

0

31

Cub Cadet 736-3090

Washer, Flat, .26 x .72 x .060

$6.99

$

In Stock, Qty 11

0

32

Cub Cadet 738-0380

Screw, Shoulder, .5 x .27 Lg 3/8-16

$7.99

$

In Stock, only 1 left!

0

33

Cub Cadet 747-1323A

Rod, .25 x 4.55

$11.99

$

In Stock, only 3 left!

0

34

Cub Cadet 783-04714

Plate, Latch
(Superseded to 783-04714A)

$19.99

$

In Stock, Qty 6

0

35

Cub Cadet 783-4717A

Bracket, Latch Pivot
(Superseded to 783-04717A)

$

$

Not available
