5252 (54AE52D-710) - Cub Cadet Compact Tractor Cylinder Head, Valves and Breather Parts Diagram

Compact Tractor

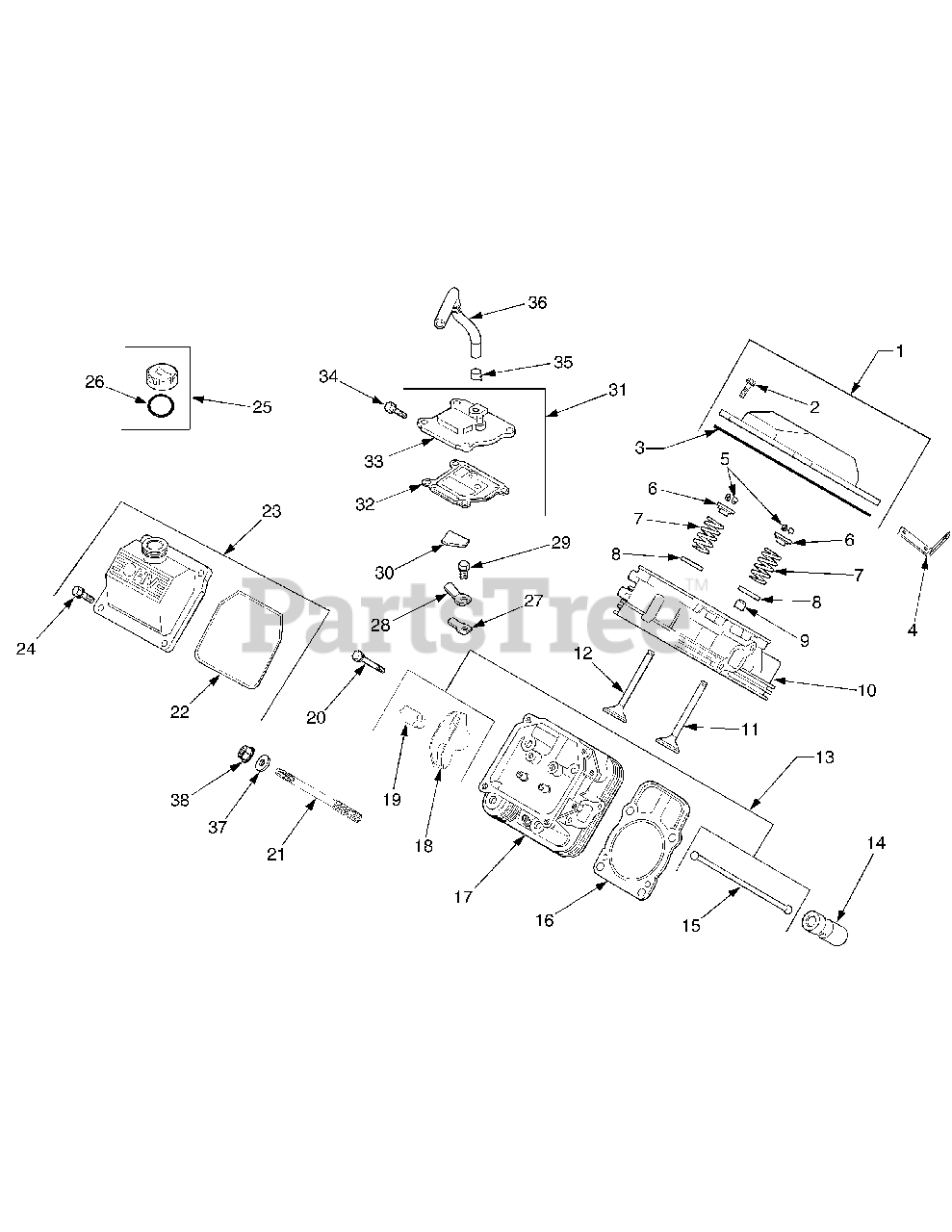

Cylinder Head, Valves and Breather Parts Diagram

  • Title

1

Cub Cadet KH-24-755-74

Kit, Valve Cover (Includes 2-3) ...
(Superseded to KH-24-755-141-S)

$35.99

$

In Stock, only 2 left!

0

2

Cub Cadet KH-M-0651030

Screw, Hx. Flng, M6 x 1.0 x 30 ...

$

$

Not available

3

Cub Cadet KH-24-153-28-S

O-Ring, Valve Cover
(Superseded to KH-24-153-30-S)

$11.99

$

In Stock, only 3 left!

0

4

Cub Cadet KH-24-445-01

Strap, Lifting
(Superseded to KH-25-445-03-S)

$

$

Not available

5

Cub Cadet KH-12-755-03

Kit, Retainer

$5.99

$

In Stock, only 2 left!

0

6

Cub Cadet KH-12-173-01

Cap, Valve Spring
(Superseded to KH-25-173-28-S)

$8.49

$

In Stock, Qty 5

0

7

Cub Cadet KH-24-089-02

Spring, Valve

$

$

Not available

8

Cub Cadet KH-235011-S

Retainer, Spring

$6.49

$

In Stock, only 2 left!

0

9

Cub Cadet KH-66-032-05-S

Seal, Valve Stem
(Superseded to KH-25-032-14-S)

$11.99

$

In Stock, only 2 left!

0

10

Cub Cadet KH-24-318-65-S

Head Assembly, #1 Cylinder
(Superseded to KH-24-818-01-S)

$235.99

$

In Stock, only 2 left!

0

11

Cub Cadet KH-24-017-01

Valve, Intake (Std.)

$

$

Not available

11

Cub Cadet KH-24-017-02

Valve, Intake (.25mm)

$

$

Not available

12

Cub Cadet KH-24-016-01

Valve, Exhaust (Std.)
(Superseded to KH-32-016-01-S)

$15.99

$

In Stock, only 4 left!

0

12

Cub Cadet KH-24-016-02

Valve, Exhaust (.25mm)

$

$

Not available

13

Cub Cadet KH-24-755-66

Kit, Valve Train (Includes 15,18,19)

$

$

Not available

14

Cub Cadet KH-25-351-01

Lifter, Valve
(Superseded to KH-25-351-11-S)

$23.99

$

In Stock, only 4 left!

0

15

Cub Cadet KH-24-411-05

Rod, Push

$

$

Not available

16

Cub Cadet KH-24-841-03-S

Kit, Gasket, Cylinder Head
(Superseded to KH-24-841-04-S)

$45.99

$

In Stock, Qty 20+

0

17

Cub Cadet KH-24-318-66-S

Head Assembly, #2 Cylinder
(Superseded to KH-24-818-02-S)

$270.99

$

Usually ships in 3-6 days

0

18

Cub Cadet KH-25-186-01

Arm, Rocker

$

$

Not available

19

Cub Cadet KH-24-599-01

Pivot, Rocker Arm
(Superseded to KH-24-599-02-S)

$2.49

$

In Stock, Qty 8

0

20

Cub Cadet KH-66-086-07-S

Screw, Hex Flange M6 x 1 x 34 ..
(Superseded to KH-M-640034-S)

$2.49

$

In Stock, Qty 18

0

21

Cub Cadet KH-24-072-09-S

Stud, Cyl. Hd.

$6.49

$

In Stock, only 4 left!

0

22

Cub Cadet KH-24-153-28-S

O-Ring, Valve Cover
(Superseded to KH-24-153-30-S)

$11.99

$

In Stock, only 3 left!

0

23

Cub Cadet KH-24-755-140-S

Cover, Valve - Oil Fill (Includes 22 and 24)

$36.99

$

In Stock, only 1 left!

0

24

Cub Cadet KH-M-0651030

Screw, Hx. Flng, M6 x 1.0 x 30 ...

$

$

Not available

25

Cub Cadet KH-24-755-46

Cap Assembly, Oil Fill (Includes 26)

$

$

Not available

26

Cub Cadet KH-25-153-02-S

O-Ring

$2.49

$

In Stock, only 1 left!

0

27

Cub Cadet KH-24-402-03

Reed, Breather
(Superseded to KH-24-402-06-S)

$3.49

$

Usually ships in 3-6 days

0

28

Cub Cadet KH-66-018-04-S

Retainer, Breather Reed

$4.99

$

In Stock, Qty 6

0

29

Cub Cadet KH-M-0545010

Screw, Hex Flange M5 x 0.8 x 10

$

$

Not available

30

Cub Cadet KH-24-050-01

Filter, Breather
(Superseded to KH-24-050-11-S)

$2.49

$

Usually ships in 2-5 days

0

31

Cub Cadet KH-24-033-01

Kit, Breather (Includes 32, 33)

$

$

Not available

32

Cub Cadet KH-24-041-51-S

Gasket, Breather
(Superseded to KH-24-041-67-S)

$13.99

$

In Stock, Qty 9

0

33

Cub Cadet KH-24-096-86-S

Cover, Breather
(Superseded to KH-24-033-01)

$

$

Not available

34

Cub Cadet KH-M-645020-S

Screw, Hex Flange M6 x 1.0 x 20
(Superseded to KH-25-086-396-S)

$2.49

$

In Stock, only 1 left!

0

35

Cub Cadet KH-25-237-14-S

Clamp, Breather
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 2 left!

0

36

Cub Cadet KH-24-326-26-S

Hose, Breather
(Superseded to KH-24-326-89-S)

$9.99

$

In Stock, Qty 6

0

37

Cub Cadet KH-24-468-16-S

Washer, Flat, 8mm

$2.49

$

Usually ships in 2-5 days

0

38

Cub Cadet KH-24-100-10-S

Nut, Hex Flange, M8 x 1.25

$4.49

$

Usually ships in 2-5 days

0
