5250 - Lawn-Boy Walk-Behind Mower (SN: 900000001 - 999999999) (1959) MODEL C-60 ENGINE PARTS LIST-CARBURETOR Parts Diagram

Walk-Behind Mower

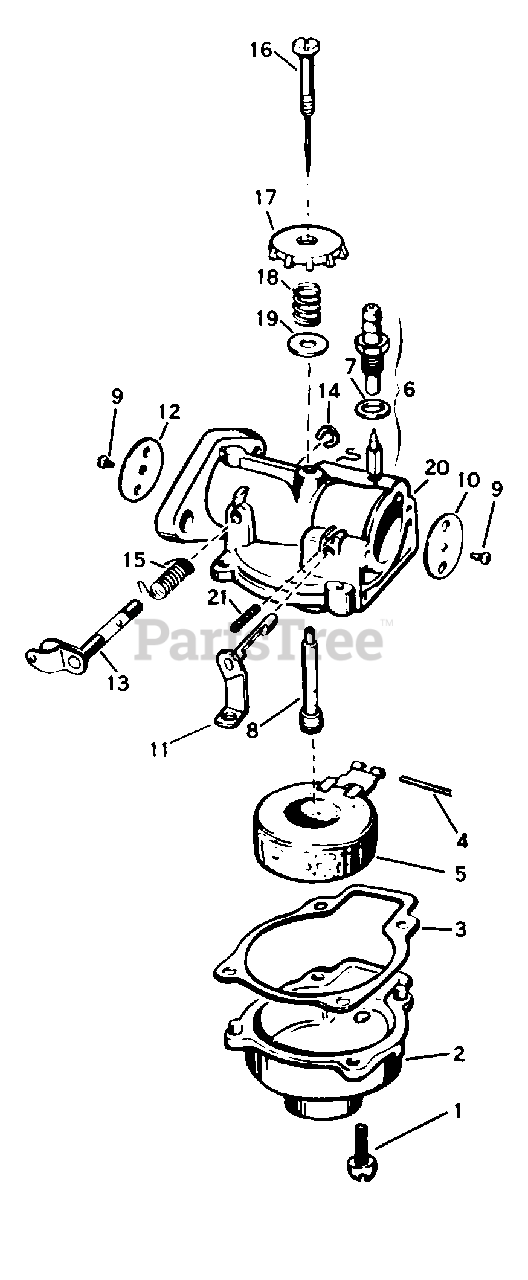

MODEL C-60 ENGINE PARTS LIST-CARBURETOR Parts Diagram

  • Title

1

Lawn-Boy 300181

Screw-Float Bowl to Carb.

$

$

Currently unavailable

2

Lawn-Boy 602712

Float Chamber

$

$

Not available

3

Lawn-Boy 602850

Gasket-Carburetor Body to Float Chamber
(Superseded to 98-1362)

Note: 677271 Carburetor Repair Kit

$3.49

$

In Stock, Qty 20+

0

4

Lawn-Boy 300096

Hinge Pin-Float Arm
(Superseded to 92-6389)

Note: 677271 Carburetor Repair Kit

$5.99

$

In Stock, only 1 left!

0

5

Lawn-Boy 375919

Float and Arm Assembly
(Superseded to 678113)

$

$

Not available

6

Lawn-Boy 486218

Float Valve and Seat Assembly
(Superseded to 678736)

Note: 677271 Carburetor Repair Kit

$

$

Not available

7

Lawn-Boy 301996

Washer-Float Valve Seat

$3.49

$

Usually ships in 3-6 days

0

8

Lawn-Boy 601096

Nozzle

Note: 677271 Carburetor Repair Kit

$

$

Not available

9

Lawn-Boy 53X220

Screw-Choke and Throttle Disc

Note: 677271 Carburetor Repair Kit

$

$

Currently unavailable

10

Lawn-Boy 603115

Disc-Choke

$

$

Not available

11

Lawn-Boy 677678

Choke Shaft-Lever Assembly

$

$

Not available

12

Lawn-Boy 602290

Disc-Throttle

$

$

Not available

13

Lawn-Boy 677637

Throttle Shaft and Ring Assy.

$

$

Not available

14

Lawn-Boy 603292

Grip Ring

$

$

Not available

15

Lawn-Boy 602685

Spring-Throttle Shaft

Note: 677271 Carburetor Repair Kit

$

$

Not available

16

Lawn-Boy 677039

Needle Assembly

Note: 677271 Carburetor Repair Kit

$

$

Not available

17

Lawn-Boy 602495

Adjusting Knob-Needle Valve

$7.99

$

In Stock, only 1 left!

0

18

Lawn-Boy 602293

Spring-Needle Adjustment

$

$

Currently unavailable

19

Lawn-Boy 306561

Washer-Needle Adjustment

$

$

Currently unavailable

20

Lawn-Boy 677697

Carburetor Body and Spring Assy.

$

$

Not available

21

Lawn-Boy 603491

Spring-Choke Lever

$

$

Currently unavailable
