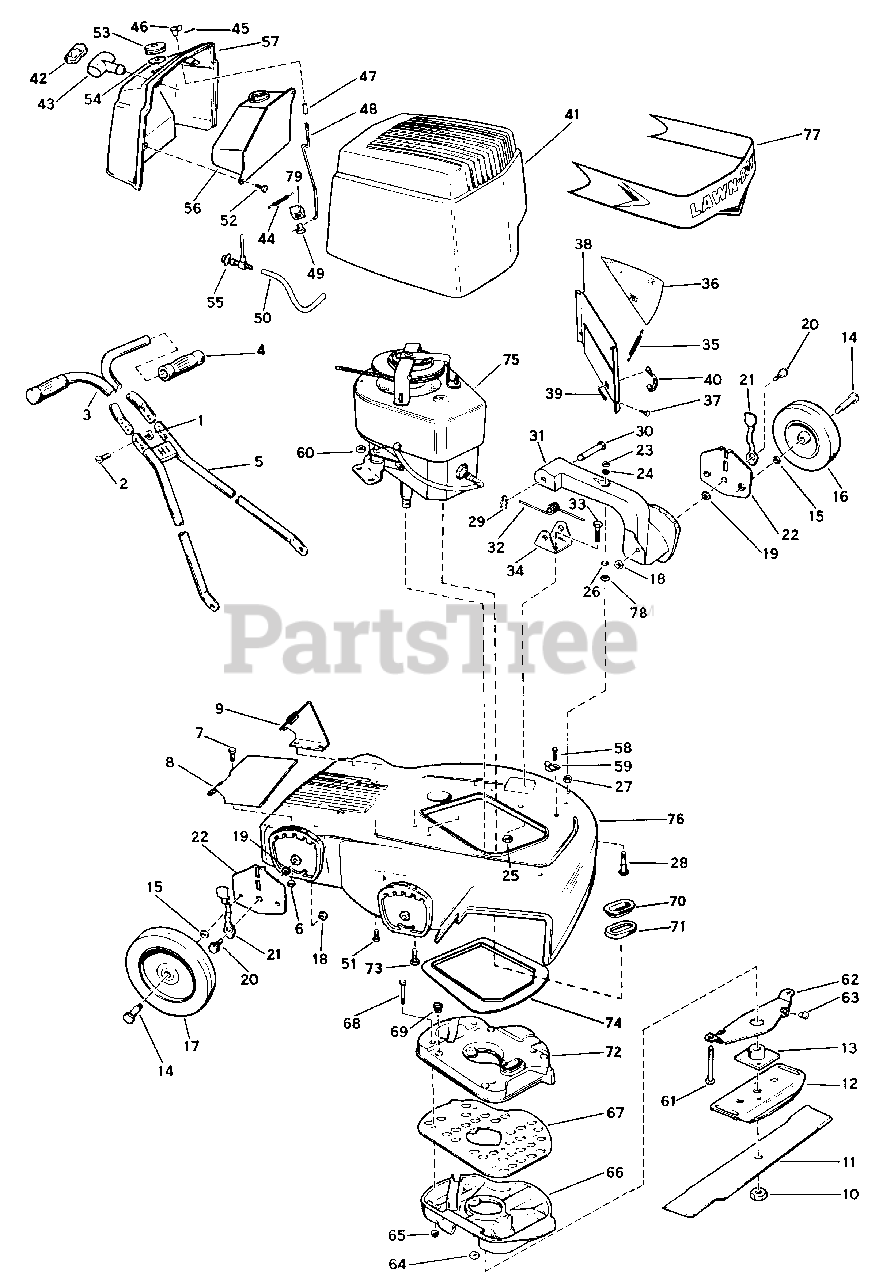

5250 - Lawn-Boy Walk-Behind Mower (SN: 900000001 - 999999999) (1959) MODEL 5250 QUIETFLITE MOWER PARTS LIST Parts Diagram

Walk-Behind Mower

MODEL 5250 QUIETFLITE MOWER PARTS LIST Parts Diagram

  • Title

1

Lawn-Boy 602201

Nut-Nylok, Handle

$

$

Not available

2

Lawn-Boy 602025

Screw-Handle

$

$

Not available

3

Lawn-Boy 677354

Handle Assembly-Top

$

$

Not available

4

Lawn-Boy 603025

Grip-Handle

$

$

Not available

5

Lawn-Boy 677355

Handle Assembly-Bottom

$

$

Not available

6

Lawn-Boy 602830

Nut-Nylok, Handle Bracket

$

$

Not available

7

Lawn-Boy 602693

Screw-Handle Bracket

$

$

Not available

8

Lawn-Boy 677679

Handle Bracket Assembly Right

$

$

Not available

9

Lawn-Boy 677117

Handle Bracket Assembly Left

$

$

Not available

10

Lawn-Boy 603164

Nut-Blade, Nylok
(Superseded to 121-3611)

$5.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 603409

Blade, 19"
(Superseded to 603409-03)

$33.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 603541

Blade Stiffener

$

$

Not available

13

Lawn-Boy 677525

Collar and Plate Assembly

$23.99

$

In Stock, only 1 left!

0

14

Lawn-Boy 603441

Bolt-Shoulder Wheel

$7.99

$

In Stock, Qty 20+

0

15

Lawn-Boy 602627

Washer-Plain (Wheel)

$

$

Not available

16

Lawn-Boy 677533

Wheel and Tire Assembly 6 x 1.50

$

$

Not available

17

Lawn-Boy 677534

Wheel and Tire Assembly 8 x 1.75

$

$

Not available

18

Lawn-Boy 602830

Nut-Nylok (Wheel Lever Shoulder Bolt)

$

$

Not available

19

Lawn-Boy 603553

Washer-Shoulder Bolt, Wheel Lever

$

$

Not available

20

Lawn-Boy 603440

Bolt-Shoulder, Wheel Lever

$61.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 603439

Spring-Wheel Adjustment

$

$

Not available

22

Lawn-Boy 603438

Lever-Wheel Adjustment

$

$

Not available

23

Lawn-Boy 602201

Nut-Level Ride Shoulder Bolt

$

$

Not available

24

Lawn-Boy 603113

Washer-Level Ride, Fiber

$

$

Currently unavailable

25

Lawn-Boy 602201

Nut-Nylok, Level Ride Bracket

$

$

Not available

26

Lawn-Boy 602903

Washer-Level Ride, Rubber

$

$

Currently unavailable

27

Lawn-Boy 306390

Nut-Hex, Level Ride Shoulder Bolt

$

$

Currently unavailable

28

Lawn-Boy 602902

Bolt-Shoulder, Level Ride Arm

$

$

Currently unavailable

29

Lawn-Boy 602901

Hair Pin-Level Ride Arm

$

$

Currently unavailable

30

Lawn-Boy 602900

Pin-Level Ride Arm

$

$

Currently unavailable

31

Lawn-Boy 603399

Arm-Level Ride

$

$

Not available

32

Lawn-Boy 603554

Spring-Level Ride Arm

$

$

Currently unavailable

33

Lawn-Boy 603011

Screw-Level Ride Arm Bracket

$

$

Currently unavailable

34

Lawn-Boy 602890

Bracket-Level Ride Arm

$

$

Currently unavailable

35

Lawn-Boy 603463

Spring-Sound Trap Screen

$

$

Not available

36

Lawn-Boy 603462

Screen-Sound Trap

$

$

Currently unavailable

37

Lawn-Boy 603461

Screw-Thread Cutting

$

$

Currently unavailable

38

Lawn-Boy 603460

Shield-Sound Trap

$

$

Currently unavailable

39

Lawn-Boy 603036

Pin-Cotter

$

$

Not available

40

Lawn-Boy 603035

Clip-Spring, Cover

$

$

Not available

41

Lawn-Boy 603400

Bonnet-Front

$

$

Currently unavailable

42

Lawn-Boy 304325

Anchor-Rope to Handle

$

$

Not available

43

Lawn-Boy 603527

Handle-Starter

$

$

Not available

44

Lawn-Boy 603456

Spring-Shut-off

$

$

Not available

45

Lawn-Boy 602723

Cotter Pin-Choke Knob

$

$

Currently unavailable

46

Lawn-Boy 602623

Knob-Choke Rod

$5.49

$

In Stock, Qty 6

0

47

Lawn-Boy 602733

Sleeve-Choke Rod

$

$

Not available

48

Lawn-Boy 603454

Rod-Choke

$

$

Currently unavailable

49

Lawn-Boy 603453

Pivot-Choke Rod (Nylon)

$

$

Currently unavailable

50

Lawn-Boy 603451

Hose-Gas Line

$

$

Not available

51

Lawn-Boy 603476

Screw-Thread Cutting (Rear Bonnet to Housing)

$

$

Not available

52

Lawn-Boy 603475

Screw-Thread Cutting

$

$

Currently unavailable

53

Lawn-Boy 677081

Gas Cap

$

$

Currently unavailable

54

Lawn-Boy 602059

Gasket-Gas Cap

$

$

Not available

55

Lawn-Boy 677668

Shut-off Valve Assembly

$

$

Not available

56

Lawn-Boy 677667

Gas Tank

$

$

Not available

57

Lawn-Boy 603446

Bonnet-Rear

$

$

Currently unavailable

58

Lawn-Boy 603475

Screw-Thread Cutting (Bonnet Latch)

$

$

Currently unavailable

59

Lawn-Boy 603485

Latch-Bonnet

$

$

Currently unavailable

60

Lawn-Boy 602830

Nut-Nylok, Engine Mounting

$

$

Not available

61

Lawn-Boy 603474

Screw-Engine Mtg., Long

$

$

Currently unavailable

62

Lawn-Boy 603410

Bracket-Crankshaft Limit Stop

$

$

Currently unavailable

63

Lawn-Boy 603515

Bumper-Crankshaft Limit Stop

$

$

Currently unavailable

64

Lawn-Boy 603493

Nut-Muffler to Crankcase Studs

$

$

Currently unavailable

65

Lawn-Boy 602315

Nut-Muffler

$4.49

$

In Stock, only 2 left!

0

66

Lawn-Boy 603418

Muffler-Bottom

$

$

Currently unavailable

67

Lawn-Boy 603445

Gasket-Muffler

$

$

Currently unavailable

68

Lawn-Boy 602909

Bolt-Muffler

$

$

Currently unavailable

69

Lawn-Boy 602133

Spring-Muffler

$

$

Currently unavailable

70

Lawn-Boy 602717

Sleeve-Muffler Gasket

$2.99

$

In Stock, Qty 15

0

71

Lawn-Boy 602644

Gasket-Exhaust

$

$

Not available

72

Lawn-Boy 603417

Muffler-Top

$

$

Currently unavailable

73

Lawn-Boy 603257

Screw-Engine Mtg., Short

$

$

Not available

74

Lawn-Boy 603443

Seal-Dust

$

$

Currently unavailable

75

Lawn-Boy 677651

C-60 Engine

$

$

Not available

76

Lawn-Boy 603398

Housing, 19"

$

$

Currently unavailable

77

Lawn-Boy 603480

Decal-LAWN-BOY

$

$

Currently unavailable

78

Lawn-Boy 306453

Washer-Plain

$

$

Not available

79

Lawn-Boy 603566

Retainer-Choke Rod

$

$

Currently unavailable
