525 RXT - Husqvarna Brush Cutter (2013-03) SHAFT HANDLE Parts Diagram

Brush Cutter

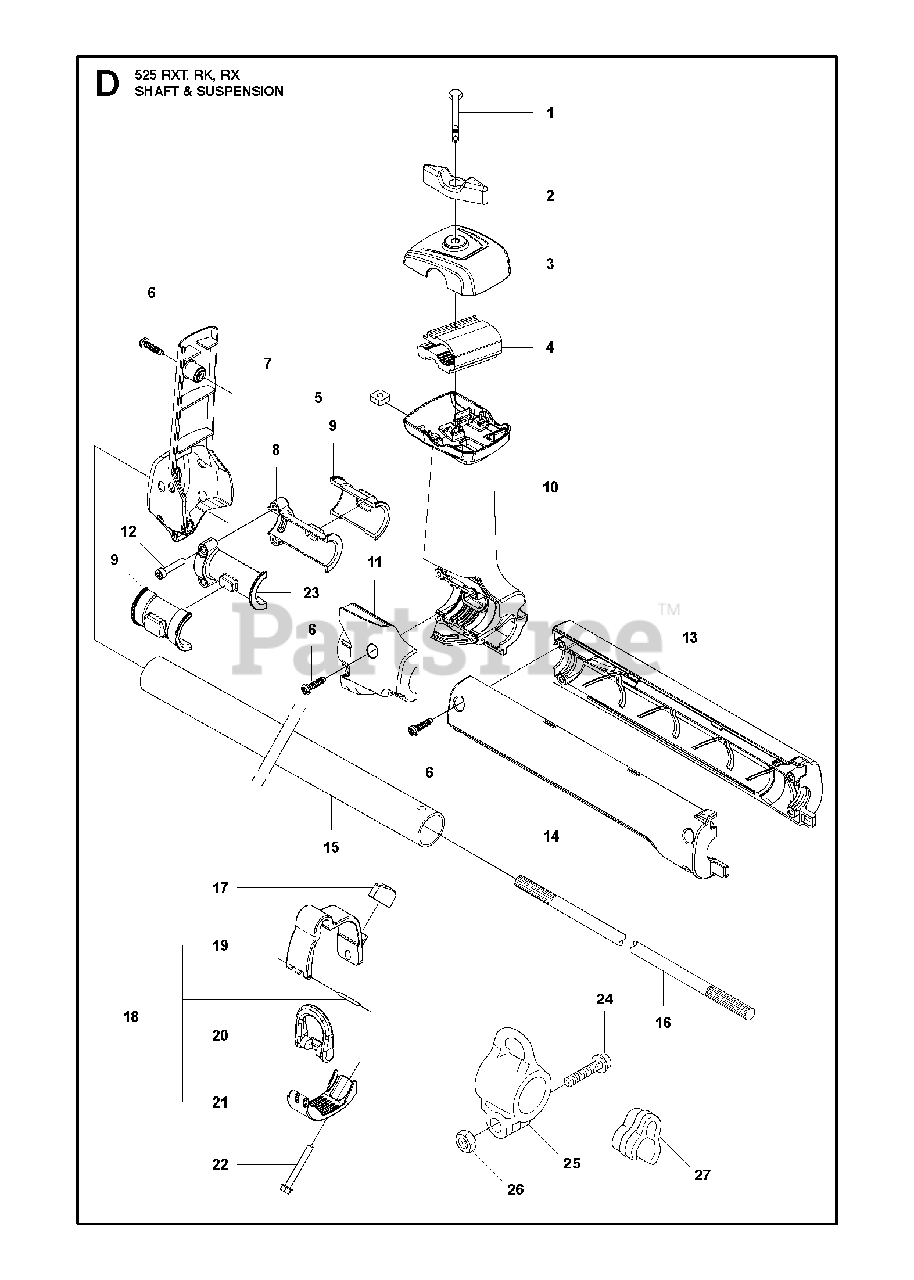

SHAFT HANDLE Parts Diagram

  • Title
1

Husqvarna 725238285

%SCREW
(Superseded to 725238281)

Note: M6x60

$4.99

$

In Stock, only 1 left!

0

$7.99

$

Usually ships in 3-10 days

0

3

$6.99

$

In Stock, only 1 left!

0

$14.99

$

Usually ships in 3-10 days

0

5

Husqvarna 502197101

NUT

Note: . 10

$8.99

$

In Stock, only 1 left!

0

6

Husqvarna 525764604

SCREW ITXSCT MT5X20 T27 12.9

$3.49

$

Usually ships in 3-10 days

0

7

Husqvarna 577558101

COVER TOWER

$9.49

$

Usually ships in 3-10 days

0

8

Husqvarna 578139001

BRACKET (A)

$6.99

$

In Stock, only 1 left!

0

9

Husqvarna 578139201

ABSORBER

Note: RXT RK

$7.99

$

In Stock, only 1 left!

0

9

$5.99

$

Usually ships in 3-10 days

0

10

Husqvarna 578247701

HANDLE BAR BRACKET COMP

$20.99

$

In Stock, only 4 left!

0

11

Husqvarna 577558001

COVER HANDLEBAR BRACKET

$7.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, only 1 left!

0

13

Husqvarna 577557501

WEAR PROTECTION RIGHT

$14.99

$

Usually ships in 3-10 days

0

14

Husqvarna 577557601

WEAR PROTECTION LEFT

$13.99

$

Usually ships in 3-10 days

0

15

Husqvarna 584977901

TUBE COMP

Note: RXT RX

$113.99

$

Usually ships in 3-10 days

0

16

Husqvarna 581815101

DRIVESHAFT

Note: RXT RX

$22.99

$

In Stock, Qty 20+

0

17

Husqvarna 537130402

KNOB

Note: RXT RK

$5.99

$

Usually ships in 3-10 days

0

18

Husqvarna 578247801

Note: RXT RK

$17.99

$

Usually ships in 3-10 days

0

19

Husqvarna 577557701

CLAMP UPPER

Note: RXT RK. 18

$

$

Not available

20

Husqvarna 537350101

HOOK

Note: RXT RK. 18

$7.99

$

Usually ships in 3-10 days

0

21

Husqvarna 577557801

CLAMP LOWER

Note: RXT RK. 18

$

$

Not available

22

Husqvarna 725233951

SCREW M6S 5X40

Note: RXT RK

$

$

Not available

23

Husqvarna 578139101

BRACKET (B)

$6.99

$

Usually ships in 3-10 days

0

24

Husqvarna 525755101

SCREW

Note: RX

$4.99

$

In Stock, Qty 6

0

25

Husqvarna 503941001

HARNESS HOLDER

Note: RX

$6.99

$

Usually ships in 3-10 days

0

26

Husqvarna 731231401

NUT

Note: RX

$2.49

$

In Stock, Qty 8

0

27

Husqvarna 502211201

GROMMET

Note: RX

$7.49

$

In Stock, only 2 left!

0
