525 PT5S - Husqvarna Pole Saw SHAFT Parts Diagram

Pole Saw

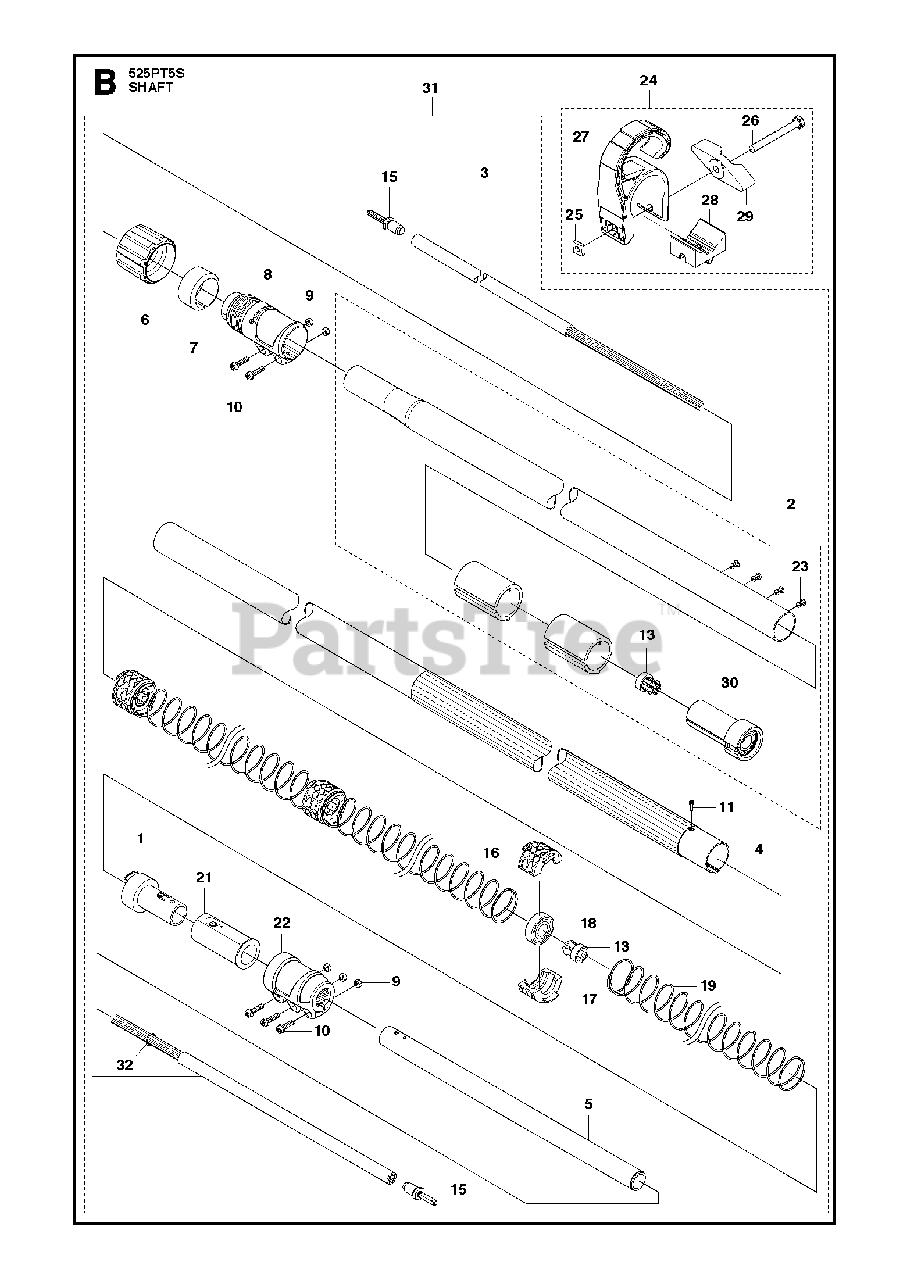

SHAFT Parts Diagram

  • Title

1

Husqvarna 576926001

BEARING SLEEVE

Note: . 31

$26.99

$

Usually ships in 3-10 days

0

2

Husqvarna 576925802

TUBE UPPER ASSY 525

Note: . 31

$157.99

$

Usually ships in 3-10 days

0

3

Husqvarna 576925602

DRIVE SHAFT ASSY

Note: . 31

$145.99

$

Usually ships in 3-10 days

0

4

Husqvarna 576925501

FRAME TUBE

Note: . 31

$113.99

$

Usually ships in 3-10 days

0

5

Husqvarna 576925702

TUBE

Note: . 31

$93.99

$

Usually ships in 3-10 days

0

6

Husqvarna 510096101

NUT

Note: . 31

$10.99

$

In Stock, Qty 5

0

7

Husqvarna 522742601

RING

Note: . 31

$4.49

$

In Stock, only 1 left!

0

8

Husqvarna 510096001

CLAMPING SLEEVE
(Superseded to 597194301)

Note: . 31

$13.99

$

In Stock, only 2 left!

0

9

Husqvarna 731231401

NUT

Note: . 31

$2.49

$

In Stock, only 2 left!

0

10

Husqvarna 525755102

SCREW

Note: . 31

$6.49

$

In Stock, only 2 left!

0

11

Husqvarna 530016064

SCREW
(Superseded to 545227101)

Note: . 4 31

$4.99

$

In Stock, only 2 left!

0

13

Husqvarna 537094501

SLIDING SHOE

Note: . 2 31

$7.99

$

In Stock, Qty 6

0

15

Husqvarna 574618901

ADAPTER
(Superseded to 574618902)

Note: . 31

$17.99

$

In Stock, only 3 left!

0

16

Husqvarna 510097301

BEARING HOUSING

Note: . 31

$5.99

$

In Stock, only 2 left!

0

17

Husqvarna 510094701

BEARING HOUSING

Note: . 31

$21.99

$

In Stock, only 2 left!

0

18

Husqvarna 738210102

BALL BEARING

Note: . 31

$20.99

$

In Stock, only 3 left!

0

19

Husqvarna 510095201

SPRING

Note: . 31

$9.99

$

Usually ships in 3-10 days

0

21

Husqvarna 510091001

SLEEVE

Note: . 31

$6.99

$

Usually ships in 3-10 days

0

22

Husqvarna 522597001

CLAMPING SLEEVE

Note: . 31

$13.99

$

Usually ships in 3-10 days

0

23

Husqvarna 576221201

RIVET

Note: . 2 31

$3.49

$

Usually ships in 3-10 days

0

24

Husqvarna 579264001

LOOP

Note: . 31

$20.99

$

In Stock, only 3 left!

0

25

Husqvarna 502197101

NUT

Note: . 24

$8.99

$

In Stock, only 1 left!

0

26

Husqvarna 725238151

SCREW M6X55

Note: . 24

$4.99

$

In Stock, only 2 left!

0

27

Husqvarna 522723101

LOOP

Note: . 24

$13.99

$

In Stock, only 2 left!

0

28

Husqvarna 522723301

SPACING BLOCK

Note: . 24

$5.99

$

In Stock, only 2 left!

0

29

Husqvarna 502203801

HANDLE

Note: . 24

$7.99

$

In Stock, only 1 left!

0

30

Husqvarna 579275501

BEARING SLEEVE

Note: . 2 31

$28.99

$

Usually ships in 3-10 days

0

31

Husqvarna 510097002

TUBE DRVESHAFT ASSY TELESCOPIC

$363.99

$

In Stock, only 1 left!

0

32

Husqvarna 510112501

SNAP RING

Note: . 3 31

$4.99

$

In Stock, only 1 left!

0
