525 LST Mark II - Husqvarna Brush Cutter IGNITION SYSTEM & CLUTCH Parts Diagram

Brush Cutter

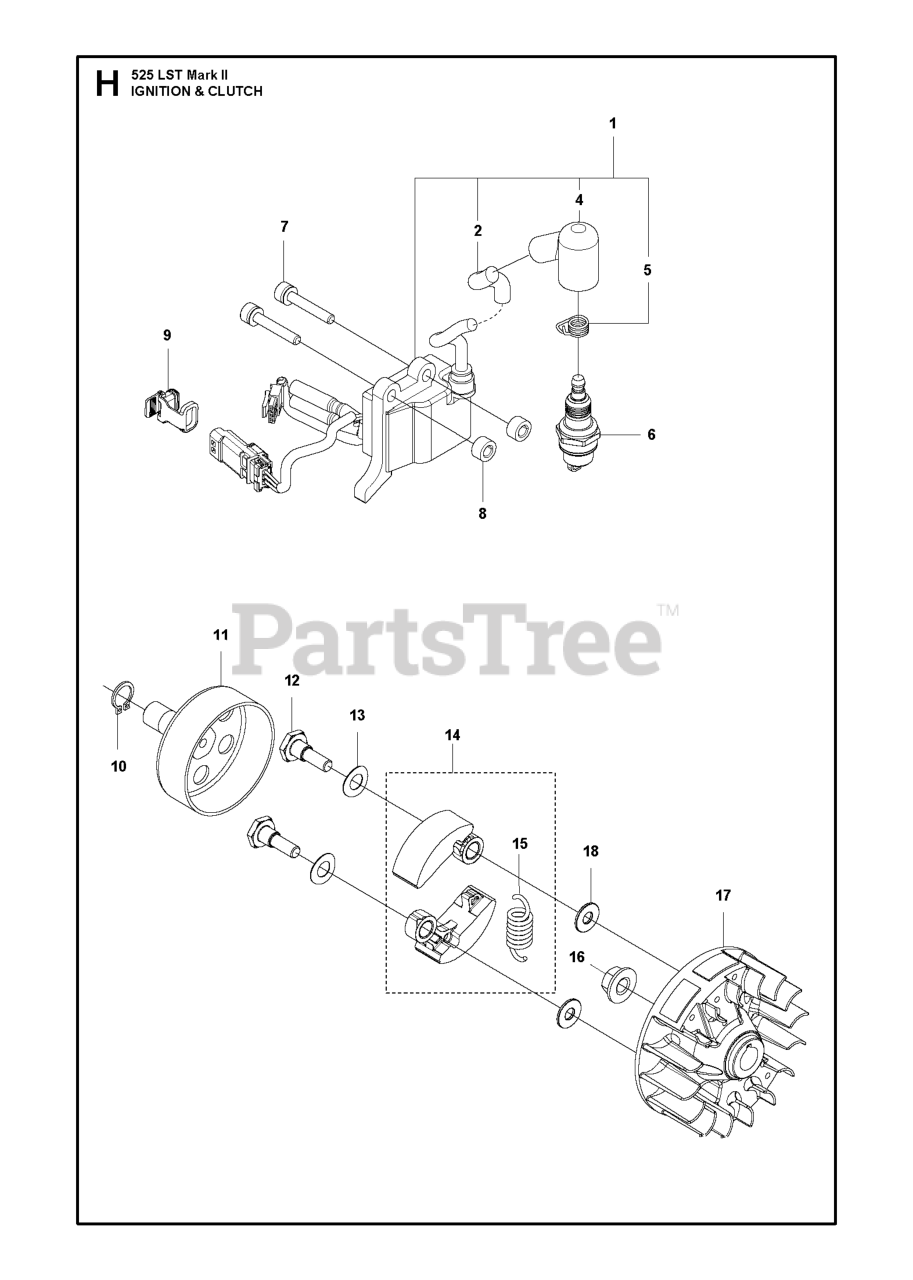

IGNITION SYSTEM & CLUTCH Parts Diagram

  • Title

7

Husqvarna 521515801

BOLT M4 X 25

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 597717201

IGNITION COIL ASSY

$62.99

$

Usually ships in 3-10 days

0

17

Husqvarna 578967801

FLYWHEEL

$68.99

$

Usually ships in 3-10 days

0

2

Husqvarna 597717801

TUBE

$2.49

$

Usually ships in 3-10 days

0

14

Husqvarna 585834701

CLUTCH ASSY

$43.99

$

In Stock, only 4 left!

0

5

Husqvarna 597717601

SPRING IGNITION COIL

$84.99

$

Usually ships in 3-10 days

0

6

Husqvarna 590710101

SPARK PLUG HQT-2 RESISTOR

Note: Husqvarna HQT-2

$5.99

$

In Stock, Qty 7

0

13

Husqvarna 521758201

WASHER

$3.49

$

In Stock, Qty 5

0

10

Husqvarna 516124101

RING

$4.99

$

In Stock, only 3 left!

0

12

Husqvarna 513189601

SCREW

$4.99

$

In Stock, only 4 left!

0

16

Husqvarna 504118001

NUT
(Superseded to 516437401)

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 521769701

SPACER
(Superseded to 588171401)

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 576400701

CLUTCH SPRING

$6.99

$

In Stock, only 1 left!

0

9

Husqvarna 531067601

CONNECTOR

$2.49

$

Usually ships in 3-10 days

0

11

Husqvarna 581142001

CLUTCH DRUM

$42.99

$

In Stock, Qty 10

0

4

Husqvarna 597717701

SPARK PLUG CAP

$2.49

$

Usually ships in 3-10 days

0

18

Husqvarna 505054401

WASHER

$4.99

$

Usually ships in 3-10 days

0
