525 LST - Husqvarna Brush Cutter (2013-03) BEVEL GEAR Parts Diagram

Brush Cutter

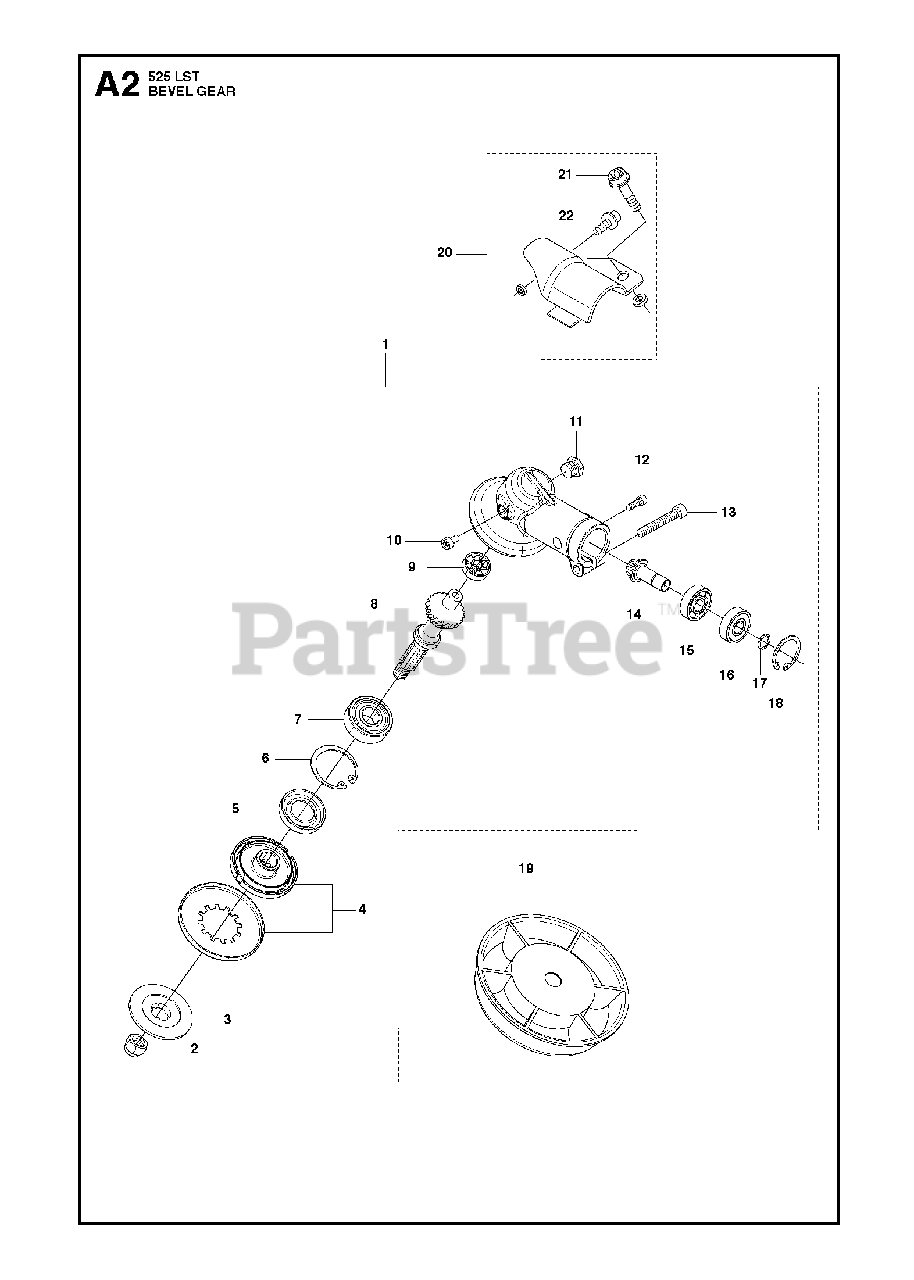

BEVEL GEAR Parts Diagram

  • Title
1

Husqvarna 584964601

BEVEL GEAR ASSY

$113.99

$

In Stock, only 1 left!

0

2

Husqvarna 503856301

GEARHEAD NUT - BRUSHCUTTER

Note: . 1

$7.49

$

In Stock, only 1 left!

0

3

Husqvarna 537285601

SUPPORT FLANGE

Note: . 1

$

$

Not available

4

Husqvarna 584442201

DRIVER ASSY

Note: . 1

$31.99

$

In Stock, only 2 left!

0

5

Husqvarna 577457901

SEAL

Note: . 1

$

$

Not available

6

Husqvarna 504121001

RING

Note: . 1

$3.99

$

In Stock, only 2 left!

0

7

Husqvarna 510569701

BEARING***

Note: . 1

$14.99

$

In Stock, only 1 left!

0

8

Husqvarna 584442001

GEAR ASSY

Note: . 1

$66.99

$

In Stock, only 4 left!

0

9

Husqvarna 516127701

BEARING (RPLS T330013520)

Note: . 1

$7.99

$

Usually ships in 3-10 days

0

10

Husqvarna 578394801

BOLT

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 576399001

SCREW M10X1.25 T27

Note: . 1

$5.99

$

In Stock, Qty 13

0

12

Husqvarna 521515901

BOLT (RPLS T495051010-11)

Note: . 1

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 577942001

BOLT M5X20 T27

Note: . 1

$4.99

$

In Stock, only 1 left!

0

14

Husqvarna 577457701

PINION HIGH REDUCTION RATIO

Note: . 1

$39.99

$

Usually ships in 3-10 days

0

15

Husqvarna 505169201

BEARING

Note: . 1

$9.99

$

In Stock, Qty 5

0

16

Husqvarna 505169301

BEARING

Note: . 1

$8.99

$

In Stock, only 3 left!

0

17

Husqvarna 521821801

RING

Note: . 1

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 505169401

RP_RING
(Superseded to 516125401)

Note: . 1

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 503890101

SUPPORTING CUP

$26.99

$

In Stock, only 1 left!

0

20

Husqvarna 578247501

ASSY CLAMP

$7.99

$

In Stock, only 1 left!

0

21

Husqvarna 523019001

BOLT

Note: . 20

$7.49

$

Usually ships in 3-10 days

0

22

Husqvarna 521515901

BOLT (RPLS T495051010-11)

Note: . 20

$4.99

$

Usually ships in 3-10 days

0
