525 HF 3S - Husqvarna Hedge Trimmer IGNITION SYSTEM & CLUTCH Parts Diagram

Hedge Trimmer

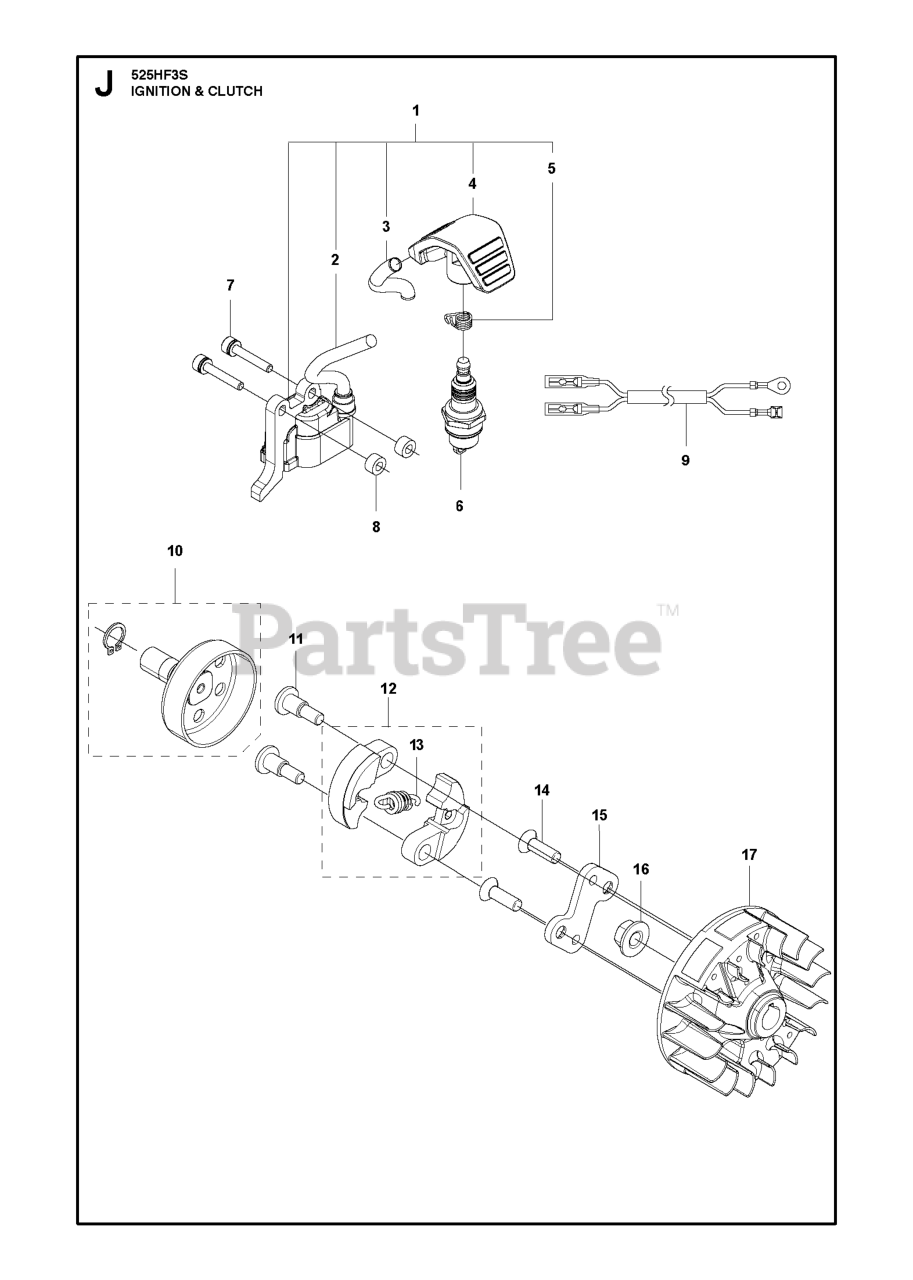

IGNITION SYSTEM & CLUTCH Parts Diagram

  • Title

1

Husqvarna 588141201

IGNITION COIL ASSY

$85.99

$

Usually ships in 3-10 days

0

12

Husqvarna 537040102

CLUTCH

$43.99

$

Usually ships in 3-10 days

0

17

Husqvarna 578967801

FLYWHEEL

$74.99

$

Usually ships in 3-10 days

0

15

Husqvarna 580355401

CLUTCH HUB

$10.99

$

Usually ships in 3-10 days

0

7

Husqvarna 521515801

BOLT M4 X 25

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 590710101

SPARK PLUG HQT-2 RESISTOR

Note: Husqvarna HQT-2

$5.99

$

In Stock, Qty 12

0

3

Husqvarna 579590701

TUBE

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 503145101

CLUTCH SPRING

$11.99

$

In Stock, Qty 20+

0

14

Husqvarna 580429201

SCREW

$3.49

$

Usually ships in 3-10 days

0

2

Husqvarna 584826601

IGNITION CABLE
(Superseded to 576882701)

$24.99

$

In Stock, only 2 left!

0

16

Husqvarna 504118001

NUT
(Superseded to 516437401)

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 588171401

SPACER

$6.49

$

In Stock, Qty 20+

0

11

Husqvarna 525615401

SCREW CLUTCH

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 587188701

SHORT CIRCUIT CABLE

$11.99

$

Usually ships in 3-10 days

0

4

Husqvarna 586107201

SPARK PLUG CAP

$11.99

$

Usually ships in 3-10 days

0

10

Husqvarna 586829701

KIT CLUTCH DRUM ASSY

$40.99

$

Usually ships in 3-10 days

0

5

Husqvarna 588176201

SPRING

$6.49

$

Usually ships in 3-10 days

0
