525 BX - Husqvarna Handheld Blower (Original) IGNITION SYSTEM Parts Diagram

Handheld Blower

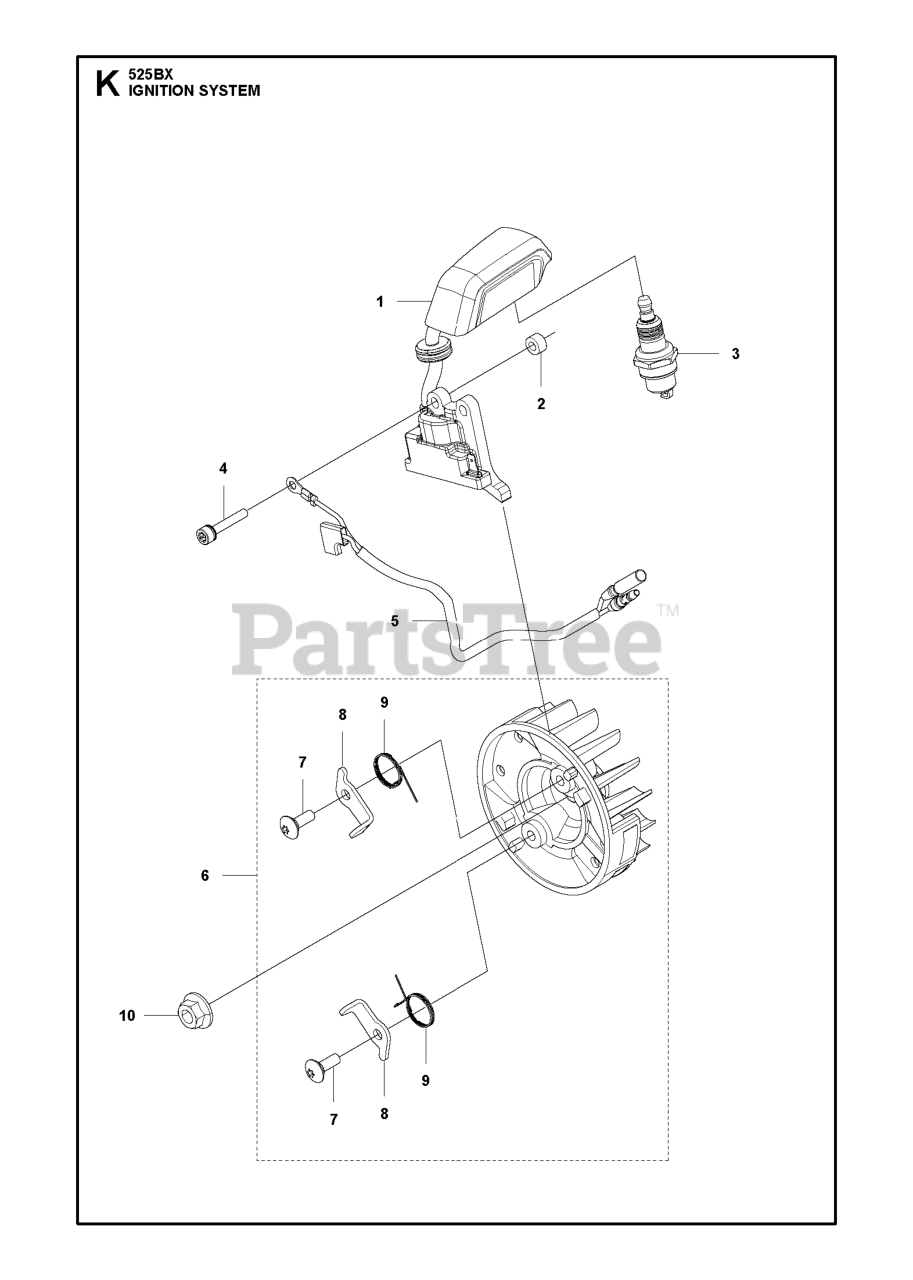

IGNITION SYSTEM Parts Diagram

  • Title

6

Husqvarna 585683101

FLYWHEEL ASSY

$26.99

$

Usually ships in 3-10 days

0

1

Husqvarna 585683203

IGNITION COIL ASSY
(Superseded to 596813306)

Note: s/n from 20160900565- (for 957284201), 20160901314- (for 967284202), 20160700101- (for 967284203)

$45.99

$

In Stock, only 1 left!

0

10

Husqvarna 504118001

NUT
(Superseded to 516437401)

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 585683301

CORD COMP

$6.99

$

Usually ships in 3-10 days

0

3

Husqvarna 576598101

SPARK PLUG BPMR8Y
(Superseded to 590710101)

$5.99

$

Usually ships in 3-10 days

0

2

Husqvarna 588171401

SPACER

$6.49

$

Usually ships in 3-10 days

0

7

Husqvarna 586346401

BOLT

$

$

Not available

9

Husqvarna 586346501

SPRING

$4.99

$

Usually ships in 3-10 days

0

1

Husqvarna 585683201

IGNITION COIL ASSY
(Superseded to 596813306)

Note: s/n from 20150600101-to 20160900564 (for 967284201), 20154900101- to 20160901313 (fro 967284202)

$45.99

$

In Stock, only 1 left!

0

4

Husqvarna 521515801

BOLT M4 X 25

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 586346301

RATCHET

$

$

Not available
