525 BX - Husqvarna Handheld Blower (Original) CARBURETOR & AIR FILTER Parts Diagram

Handheld Blower

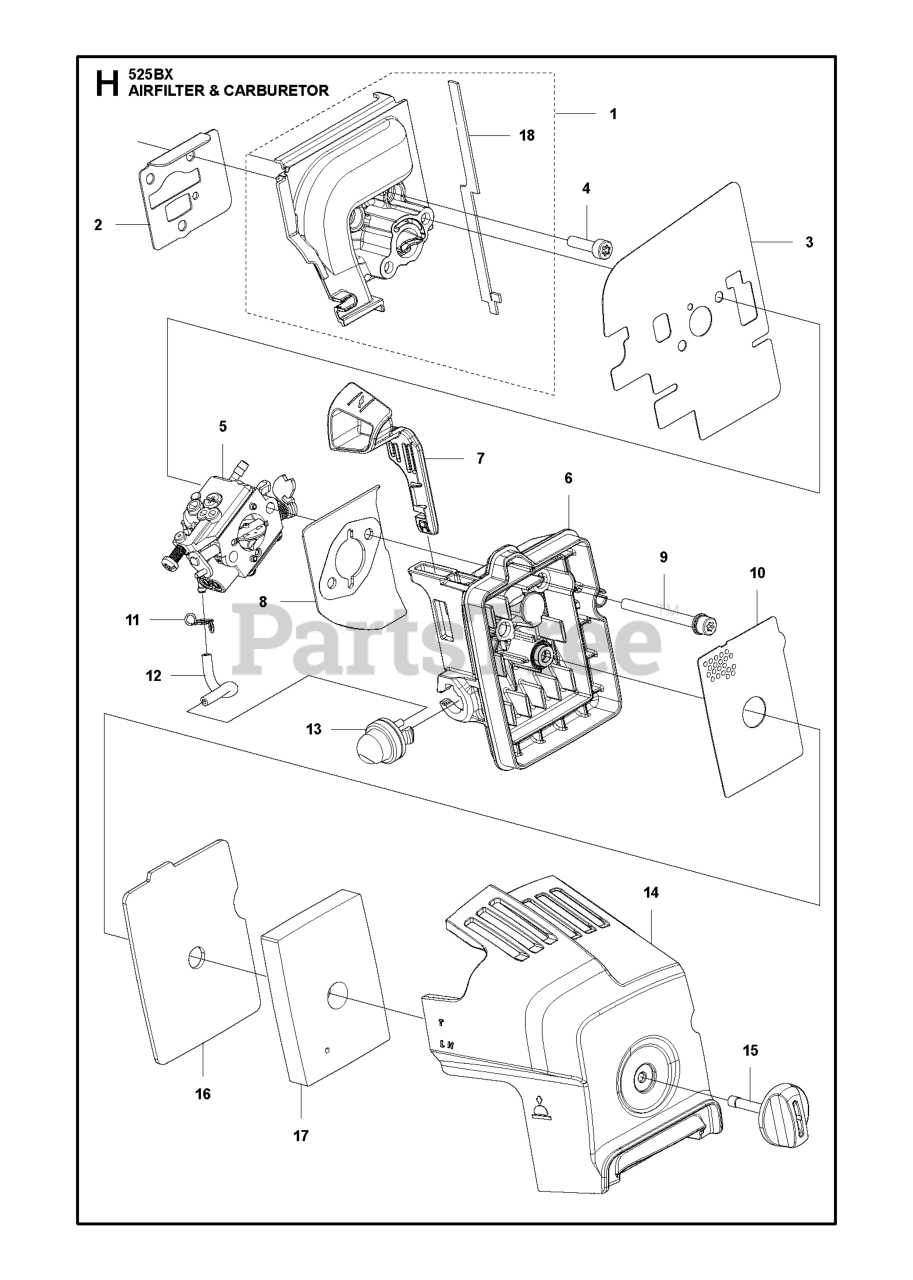

CARBURETOR & AIR FILTER Parts Diagram

  • Title

1

Husqvarna 587194501

INSULATOR ASSY

$17.99

$

Usually ships in 3-10 days

0

17

Husqvarna 585605001

AIR FILTER URETHANE

$10.99

$

In Stock, only 2 left!

0

7

Husqvarna 585604501

CHOKE CONTROL

$5.99

$

Usually ships in 3-10 days

0

11

Husqvarna 580396301

CLAMP FUEL LINE

$

$

Not available

6

Husqvarna 585604401

FILTER HOUSING

$22.99

$

Usually ships in 3-10 days

0

4

Husqvarna 585883401

BOLT M5X0.8 L20 WITH THREAD L

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna 585604601

PLATE

$24.99

$

Usually ships in 3-10 days

0

8

Husqvarna 586693001

GASKET CLEANER
(Superseded to 586693002)

$11.99

$

In Stock, only 1 left!

0

3

Husqvarna 585603401

GASKET CARBURETOR

$9.49

$

Usually ships in 3-10 days

0

18

Husqvarna 587122001

INSULATING SHEET

$6.99

$

Usually ships in 3-10 days

0

15

Husqvarna 576992403

KNOB CLEANER COLOR: GREY

$10.99

$

Usually ships in 3-10 days

0

16

Husqvarna 585604901

AIR FILTER FELT

$

$

Not available

14

Husqvarna 585604801

FILTER COVER GRAY

$37.99

$

Usually ships in 3-10 days

0

2

Husqvarna 585603301

GASKET INSULATOR

$6.99

$

Usually ships in 3-10 days

0

12

Husqvarna 577533304

FUEL HOSE 65

$5.99

$

Usually ships in 3-10 days

0

5

Husqvarna 501716903

CARBURETTOR ASSY
(Superseded to 501716904)

Note: SKU967284202 from 20172602897

$43.99

$

In Stock, only 1 left!

0

5

Husqvarna 585603803

CARBURETTOR ASSY H226D-03-0000

Note: SKU967284201 from 20171703003, SKU967284203 from 20172600101

$

$

Not available

9

Husqvarna 585883502

BOLT

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 503936601

AIR PURGE BUBBLE

$21.99

$

Usually ships in 3-10 days

0
