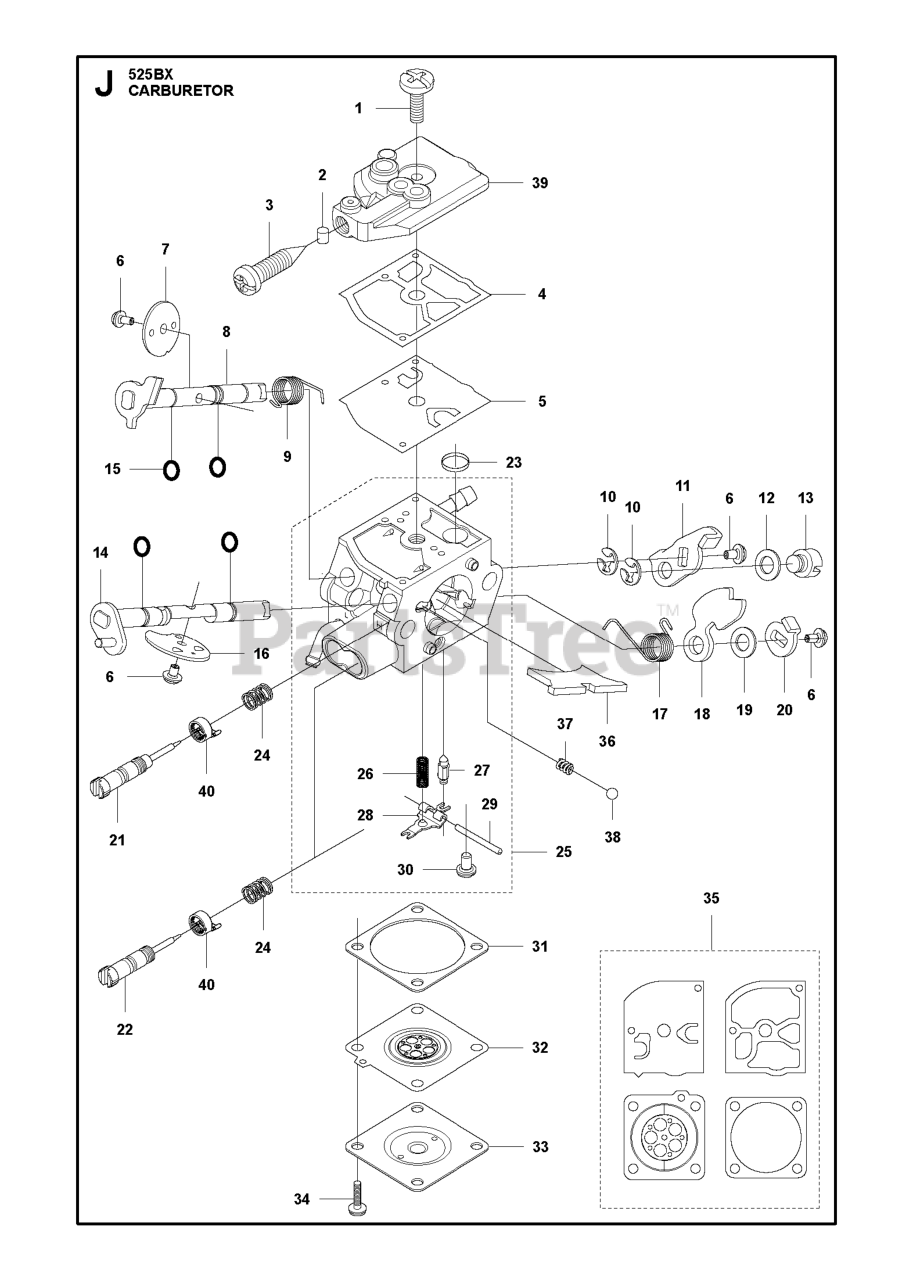

525 BX - Husqvarna Handheld Blower (Original) CARBURETOR Parts Diagram

Handheld Blower

CARBURETOR Parts Diagram

  • Title

25

Husqvarna 587712701

BODY ASSY, CARBURETTOR
(Superseded to 501716904)

$43.99

$

In Stock, only 2 left!

0

22

Husqvarna 590636701

NEEDLE
(Superseded to 501716904)

Note: SKU967284202 from 20172602897

$43.99

$

In Stock, only 2 left!

0

13

Husqvarna 586383401

SWIVEL

$9.99

$

In Stock, only 4 left!

0

30

Husqvarna 578390301

SCREW M3X6

$

$

Not available

24

Husqvarna 587713301

SPRING

$

$

Not available

3

Husqvarna 579631701

SCREW

$14.99

$

In Stock, only 1 left!

0

22

Husqvarna 588995401

NEEDS DESCRIPTION

Note: SKU967284201 from 20171703003, SKU967284203 from 20172600101

$

$

Not available

5

Husqvarna 577899501

DIAPHRAGM PUMP

$6.99

$

In Stock, only 1 left!

0

18

Husqvarna 588995501

LEVER
(Superseded to 585603803)

Note: SKU 967284201 from 20163106705, SKU 967284202 from 20163203284, SKU 967284203 from 20163401301

$

$

Not available

8

Husqvarna 587713001

SHAFT ASSY THROTTLE

$

$

Not available

12

Husqvarna 577901101

GASKET

$3.49

$

Usually ships in 3-10 days

0

25

Husqvarna 587712702

BODY
(Superseded to 501716904)

Note: SKU967284201 from 20171703003, SKU967284202 from 20172602897, SKU967284203 from 20172600101

$43.99

$

In Stock, only 2 left!

0

6

Husqvarna 577899701

SCREW

$

$

Not available

23

Husqvarna 577900301

STRAINER

$4.99

$

Usually ships in 3-10 days

0

27

Husqvarna 579631901

VALVE INLET

$11.99

$

Usually ships in 3-10 days

0

29

Husqvarna 578390601

PIN

$

$

Not available

9

Husqvarna 587712901

SPRING THROTTLE RETURN

$

$

Not available

16

Husqvarna 587714202

LEVER
(Superseded to 585603803)

Note: SKU 967284201 from 20163106705, SKU 967284202 from 20163203284, SKU 967284203 from 20163401301

$

$

Not available

34

Husqvarna 577900501

SCREW M3X7

$

$

Not available

2

Husqvarna 578389701

PLUG

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 587713701

SPRING RETURN
(Superseded to 587713702)

$4.99

$

Usually ships in 3-10 days

0

39

Husqvarna 587713801

PUMP COVER

$

$

Not available

19

Husqvarna 585319701

SPACER

$

$

Not available

26

Husqvarna 579631801

SPRING

$4.99

$

Usually ships in 3-10 days

0

1

Husqvarna 577899301

SCREW

$3.49

$

Usually ships in 3-10 days

0

4

Husqvarna 577899401

GASKET PUMP

$3.49

$

Usually ships in 3-10 days

0

37

Husqvarna 577901601

SPRING FRICTION

$7.99

$

Usually ships in 3-10 days

0

10

Husqvarna 577900401

E-RING

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 587713401

SCREW IDLE MIXTURE

Note: SKU967284201, SKU967284203

$6.99

$

In Stock, only 2 left!

0

7

Husqvarna 587712801

VALVE THROTTLE

$

$

Not available

31

Husqvarna 577899901

GASKET METERING CHAMBER

$3.49

$

In Stock, only 1 left!

0

33

Husqvarna 577900001

COVER METERING CHAMBER

$

$

Not available

38

Husqvarna 577901501

BALL STEEL

$

$

Not available

20

Husqvarna 587714001

LEVER

$6.99

$

Usually ships in 3-10 days

0

35

Husqvarna 577901801

GASKET KIT

$11.99

$

In Stock, only 1 left!

0

40

Husqvarna 587713202

NEEDS DESCRIPTION

Note: SKU 967284201 from 20163106705, SKU 967284203 from 20163401301, N/A in SKU 967284202

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 587713601

O-RING

$

$

Not available

11

Husqvarna 587714301

LEVER

$

$

Not available

21

Husqvarna 585319101

SCREW IDLE MIXTURE H225-0007B

Note: SKU967282402

$

$

Not available

28

Husqvarna 578390201

LEVER

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 577900101

DIAPHRAGM ASSY METERING

$7.99

$

Usually ships in 3-10 days

0

14

Husqvarna 587714101

SHAFT ASSY CHOKE

$7.99

$

Usually ships in 3-10 days

0

36

Husqvarna 587713501

PLATE SPLIT

$

$

Not available
