525 (990485) - Simplicity Serf Lawn Tractor Engine, Pulley, Brake & Clutch Group Parts Diagram

Serf Lawn Tractor

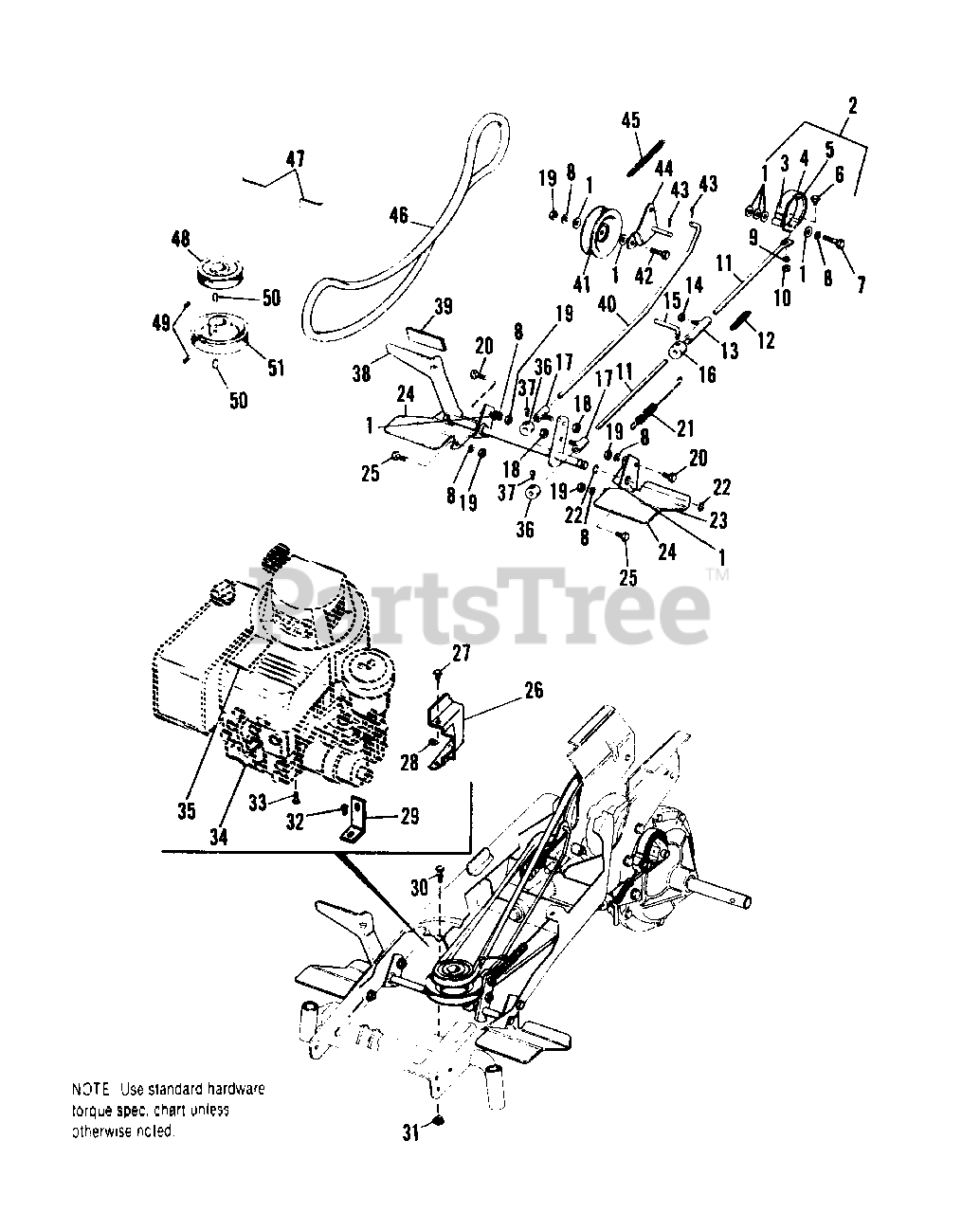

Engine, Pulley, Brake & Clutch Group Parts Diagram

  • Title

1

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

2

Simplicity 2156134SM

BAND ASSY., Brake

$104.99

$

Usually ships in 2-12 days

0

3

Simplicity 2826021SM

RIVET, #7 x 1/4

$3.49

$

Usually ships in 2-12 days

0

4

Simplicity 2156134SM

BAND, Brake

$104.99

$

Usually ships in 2-12 days

0

5

Simplicity 2156134SM

LINING, Brake

$104.99

$

Usually ships in 2-12 days

0

6

Simplicity 922129

CAPSCREW, Hex, 1/4-20 x 1/2

$

$

Not available

7

Simplicity 2821969

CAPSCREW, Hex Hd., 3/8-16 x 1-1/2

$

$

Not available

8

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

9

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

10

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 162092

ROD, Brake

$

$

Not available

12

Simplicity 2121037SM

SPRING

$

$

Not available

13

Simplicity 156304

GUIDE ASSY., Rod

$

$

Not available

14

Simplicity 2823358

LOCKNUT, Hex, 1/4-20

$

$

Not available

15

Simplicity 157088

LOCK, Parking Brake

$

$

Not available

16

Simplicity 157087

COLLAR, Parking Brake

$

$

Not available

17

Simplicity 156303

GUIDE ASSY., Rod

$

$

Not available

18

Simplicity 2823362

LOCKNUT, Hex, 5/16-18

$

$

Not available

19

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

20

Simplicity 2821210

CAPSCREW, Hex Hd., 3/8-16 x 1

$

$

Not available

21

Simplicity 2159181SM

SPRING

$7.49

$

In Stock, only 1 left!

0

22

Simplicity 2827793SM

RING, Retaining
(Superseded to 703977)

$4.99

$

In Stock, Qty 14

0

23

Simplicity 162029

FOOTREST, L.H.

$

$

Not available

24

Simplicity 162054

COVER, Footrest

$

$

Not available

25

Simplicity 2821965

CAPSCREW, Hex Hd., 3/8-16 x 3/4

$

$

Not available

26

Simplicity 163075

DEFLECTOR, Muffler

$

$

Not available

27

Simplicity 2819339

SCREW, Self Tapping, #14 x 5/8

$

$

Not available

28

Simplicity 9287-03

NUT, Speed

$

$

Not available

29

Simplicity 163079

BRACKET

$

$

Not available

30

Simplicity 2821221

CAPSCREW, Hex Hd., 5/16-18 x 1-1/2

$

$

Not available

31

Simplicity 927577

LOCKNUT, Hex, Flange, 5/16-18

$

$

Not available

32

Simplicity 2827428

SCREW, Hex, Taptite, 1/4-20 x 3/8

$

$

Not available

33

Simplicity 2828635SM

SCREW, Hex, Washer Hd., 3/8-16 x 1-1/4

$4.99

$

In Stock, Qty 20+

0

34

ENGINE, Briggs & Stratton

$

$

Not available

35

Simplicity 162073

FILM, Engine Cover

$

$

Not available

36

Simplicity 1729276SM

COLLAR, Set

$

$

Not available

37

Simplicity 2828804

SETSCREW, 1/4-20 x 3/8

$

$

Not available

38

Simplicity 162024

SHAFT ASSY., Clutch

$

$

Not available

39

Simplicity 162098

PAD, Pedal

$

$

Not available

40

Simplicity 163086

ROD, Clutch

$

$

Not available

41

Simplicity 2106716

PULLEY, Idler

$

$

Not available

42

Simplicity 1920415SM

CAPSCREW, Hex Hd., 3/8-16 x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

43

Simplicity 2818451

PIN, Cotter, 1/8 x 3/4

$

$

Not available

44

Simplicity 162021

BRACKET ASSY., Pulley

$

$

Not available

45

Simplicity 162082

SPRING, Return (990418 Only)

$

$

Not available

45

Simplicity 2165068SM

SPRING, Return

$12.99

$

In Stock, Qty 5

0

46

Simplicity 2163011

V-BELT, Drive

$

$

Not available

47

Simplicity 1630-65

STOP, Belt

$

$

Not available

48

Simplicity 2163010

PULLEY, Engine, Small

$

$

Not available

49

Simplicity 2828691

SETSCREW, 5/16-18 x 1/2

$

$

Not available

50

Simplicity 2154096SM

KEY

$6.99

$

In Stock, only 1 left!

0

51

Simplicity 163077

PULLEY, Engine, Large

$

$

Not available
