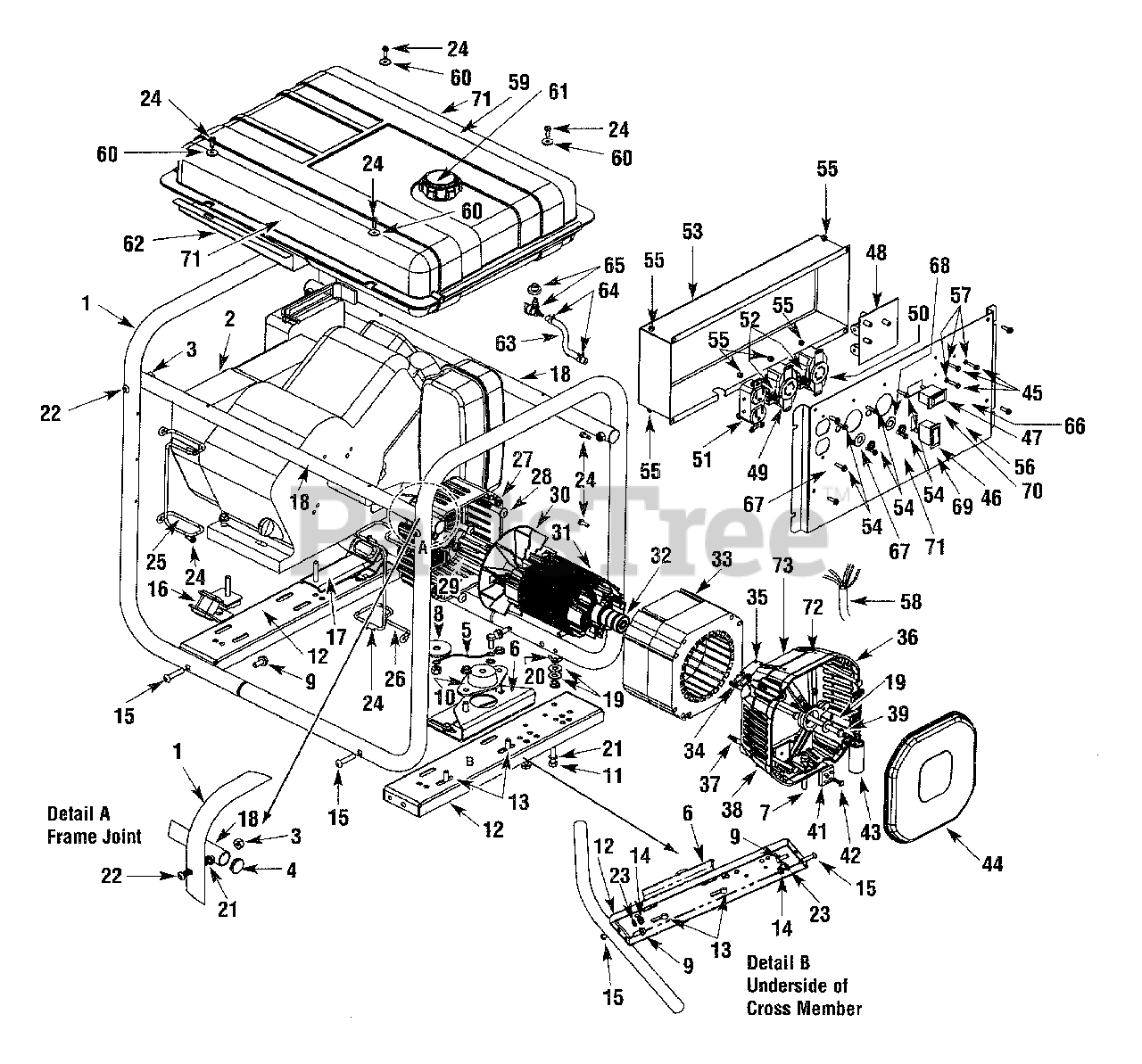

52405 - Troy-Bilt 6,000 Watt Portable Generator General Assembly Parts Diagram

6,000 Watt Portable Generator

General Assembly Parts Diagram

  • Title

1

MTD 1917987

Carry frame with box

$

$

Not available

2

Troy-Bilt 1917988

9 HP gasoline engine

$

$

Currently unavailable

3

Troy-Bilt 1917873

Nut, 5/16" -18 Nyloc

$

$

Currently unavailable

4

MTD 1917989

Plug, 1" round endcap

$

$

Not available

5

Troy-Bilt 1917990

Grounding wire, 5-3/4"

$

$

Currently unavailable

6

MTD 1917991

"C" mounting bracket

$

$

Not available

7

Troy-Bilt 1918254

Bolt, 5/16" -18 x 2-1/2" HH

$

$

Currently unavailable

8

Troy-Bilt 1918195

Flat washer, 2" OD

$

$

Currently unavailable

9

Troy-Bilt 1918255

Screw, 5/16" -12 x 3/4" thread forming

$

$

Currently unavailable

10

MTD 1917992

Vibration isolator

$

$

Not available

11

Troy-Bilt 1918256

Bolt, 5/16" -18 x 1-1/4" HH

$

$

Currently unavailable

12

MTD 1917993

Crossmember, bolt on

$

$

Not available

13

Troy-Bilt 1918257

Bolt, 5/16" -18 x 3/4" HH

$

$

Currently unavailable

14

Troy-Bilt 1918258

Nut, 5/16" serrated flange

$

$

Currently unavailable

15

Troy-Bilt 1918259

Screw, 5/16" -18 x 1-1/2" SBC

$

$

Currently unavailable

16

MTD 1917994

Isolator, angled mount

$

$

Not available

17

MTD 1917996

Isolator, extended angled mount

$

$

Not available

18

Troy-Bilt 1917995

Mount, cross bar-gas tank

$

$

Currently unavailable

19

Troy-Bilt 1918260

Flat washer, 5/16"

$

$

Currently unavailable

20

Troy-Bilt 1918261

Wing nut, 5/16" -18

$

$

Currently unavailable

21

MTD 1918190

Washer, 5/16" external tooth

$

$

Not available

22

Troy-Bilt 1918262

Bolt, 5/16" 18 x 2-1/4" SBC

$

$

Currently unavailable

23

Troy-Bilt 1917887

Washer, 5/16" split-ring lock

$

$

Currently unavailable

24

Troy-Bilt 1918265

Screw, #10 self tapping

$

$

Currently unavailable

25

MTD 1918206

Holder, engine end mount cord

$

$

Not available

26

MTD 1918225

Holder, alternator end mount cord

$

$

Not available

27

Troy-Bilt 1917997

Adapter, engine

$

$

Currently unavailable

28

Troy-Bilt 1918263

Screw, 3/8" -16 x 3/4" button socket

$

$

Currently unavailable

29

Troy-Bilt 1918264

Screw, No. 8 -18 x 5/8"

$

$

Currently unavailable

30

Troy-Bilt 1911998

Fan, rotor

$

$

Currently unavailable

31

MTD 1917999

Assembly, rotor

$

$

Not available

32

MTD 1918000

Bearing, rotor

$

$

Not available

33

MTD 1918001

Assembly, stator

$

$

Not available

34

Troy-Bilt 1918002

Kit, brush

$

$

Currently unavailable

35

MTD 1918207

Holder, brush

$

$

Not available

36

MTD 1918003

Endbell, bearing

$

$

Not available

37

Troy-Bilt 1918004

Bolt, 1/4" x 20 hex

$

$

Currently unavailable

38

Troy-Bilt 1918007

Screw, 18 Hi-Lo

$

$

Currently unavailable

39

Troy-Bilt 1918005

Bolt, 5/16" x 24 hex

$

$

Currently unavailable

40

MTD 1918196

Wiring kit, brushes

Note: Not Shown

$

$

Not available

41

Troy-Bilt 1918048

Rectifier, 200V, 8 Amp

$

$

Currently unavailable

42

Troy-Bilt 1918297

Screw, #10 self tapping type "F"

$

$

Currently unavailable

43

MTD 1918008

Assembly, 220uF capacitor

$

$

Not available

44

Troy-Bilt 1918009

Cover, end

$

$

Currently unavailable

45

Troy-Bilt 1918270

Screw, #6 - 32 X 1/4" pan head

$

$

Currently unavailable

46

MTD 1918023

Switch, idle control on-off

$

$

Not available

47

MTD 1918024

Switch, full power on-off

$

$

Not available

48

MTD 1918022

Board, idle control circuit

$

$

Not available

49

MTD 1918021

Receptacle, 120V - 30A

$

$

Not available

50

MTD 1918020

Receptacle, 120/240V - 20A

$

$

Not available

51

MTD 1918018

Receptacle, 120V -15A

$

$

Not available

52

MTD 1918017

Breaker, circuit

$

$

Not available

53

Troy-Bilt 1918197

Cover, power panel rear

$

$

Currently unavailable

54

Troy-Bilt 1918268

Bolt, #8 - 32 hex head

$

$

Currently unavailable

55

Troy-Bilt 1918266

Nut, #8 - 32 Nyloc hex

$

$

Currently unavailable

56

Troy-Bilt 1918019

Panel, power control

$

$

Currently unavailable

57

Troy-Bilt 1918269

Washer, #6 lock

$

$

Currently unavailable

58

MTD 1918198

Harness, electrical wiring

$

$

Not available

59

MTD 1918014

Tank, fuel

$

$

Not available

60

Troy-Bilt 1918015

Washer, fuel tank mounting

$

$

Currently unavailable

61

MTD 1918016

Cap, fuel tank

$

$

Not available

62

Troy-Bilt 1918013

Shield, heat

$

$

Currently unavailable

63

MTD 1918011

Line, fuel

$

$

Not available

64

Troy-Bilt 1918010

Clamp, fuel line

$

$

Currently unavailable

65

MTD 1918012

Kit, fuel valve

$

$

Not available

66

Troy-Bilt DK399409AV

Decal, warning control

$

$

Currently unavailable

67

Troy-Bilt DK399410AV

Decal, 120V black

$

$

Currently unavailable

68

Troy-Bilt DK399454AV

Decal, 120V/240V black

$

$

Currently unavailable

69

Troy-Bilt DK399455AV

Decal, idle control

$

$

Currently unavailable

70

Troy-Bilt DK399456AV

Decal, full power control

$

$

Currently unavailable

71

Troy-Bilt DK399534AV

Decal, tank

$

$

Currently unavailable

72

Troy-Bilt DK660105AJ

Decal, UPC

$

$

Currently unavailable

73

Troy-Bilt DK660205AJ

Decal, Model

$

$

Currently unavailable

74

Troy-Bilt 1918272

Manual, generator core

Note: Not Shown

$

$

Currently unavailable

75

Troy-Bilt 1918274

Manual, wheel kit

Note: Not Shown

$

$

Currently unavailable
