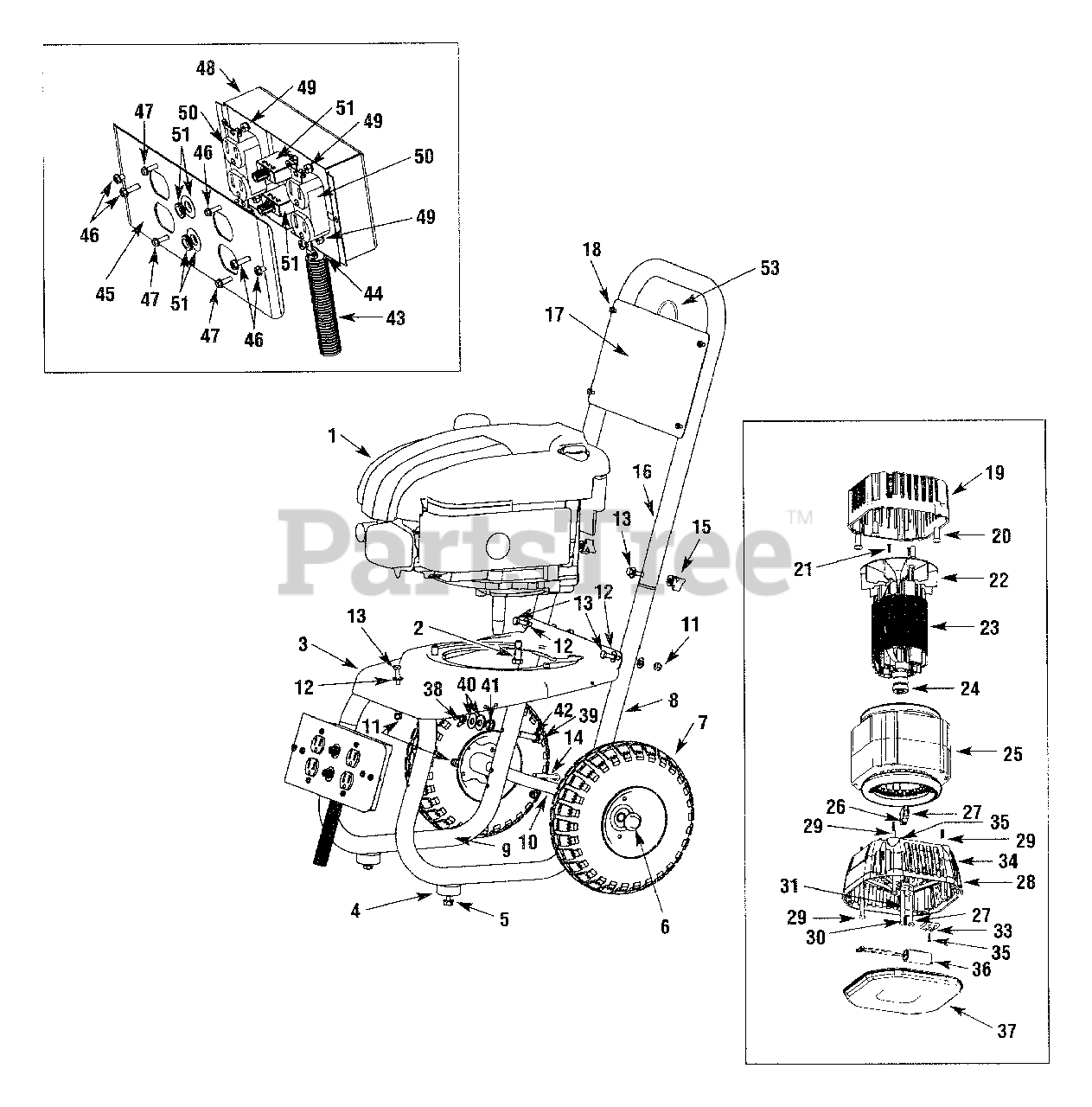

52404 - Troy-Bilt 3,600 Watt Portable Generator General Assembly Parts Diagram

3,600 Watt Portable Generator

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 1918030

Gasoline engine

$

$

Currently unavailable

2

Troy-Bilt 1918042

3/8"-16 x 1" self tapping screw

$

$

Currently unavailable

3

Troy-Bilt 1918031

Baseplate

$

$

Currently unavailable

4

MTD 1918034

Foot, vibration isolator

$

$

Not available

5

Troy-Bilt 1917817

Screw, 1/4"-20 x 3/4" self tapping

$

$

Currently unavailable

6

Troy-Bilt 1917798

Palnut
(Superseded to 726-0214)

$10.99

$

Usually ships in 3-6 days

0

7

MTD 1918184

Wheel

$

$

Not available

8

MTD 1918032

Leg, left frame support

$

$

Not available

9

MTD 1918033

Leg, right frame support

$

$

Not available

10

MTD 1918035

Axle, vertical cart

$

$

Not available

11

MTD 1917818

Nut, 1/4"-20 Nyloc hex

$

$

Not available

12

MTD 1917816

Washer, 1/4" flat

$

$

Not available

13

MTD 1918276

Bolt, 1/4"-20 x 1-1/2" hex

$

$

Not available

14

Troy-Bilt 1918275

Bolt, 1/4"-20 x 2-1/2" hex

$

$

Currently unavailable

15

MTD 1918037

Nut, 1/4"-20 thumb

$

$

Not available

16

Troy-Bilt 1918039

Handle, vertical cart

$

$

Currently unavailable

17

MTD 1918040

Placard, vertical handle

$

$

Not available

18

MTD 1918286

Rivet, 3/16"

$

$

Not available

19

Troy-Bilt 1918043

Adapter, engine

$

$

Currently unavailable

20

Troy-Bilt 1918263

Screw, 3/8"-16 x 3/4" button socket

$

$

Currently unavailable

21

Troy-Bilt 1918264

Screw, 8-18 x 5/8"

$

$

Currently unavailable

22

MTD 1917998

Fan, rotor

$

$

Not available

23

MTD 1918044

Assembly, rotor

$

$

Not available

24

MTD 1918000

Bearing, rotor

$

$

Not available

25

MTD 1918045

Assembly, stator

$

$

Not available

26

Troy-Bilt 1918002

Kit, brush

$

$

Currently unavailable

27

MTD 1918207

Holder, brush

$

$

Not available

28

MTD 1918003

Endbell, bearing

$

$

Not available

29

Troy-Bilt 1918046

Bolt, 1/4"-20 hex

$

$

Currently unavailable

30

Troy-Bilt 1918047

Bolt, 5/16"-24 hex

$

$

Currently unavailable

31

Troy-Bilt 1918260

Washer, 5/16" flat

$

$

Currently unavailable

32

MTD 1918196

Wiring kit #2, brushes

Note: Not Shown

$

$

Not available

33

Troy-Bilt 1918048

Rectifier, 200V, 8A

$

$

Currently unavailable

34

Troy-Bilt 1918007

Screw, #8 Hi-Lo

$

$

Currently unavailable

35

Troy-Bilt 1918265

Screw, #10 self tapping type "F"

$

$

Currently unavailable

36

MTD 1918008

Assembly, 200uF capacitor

$

$

Not available

37

Troy-Bilt 1918009

Cover, end

$

$

Currently unavailable

38

Troy-Bilt 1918261

Nut, wing 5/16-18

$

$

Currently unavailable

39

Troy-Bilt 1918278

Screw, 5/16-18 x 2-1/2" HHC

$

$

Currently unavailable

40

Troy-Bilt 1918260

Washer, 5/16 flat

$

$

Currently unavailable

41

Troy-Bilt 1918258

Nut, 5/16-18 serrated flange

$

$

Currently unavailable

42

MTD 1918190

Washer, 5/16 external tooth

$

$

Not available

43

MTD 1918209

Tubing, loom

$

$

Not available

44

MTD 1918038

Connector, snap in

$

$

Not available

45

Troy-Bilt 1918036

Panel, electrical power

$

$

Currently unavailable

46

Troy-Bilt 1918265

Screw, #10 self tapping

$

$

Currently unavailable

47

Troy-Bilt 1918268

Bolt, #8 hex head

$

$

Currently unavailable

48

Troy-Bilt 1918050

Cover, power panel rear

$

$

Currently unavailable

49

Troy-Bilt 1918277

Nut, #8 Nyloc hex

$

$

Currently unavailable

50

MTD 1918018

Receptacle, 120V-15A duplex

$

$

Not available

51

MTD 1918017

Breaker, circuit

$

$

Not available

52

MTD 1918117

Harness, power panel electrical wiring

Note: Not Shown

$

$

Not available

53

MTD 1918041

Holder, extension cord

$

$

Not available

Troy-Bilt DK376774AV

Decal, tear tag

Note: Not Shown

$

$

Currently unavailable

Troy-Bilt DK399410AV

Decal, 120V black

Note: Not Shown

$

$

Currently unavailable

Troy-Bilt DK399533AV

Decal, handle placard

Note: Not Shown

$

$

Currently unavailable

Troy-Bilt DK660104AJ

Decal, UPC

Note: Not Shown

$

$

Currently unavailable

Troy-Bilt DK660204AJ

Decal, Model

Note: Not Shown

$

$

Currently unavailable

Troy-Bilt IN950700AV

Manual, generator core

Note: Not Shown

$

$

Currently unavailable

Troy-Bilt IN951200AV

Manual, generator vertical satellite

Note: Not Shown

$

$

Currently unavailable
