52401 - Troy-Bilt 6,000 Watt Portable Generator (SN: 524010100101 & Above) MAIN ASSEMBLY Parts Diagram

6,000 Watt Portable Generator

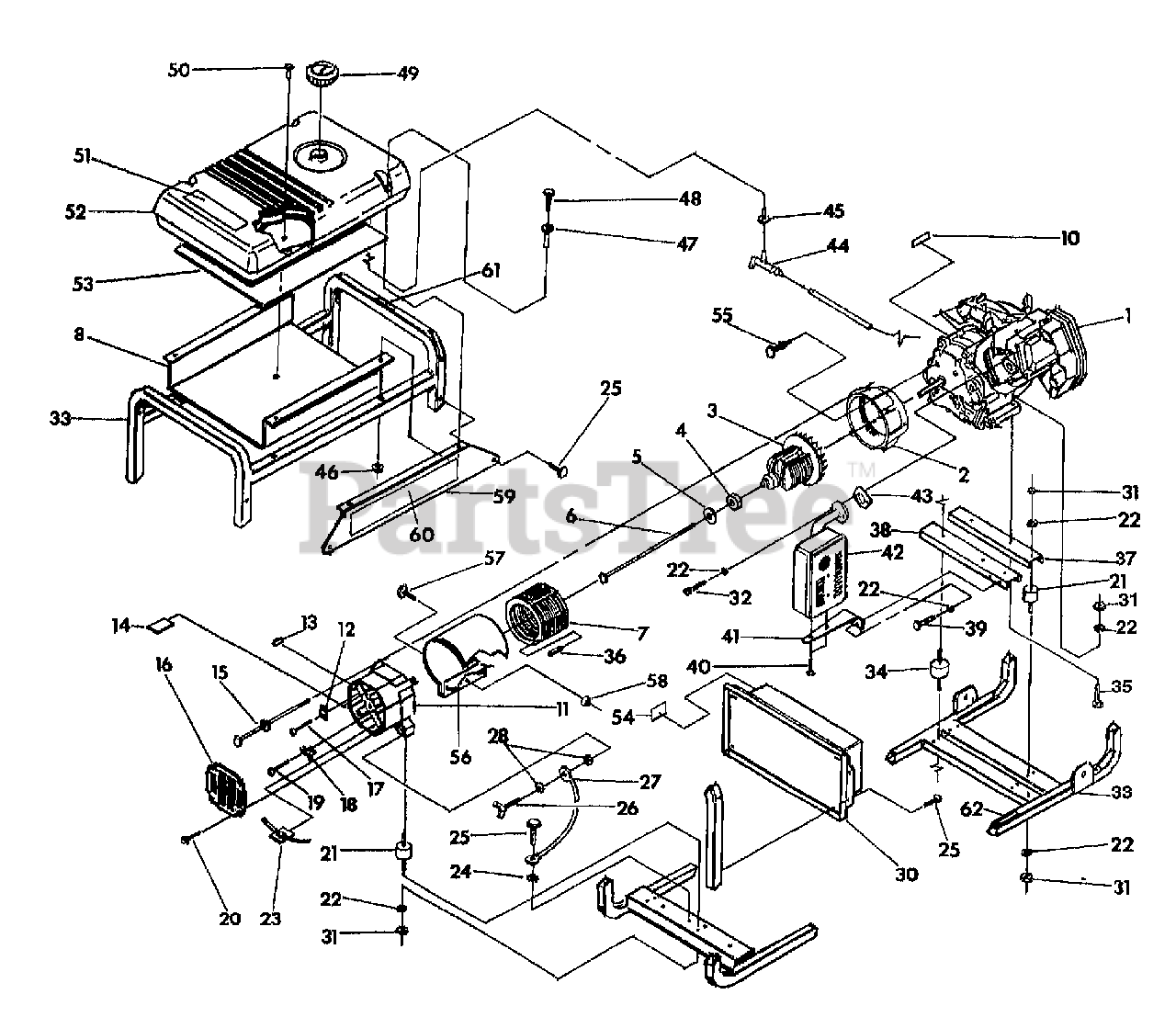

MAIN ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 1903150

ENG-GN360HS LONG BLOCK STR SHF

$

$

Currently unavailable

2

MTD 1903158

HSG-ENG ADAPTOR (6000W GEN)

$

$

Not available

3

Troy-Bilt 1903159

ASSM-ROTOR (6000W GEN)

$

$

Currently unavailable

4

Troy-Bilt 1903160

BEARING-SHAFT

$

$

Currently unavailable

5

MTD 1903161

WASHER-FLAT M8

$

$

Not available

6

MTD 1903162

SCR-HH 5/16-24X9.5

$

$

Not available

7

Troy-Bilt 1903163

ASSM-STATOR (6000W GEN)

$

$

Currently unavailable

8

Troy-Bilt 1903164

SHIELD-HEAT (6000W GEN)

$

$

Currently unavailable

9

0

NOT USED

$

$

Not available

10

Troy-Bilt 1903165

DECAL-DATA (6000W GEN)

$

$

Currently unavailable

11

MTD 1903166

CARRIER-REAR BRG (6000W GEN)

$

$

Not available

12

Troy-Bilt 1903171

RECTIFIER-BATTERY CHARGE (GEN)

$

$

Currently unavailable

13

MTD 1903167

GROMMET-RUBBER (4000/6000W GEN

$

$

Not available

14

Troy-Bilt 1903168

MODULE-POWER (4000/6000W GEN)

$

$

Currently unavailable

15

MTD 1903169

SCR M6-1.0X165MM LG (6000W GEN

$

$

Not available

16

Troy-Bilt 1903170

COVER-REAR BRG CARRIER

$

$

Currently unavailable

17

MTD 1903178

SCR-TAPTITE M5-0.8X20 LONG (GE

$

$

Not available

18

Troy-Bilt 1903179

ASSM-BRUSH HOLDER (GENERATOR)

$

$

Currently unavailable

19

MTD 1903172

SCR-TAPTITE M5-0.7X16 LONG (GE

$

$

Not available

20

MTD 1903173

SCR-TAPTITE M5-0.8X10 LONG (GE

$

$

Not available

21

MTD 1903174

MOUNT-VIBRATION (6000W GEN)

$

$

Not available

22

MTD 1903175

WASHER-LK

$

$

Not available

23

MTD 1903176

MOUNT-CABLE TIE

$

$

Not available

24

MTD 1903177

WASHER-#10 SHAKEPROOF INT (600

$

$

Not available

25

MTD 1902472

SCR-CAP M10-16 SELF DRILL

$

$

Not available

26

MTD 1903180

SCR-WING M6-1.0X16 LONG (GEN)

$

$

Not available

27

MTD 1903181

WIRE-GROUND (GENERATOR)

$

$

Not available

28

MTD 1903182

WASHER-SHAKEPROOF M6 (GEN)

$

$

Not available

29

0

NOT USED

$

$

Not available

30

MTD 1903183

ASSM-CONTROL BOX (6000W GEN)

$

$

Not available

31

MTD 1903184

NUT-5/16X18 HEX (6000W GEN)

$

$

Not available

32

MTD 1903185

SCR-SKT HD M8-1.25X20 LONG (GE

$

$

Not available

33

MTD 1903186

CRADLE (6000W GENERATOR)

$

$

Not available

34

MTD 1903187

MOUNT-VIBRATION (6000W GEN)

$

$

Not available

35

MTD 1903188

SCR-HH 5/16-18X1.75

$

$

Not available

36

MTD 1903189

PIN-ROLL M4X10 (4000W GEN)

$

$

Not available

37

MTD 1903190

SUPT-ENGINE (6000W GEN)

$

$

Not available

38

Troy-Bilt 1903191

SUPT-ENG & MUFFLER (6000W GEN)

$

$

Currently unavailable

39

MTD 1903192

SCR-HH 5/16-18X.75

$

$

Not available

40

MTD 1903193

SCR-HH/LW M6-1.00 12MM LG (GEN)

$

$

Not available

41

MTD 1903194

BRKT-MUFFLER (6000W GEN)

$

$

Not available

42

Troy-Bilt 1903195

MUFFLER (6000W GENERATOR)

$

$

Currently unavailable

43

MTD 1903196

GASKET-MUFFLER (6000W GEN)

$

$

Not available

44

Troy-Bilt 1903197

VALVE-TANK

$

$

Currently unavailable

45

Troy-Bilt 1903198

BUSHING-PLASTIC TANK (PRS WSHR

$

$

Currently unavailable

46

MTD 1903199

NUT-HF/LK M6 FLANGE

$

$

Not available

47

MTD 1902482

GROMMET-TANK

$

$

Not available

48

MTD 1903200

SCR-HH M6-1.00X60MM LONG (GEN)

$

$

Not available

49

MTD 1903201

CAP-FUEL (6000W GENERATOR)

$

$

Not available

50

MTD 1902489

CLIP-INSULATION

$

$

Not available

51

MTD 1902764

DECAL-DANGER GENERATOR

$

$

Not available

52

MTD 1903203

TANK-FUEL (6000W GENERATOR)

$

$

Not available

53

MTD 1903204

INSULATION 2-1/4" THK (6000W G

$

$

Not available

54

0

NOT USED

$

$

Not available

55

MTD 1902491

SCR 5/16-24X.75 W/LK WSHR

$

$

Not available

56

MTD 1903206

WRAP-STATOR (6000W GEN)

$

$

Not available

57

MTD 1903207

SCR-HH M5-0.8X12MM

$

$

Not available

58

MTD 1903208

NUT-LK M5-.8

$

$

Not available

59

MTD 1903209

PANEL-SIDE (6000W GEN)

$

$

Not available

60

MTD 1902645

DECAL-TROY/BILT LOGO

$

$

Not available

61

Troy-Bilt 1902647

DECAL-PLACE HAND HERE

$

$

Currently unavailable

62

MTD 1902648

DECAL-WARNING HOT SURFACE

$

$

Not available
