52400 - Troy-Bilt 4,000 Watt Portable Generator (SN: 524000100101 & Above) HANDLE AND WHEEL Parts Diagram

4,000 Watt Portable Generator

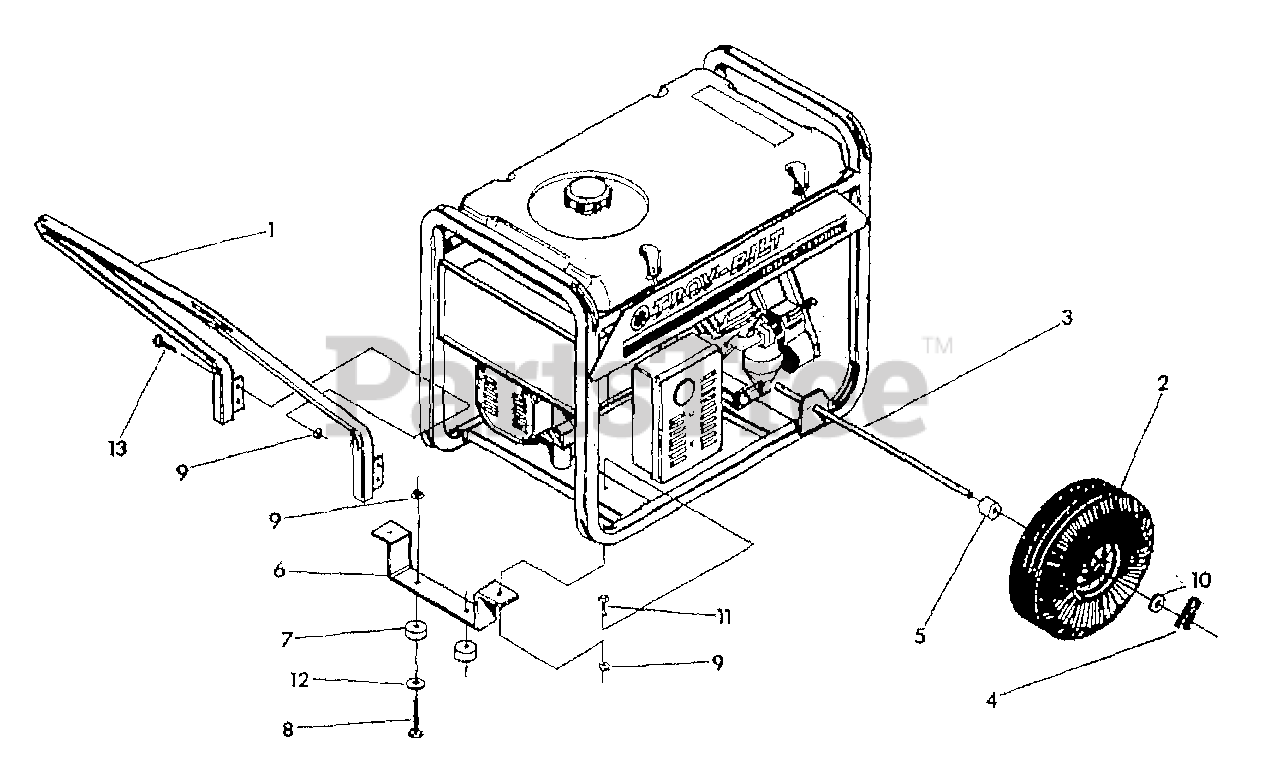

HANDLE AND WHEEL Parts Diagram

  • Title
1

Troy-Bilt 1903257

HANDLE (4000W GENERATOR)

$

$

Currently unavailable

$

$

Currently unavailable

3

Troy-Bilt 1903259

AXLE (4000W GENERATOR)

$

$

Currently unavailable

4

MTD 1903260

PIN-RETAINING

$

$

Not available

5

MTD 1903261

SPACER

$

$

Not available

6

$

$

Currently unavailable

7

MTD 1902494

MOUNT-VIBRATION

$

$

Not available

8

MTD 1902495

SCR-HH M8-1.25X30MM

$

$

Not available

9

MTD 1902470

NUT-HF/LK M8-1.25

$

$

Not available

10

MTD 1903263

WASHER-WHEEL (GENERATOR)

$

$

Not available

11

MTD 1902493

SCR-HH M8-1.25X20MM

$

$

Not available

12

MTD 1902474

WASHER-M8 VIBRATION MOUNT

$

$

Not available

13

MTD 1902469

SCR-CAP M8-1.25X45MM

$

$

Not available
