52400 - Troy-Bilt 4,000 Watt Portable Generator (SN: 524000100101 & Above) ENGINE (2) Parts Diagram

4,000 Watt Portable Generator

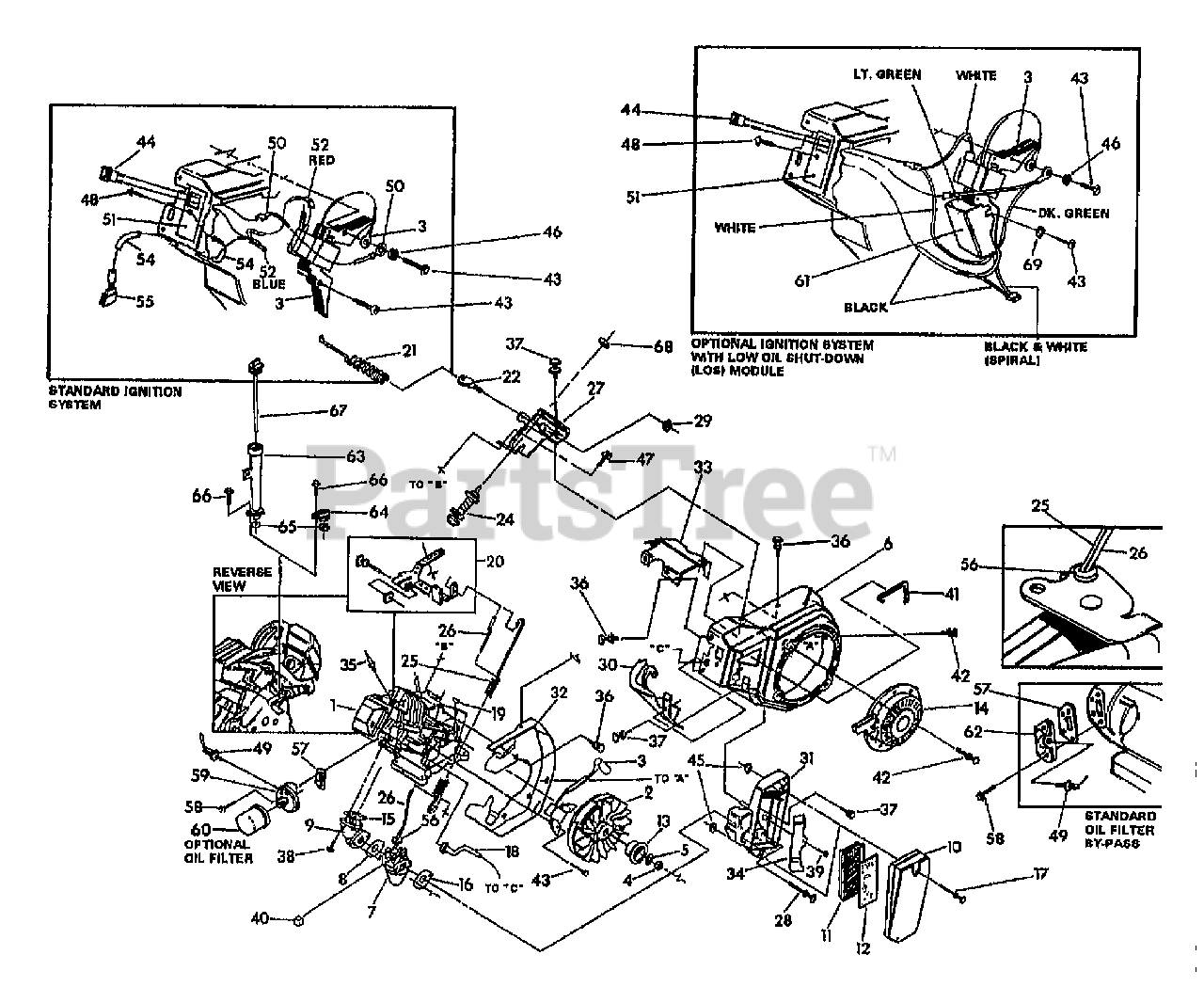

ENGINE (2) Parts Diagram

  • Title

1

Troy-Bilt 1903149

ENG-GN220 LONG BLOCK STR SHFT

$

$

Currently unavailable

2

Troy-Bilt 1902828

ASSM-FLYWHL 28 DEG TIMING(GEN)

$

$

Currently unavailable

3

Troy-Bilt 1902531

ASSM-IGNITION COIL

$

$

Currently unavailable

4

MTD 1902532

NUT-HEX M16-1.5

$

$

Not available

5

Troy-Bilt 1902533

WASHER-CONICAL

$

$

Currently unavailable

6

Troy-Bilt 1902829

HSG-BLOWER (4000W GEN)

$

$

Currently unavailable

7

Troy-Bilt 1902830

ASSM-CARBURETOR GN220HS

$

$

Currently unavailable

8

MTD 1902534

GASKET-CARB/MANIFOLD

$

$

Not available

9

MTD 1902831

MANIFOLD-INTAKE HS(4000W GEN)

$

$

Not available

10

MTD 1902523

COVER-AIR CLEANER

$

$

Not available

11

Troy-Bilt 1902832

ELEMENT-AIR FILTER (4000W GEN)

$

$

Currently unavailable

12

Troy-Bilt 1902525

PRE-CLEANER AIR FILTER

$

$

Currently unavailable

13

MTD 1902536

CUP-RECOIL

$

$

Not available

14

Troy-Bilt 1902460

ASSM-RECOIL

$

$

Currently unavailable

15

Troy-Bilt 1902833

GASKET-MANIFOLD/HEAD (4000W GE

$

$

Currently unavailable

16

MTD 1902834

GASKET-CARB/AIR CLEANER (4000W

$

$

Not available

17

MTD 1902539

SCR-AIR CLEANER COVER

$

$

Not available

18

Troy-Bilt 1902835

HOSE-BREATHER (4000W GEN)

$

$

Currently unavailable

19

MTD 1902541

KEY-WOODRUFF 4X19

$

$

Not available

20

MTD 1902836

ASSM-GOVERNOR LEVER (4000W GEN

$

$

Not available

21

MTD 1902543

SPRING-GOVERNOR 60HZ

$

$

Not available

21

MTD 1902837

SPRING-GOVERNOR 50HZ (4000W GE

$

$

Not available

22

MTD 1902544

SCR-GOVERNOR ADJ

$

$

Not available

24

MTD 1902838

COIL-IDLE CNTRL (4000W GEN)

$

$

Not available

25

MTD 1902839

SPRING-ANTI LASH EXTENSION

$

$

Not available

26

Troy-Bilt 1902548

ROD-GOVERNOR

$

$

Currently unavailable

27

MTD 1902849

FILTER-OIL (OPTIONAL)

$

$

Not available

?28

MTD 1902550

SCR-GOVERNOR ADJ

$

$

Not available

29

MTD 1902551

NUT-LK M5-.8 MOUNTING

$

$

Not available

30

MTD 1902840

WRAPPER-LWR (4000W GEN)

$

$

Not available

31

Troy-Bilt 1902553

BASE-AIR CLEANER

$

$

Currently unavailable

32

MTD 1902554

PLATE-BACK BLOWER HSG

$

$

Not available

33

MTD 1902841

WRAPPER-TOP ASSM (4000W GEN)

$

$

Not available

34

MTD 1902556

COVER-BREATHER CANAL

$

$

Not available

35

MTD 1768541

PLUG-SPARK CHAMPION RC12YC

$

$

Not available

36

MTD 1902557

SCR M6-1.0X10MM TAPTITE

$

$

Not available

37

MTD 1902558

SCR M6-1.0X12MM W/LK WSHR

$

$

Not available

38

MTD 1902559

SCR M6-1.0X30MM W/LK WSHR

$

$

Not available

39

MTD 1902560

SCR-M8X.375 PLASTITE

$

$

Not available

40

MTD 1902561

KNOB-CHOKE LEVER

$

$

Not available

41

MTD 1902562

SEAL-AIR CLEAN/BLWR HSG

$

$

Not available

42

MTD 1902563

SCR M6-1.0X10MM W/LK WSHR

$

$

Not available

43

MTD 1902564

SCR M6-1.0X30MM TAPTITE

$

$

Not available

44

Troy-Bilt 1902565

SWITCH-SHUT OFF

$

$

Currently unavailable

45

MTD 1902566

NUT-HEX M6-1.0

$

$

Not available

46

MTD 1902567

WASHER

$

$

Not available

47

MTD 1902568

SCR-M8X15MM TAPTITE

$

$

Not available

48

MTD 1902842

ASSM-LED,LOW OIL IND. LIGHT

$

$

Not available

49

MTD 1902570

SWITCH-LOW OIL PRES 8-12PSI

$

$

Not available

50

MTD 1902843

ASSM-WIRE GROUND (4000W GEN)

$

$

Not available

51

MTD 1902572

DECAL-L.O.S. ENGINE

$

$

Not available

52

MTD 1902844

ASSM-WIRE IGNITION (4000W GEN)

$

$

Not available

54

MTD 1902845

#3 SLEEVING BLK 145 LG (4000W

$

$

Not available

55

MTD 1902575

HSG-3 PIN MALE

$

$

Not available

56

MTD 1902576

WASHER-CARBURETOR WEAR

$

$

Not available

57

MTD 1902846

GASKET-OIL FILTER PAD (4000W G

$

$

Not available

58

MTD 1902847

SCR-M6X1.0X20 TAPTITE

$

$

Not available

59

MTD 1902848

FILTER-ADAPTOR OIL (MC SERIES)

$

$

Not available

60

MTD 1902849

FILTER-OIL (OPTIONAL)

$

$

Not available

61

Troy-Bilt 1902751

DECAL-BELT CAUTION C/V II

$

$

Currently unavailable

62

MTD 1902580

PIN-PISTON

$

$

Not available

63

Troy-Bilt 1902851

TUBE-OIL FILL (OPTIONAL)

$

$

Currently unavailable

64

MTD 1902852

COVER-OIL FILL (4000W GEN)

$

$

Not available

65

MTD 1902853

GASKET-OIL FILL

$

$

Not available

66

MTD 1902854

SCR-M6 X 12 TAPTITE

$

$

Not available

67

MTD 1902855

DIPSTICK-OIL FILL(OPTIONAL)

$

$

Not available

68

MTD 1902856

NUT M8-1.25 HEX/JAM

$

$

Not available

69

MTD 1902857

WASHER-FLAT M6X12.5 OD

$

$

Not available
