524 WE (31AM63TR710) - Cub Cadet 24" Snow Thrower (2012) Handle Panel Parts Diagram

24" Snow Thrower

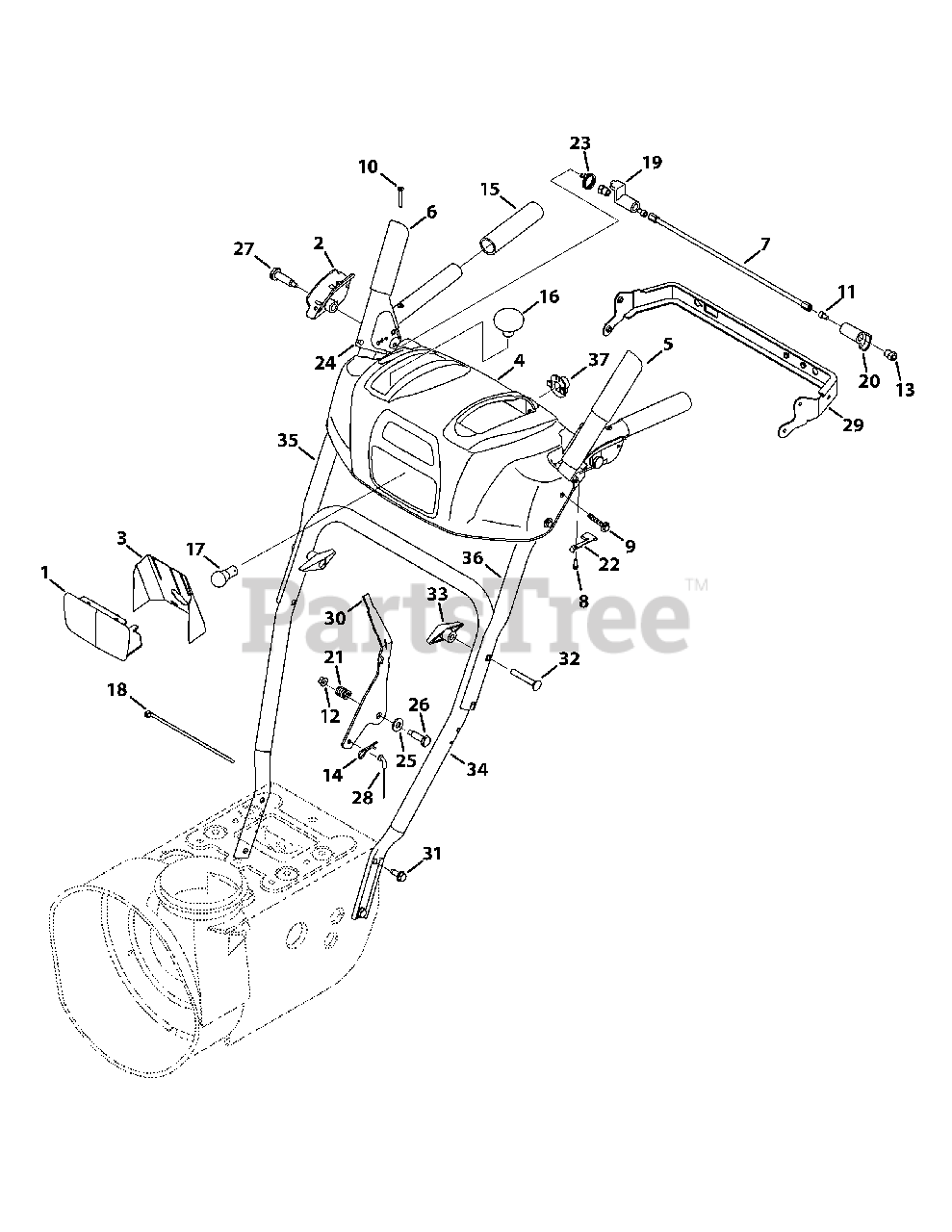

Handle Panel Parts Diagram

  • Title

1

Cub Cadet 731-05324

Lens

$14.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 631-04134B

Handle Clutch Lock - RH

$15.99

$

In Stock, only 1 left!

0

2

Cub Cadet 631-04133A

Handle Clutch Lock - LH

$15.99

$

In Stock, Qty 8

0

3

Cub Cadet 777X41804

Lens Reflector Label

$9.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 931-04187A

T-Style Panel Ass’y, (inc. Ref. 1 & 3)

$71.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 684-04105B

Handle Engagement Assembly LH
(Superseded to 684-04105D)

$22.99

$

In Stock, only 4 left!

0

6

Cub Cadet 684-04106C

Handle Engagement Assembly RH
(Superseded to 684-04106D)

$21.99

$

In Stock, only 2 left!

0

7

Cub Cadet 684-04250

Pivot Rod

$12.99

$

In Stock, only 4 left!

0

8

Cub Cadet 710-04326

Screw, Plastite, 8-16 x .50

$3.99

$

In Stock, only 2 left!

0

9

Cub Cadet 710-04586

Screw, 1/4-20 x 1.625

$6.99

$

In Stock, only 2 left!

0

10

Cub Cadet 710-1233

Screw, #10-24 x 1.375

$4.99

$

In Stock, Qty 11

0

11

Cub Cadet 710-3069

Screw, Socket, 1/4-20 x .50

$4.99

$

In Stock, Qty 11

0

12

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04081A

Shoulder Nut, 1/4-20

$7.49

$

In Stock, Qty 20+

0

14

Cub Cadet 914-0145

Click Pin
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 720-0274

Handle Grip

$11.99

$

In Stock, Qty 11

0

16

Cub Cadet 720-04039

Shift Knob

$10.99

$

In Stock, only 2 left!

0

17

Cub Cadet 925-1629

Lamp

$11.99

$

In Stock, Qty 14

0

18

Cub Cadet 926-0154

Cable Tie

$6.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 731-04894D

Lock Plate

$5.49

$

In Stock, Qty 11

0

20

Cub Cadet 731-04896B

Clutch Lock Cam
(Superseded to 731-04896C)

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 732-0193

Compression Spring

$4.99

$

In Stock, Qty 6

0

22

Cub Cadet 732-04219C

Clutch Lock Spring

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 732-04238

Torsion Spring
(Superseded to 732-04238B)

$5.49

$

In Stock, Qty 11

0

24

Cub Cadet 935-0199A

Rubber Bumper
(Superseded to 735-0199A)

$7.99

$

In Stock, only 4 left!

0

25

Cub Cadet 936-0267

Flat Washer, .385 x .87 x .06
(Superseded to 736-0267)

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 738-04125

Shoulder Screw, .374 x 1.05

$4.99

$

In Stock, only 3 left!

0

27

Cub Cadet 738-04348

Shoulder Screw, 1/4-20 x 1.345

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 946-04396A

Speed Selector Cable

$20.99

$

In Stock, Qty 20+

0

29

Cub Cadet 790-00248C-0637

Panel Bracket
(Superseded to 790-00248E-0637)

$24.99

$

In Stock, Qty 5

0

30

Cub Cadet 790-00311A-0637

Shift Lever
(Superseded to 790-00311C-0637)

$27.99

$

In Stock, only 4 left!

0

31

Cub Cadet 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 710-0572

Carriage Screw, 5/16-18 x 2.25

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 920-0284

Wing Knob
(Superseded to 720-0284)

$6.99

$

In Stock, Qty 20+

0

34

Cub Cadet 749-04138A-0637

Lower Handle
(Superseded to 749-04138C-0637)

$88.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 749-04190A-0637

Upper Handle RH

$45.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 749-04191A-0637

Upper Handle LH

$45.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 925-1649

Light Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

Cub Cadet 925-04137

Wire Harness

Note: (Not Shown)

$20.99

$

Usually ships in 3-6 days

0
