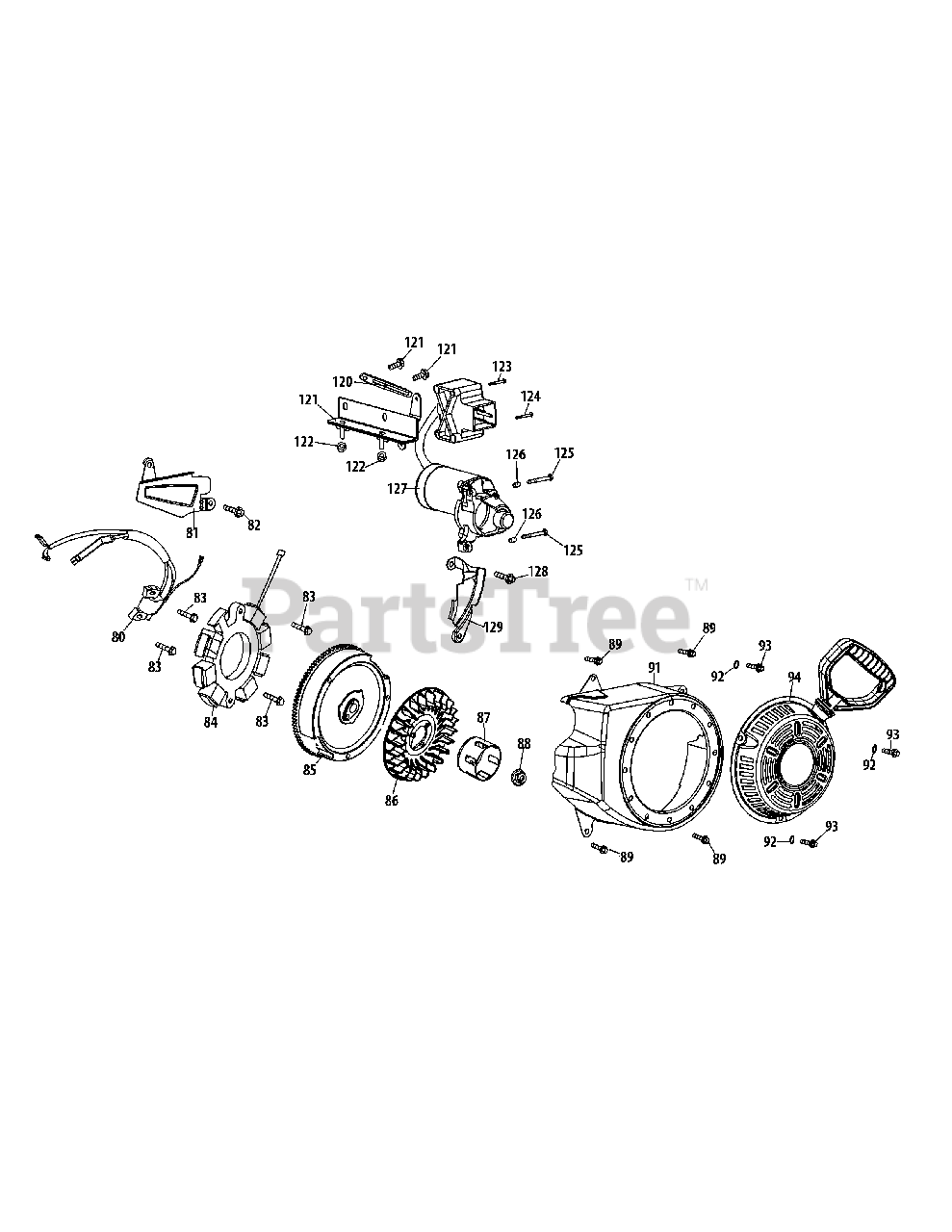

524 WE (31AM63TR710) - Cub Cadet 24" Snow Thrower (2012) 370-SUC Starter Assembly & Blower Housing Parts Diagram

24" Snow Thrower

370-SUC Starter Assembly & Blower Housing Parts Diagram

  • Title
80

Cub Cadet 951-10646

Ignition Coil Assembly
(Superseded to 951-10646A)

$105.99

$

In Stock, only 3 left!

0

81

Cub Cadet 951-11110

Air Flow Shield

$4.49

$

Usually ships in 3-6 days

0

82

Cub Cadet 710-04940

Bolt M6×10

$5.49

$

In Stock, only 3 left!

0

83

Cub Cadet 710-04919

Bolt M6×25

$4.49

$

Usually ships in 3-6 days

0

84

Cub Cadet 951-12050A

Alternator Assembly

$97.99

$

Usually ships in 3-6 days

0

85

$135.99

$

Usually ships in 3-6 days

0

86

Cub Cadet 951-10934

Cooling Fan
(Superseded to 951-10909A)

$23.99

$

Usually ships in 3-6 days

0

87

Cub Cadet 951-10911

Starter Cup

$17.99

$

Usually ships in 3-6 days

0

88

Cub Cadet 712-04209

Flywheel Nut, M14×1.5
(Superseded to 712-04287)

$6.99

$

In Stock, only 1 left!

0

89

Cub Cadet 710-04915

Bolt M6×12

$4.49

$

In Stock, Qty 20+

0

91

Cub Cadet 951-10663A

Blower Housing
(Superseded to 951-12644)

$60.99

$

Usually ships in 3-6 days

0

92

Cub Cadet 736-04455

Washer 6
(Superseded to 736-04455B)

$6.99

$

Usually ships in 3-6 days

0

93

Cub Cadet 710-04974

Bolt M6×10

$6.99

$

In Stock, only 3 left!

0

94

Cub Cadet 751-14151

Recoil Starter Assembly
(Superseded to 951-14151)

$85.99

$

In Stock, Qty 20+

0

119

Cub Cadet 710-04914

Bolt M6×10

$4.49

$

In Stock, only 3 left!

0

120

Cub Cadet 951-11680

Electric Starter Cord Retainer

$4.49

$

Usually ships in 3-6 days

0

121

Cub Cadet 951-11114

Switch Housing Mounting Bracket

$17.99

$

Usually ships in 3-6 days

0

122

$6.99

$

In Stock, Qty 20+

0

123

Cub Cadet 710-04965

Bolt M4×55

$6.99

$

In Stock, only 1 left!

0

124

Cub Cadet 710-04935

Bolt M4×60

$4.49

$

In Stock, only 1 left!

0

125

Cub Cadet 710-05182

Bolt M6×32

$4.49

$

In Stock, only 1 left!

0

126

Cub Cadet 715-04088

Dowel Pin 8×8
(Superseded to 715-04088A)

$3.49

$

Usually ships in 3-6 days

0

127

Cub Cadet 951-10645A

Electric Starter

$304.99

$

In Stock, only 1 left!

0

128

Cub Cadet 710-04915

Bolt M6×12

$4.49

$

In Stock, Qty 20+

0

129

Cub Cadet 951-11109

Blower Housing Shield

$7.49

$

Usually ships in 3-6 days

0
