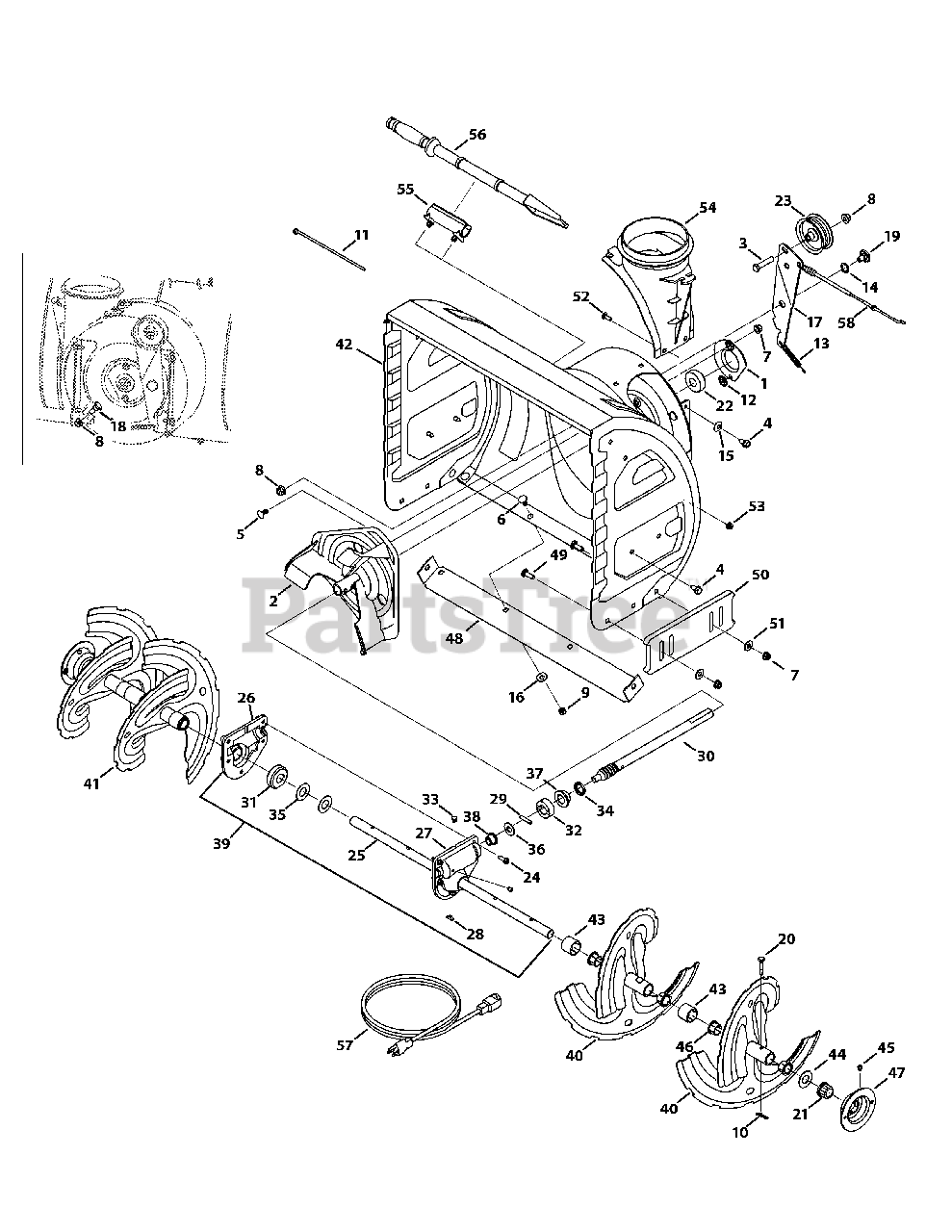

524 WE (31AM63TR710) - Cub Cadet 24" Snow Thrower (2011) Auger & Housing Parts Diagram

24" Snow Thrower

Auger & Housing Parts Diagram

  • Title

1

Cub Cadet 790-00075

Bearing Housing, 1.85 ID
(Superseded to 790-00075B)

$6.49

$

In Stock, Qty 12

0

2

Cub Cadet 684-04057A-0637

Impeller Assembly, 12" Dia.
(Superseded to 684-04057C-0637)

$73.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0347

Hex Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-04484

Taptite Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0451

Carriage Bolt, 5/16-18 x .75, Grade 5

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-04525

Carriage Bolt, 5/16-18 x .750, Steel

$6.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-04103

Hex Nut, 5/16-18
(Superseded to 712-05158)

$4.49

$

In Stock, Qty 10

0

10

Cub Cadet 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

11

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 926-04012

Push-On Nut, .25 Dia.
(Superseded to 726-04012)

$

$

Not available

13

Cub Cadet 732-04460

Extension Spring, .38 OD x 4.59

$5.49

$

In Stock, Qty 20+

0

14

Cub Cadet 736-0174

Wave Washer, .625 x .885 x .0175

$6.99

$

In Stock, Qty 12

0

15

Cub Cadet 736-0242

Washer, Bell, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 736-04216

Bell Washer, .340 x .872 x .06, Steel

$6.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 790-00080A-0637

Auger Idler Bracket
(Superseded to 790-00080D)

$28.99

$

In Stock, Qty 11

0

18

Cub Cadet 738-0143

Shoulder Bolt, 3/8-16 x .496 x .336

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 938-0281

Shoulder Screw, 3/8-16 x .625 x .17
(Superseded to 738-0281)

$

$

Not available

20

Cub Cadet 738-04124A

Shear Pin, .25 x 1.50

$1.99

$

In Stock, Qty 20+

0

21

Cub Cadet 941-0245

Hex Flange Bearing x .75 ID

$9.99

$

In Stock, Qty 20+

0

22

Cub Cadet 941-0309

Flange Ball Bearing, .75 ID x 1.85 OD

$74.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 756-04224

Flat Pulley, 2.75 OD

$26.99

$

In Stock, Qty 20+

0

24

Cub Cadet 710-0642

Taptite Screw, 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 711-04285

Auger Axle
(Superseded to 711-04285A)

$90.99

$

In Stock, only 3 left!

0

26

Cub Cadet 918-0123A

Housing Assembly, RH

$52.99

$

In Stock, Qty 20+

0

27

Cub Cadet 918-0418A

Housing Assembly, LH

$62.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 914-0161

Hi-Pro Key, 3/16 x 5/8

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 715-04021

Dowel Pin, .25OD x 1.25

$4.49

$

In Stock, Qty 16

0

30

Cub Cadet 917-04126

Worm Shaft, .75 OD

$79.99

$

In Stock, Qty 11

0

31

Cub Cadet 917-04861

Worm Gear, 20T

$43.99

$

In Stock, Qty 20+

0

32

Cub Cadet 718-04071

Thrust Collar, .756 ID x .600

$7.99

$

In Stock, Qty 9

0

33

Cub Cadet 721-0325

Plug, 1/4 x .437

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 721-0327

Oil Seal, .75 x 1.131 x .188

$6.99

$

In Stock, Qty 20+

0

35

Cub Cadet 936-0351

Flat Washer, .760 ID x 1.50 OD
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 736-3084

Flat Washer, .51 x 1.12 x .06

$4.99

$

In Stock, Qty 20+

0

37

Cub Cadet 741-0662

Flange Bearing, .75 ID x 1.0 OD x .59

$10.99

$

In Stock, Qty 18

0

38

Cub Cadet 741-0663

Flange Bearing, .50 ID x .75 OD x .59

$9.99

$

In Stock, Qty 20+

0

39

Cub Cadet 918-04191B

Gear Box; includes Ref. 24 - 38
(Superseded to 918-04171C)

$407.99

$

In Stock, only 2 left!

0

40

Cub Cadet 684-04107-0637

Spiral Assembly (Left)
(Superseded to 684-04107A-0637)

$89.99

$

In Stock, Qty 20+

0

41

Cub Cadet 684-04108-0637

Spiral Assembly (Right)
(Superseded to 684-04108A-0637)

$94.99

$

In Stock, Qty 10

0

42

Cub Cadet 684-04259

Auger Housing, 24" Cub
(Superseded to 684-04259A)

Variations

Cub Cadet 684-04259-4021

HOUSING ASSY-AUGER - CUB YELLOW 2 (4021)

$446.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-04259-0665

HOUSING ASSY-AUGER - YARDMAN GREEN (0665)

$361.99

$

Usually ships in 3-6 days

0

$361.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 731-04870

Spacer, 1.25OD x .75ID x 1.00

$4.99

$

In Stock, Qty 20+

0

44

Cub Cadet 736-0188

Flat washer, .76 x 1.49 x .06

$4.49

$

In Stock, Qty 20+

0

45

Cub Cadet 937-3000

Drive Lube Fitting, 3/16

$4.99

$

In Stock, Qty 20+

0

46

Cub Cadet 741-0493A

Flange Bushing, .800 ID x .910 OD
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

47

Cub Cadet 790-00138A-0637

Bearing Housing

$15.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 790-00120-4021

Shave Plate, 24"
(Superseded to 790-00120-0637)

$34.99

$

In Stock, Qty 20+

0

49

Cub Cadet 710-0276

Screw, Carriage, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

50

Cub Cadet 731-06931

Deluxe Shoe
(Superseded to 731-11514)

$29.99

$

In Stock, Qty 7

0

51

Cub Cadet 936-0159

Washer, Flat, .349 x .879 x .063
(Superseded to 736-0159)

$

$

Not available

52

Cub Cadet 710-0703

Carriage Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

54

Cub Cadet 731-07525

Chute Adaptor, 5" Dia.

$18.99

$

In Stock, Qty 17

0

55

Cub Cadet 731-2635

Cleanout Tool Mount
(Superseded to 731-11421)

$11.99

$

In Stock, Qty 20+

0

56

Cub Cadet 931-2643

Cleanout Tool

$19.99

$

In Stock, Qty 16

0

57

Cub Cadet 929-0071A

Extension Cord
(Superseded to 929-0071B)

$21.99

$

In Stock, only 1 left!

0

58

Cub Cadet 946-04230A

Auger Drive Cable
(Superseded to 946-04230B)

$23.99

$

In Stock, Qty 20+
