524 T (315-716E100) - Cub Cadet 24" Snow Thrower Engine (1995) Carburetor Parts Diagram

24" Snow Thrower Engine

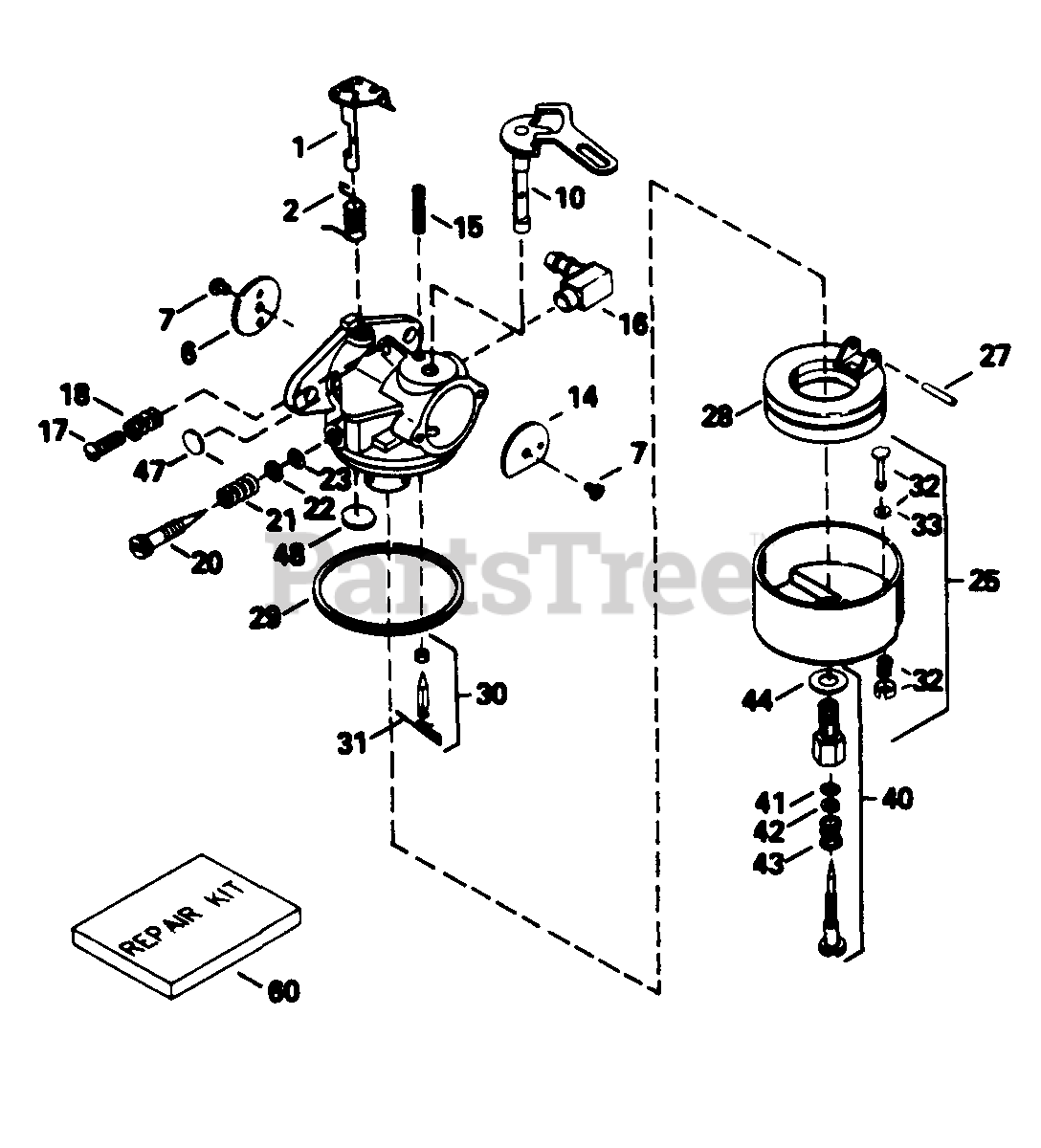

Carburetor Parts Diagram

  • Title

1

Cub Cadet TC-631615

Throttle Shaft & Lever Ass'y.

$9.49

$

Usually ships in 3-12 days

0

2

Cub Cadet TC-631767

Throttle Return Spring

$1.99

$

In Stock, only 4 left!

0

6

Cub Cadet TC-631036

Throttle Shutter

$1.99

$

In Stock, only 1 left!

0

7

Cub Cadet TC-650506

Throttle 8 Choke Shutter Screw

$1.49

$

In Stock, Qty 17

0

10

Cub Cadet TC-632108

Choke Shaft & Lever Ass'y.

$

$

Currently unavailable

14

Cub Cadet TC-631815

Choke Shutter

$1.99

$

In Stock, only 3 left!

0

15

Cub Cadet TC-630735

Choke Positioning Spring

$1.99

$

In Stock, only 4 left!

0

16

Cub Cadet TC-631807

Fuel Fitting

$8.49

$

In Stock, only 2 left!

0

17

Cub Cadet TC-650417

Idle Speed Screw
(Superseded to TC-651025)

$1.99

$

In Stock, Qty 5

0

18

Cub Cadet TC-630766

Tension Spring

$1.99

$

In Stock, only 2 left!

0

20

Cub Cadet TC-631838

Idle Mixture Screw

Note: Included In Repair Kit, P/N TC-31840

$3.99

$

In Stock, only 2 left!

0

21

Cub Cadet TC-630766

Idle Tension Spring

$1.99

$

In Stock, only 2 left!

0

22

Cub Cadet TC-630739

Washer, Idle Screw

$1.99

$

In Stock, Qty 7

0

23

Cub Cadet TC-630740

O-Ring, Idle Screw

Note: Included In Repair Kit, P/N TC-31840

$2.49

$

Usually ships in 3-12 days

0

25

Cub Cadet TC-631951

Float Bowl Ass'y.

Note: (Incl. Nos. 32 & 33)

$17.99

$

Usually ships in 3-12 days

0

27

Cub Cadet TC-631024

Shaft, Float

Note: Included In Repair Kit, P/N TC-31840

$1.99

$

In Stock, Qty 11

0

28

Cub Cadet TC-632019

Float
(Superseded to TC-632019A)

$7.49

$

In Stock, Qty 12

0

29

Cub Cadet TC-631028

O-Ring, Float Bowl to Body
(Superseded to TC-631028A)

Note: Included In Repair Kit, P/N TC-31840

$2.49

$

In Stock, Qty 15

0

30

Cub Cadet TC-631021

Inlet Needle, Seat & Clip
(Superseded to TC-631021B)

Note: (Incl. No. 31) ; Included In Repair Kit, P/N TC-31840

$6.99

$

In Stock, Qty 6

0

31

Cub Cadet TC-631022

Spring Clip

$1.99

$

In Stock, only 4 left!

0

32

Cub Cadet TC-27136A

Bowl Drain Ass'y.

Note: (Incl. No. 33)

$7.49

$

In Stock, only 1 left!

0

33

Cub Cadet TC-27554

Drain Plunger Gasket

$1.49

$

In Stock, Qty 16

0

40

Cub Cadet TC-31839

Main Adj. Screw Ass'y.

Note: (Incl. Nos. 41, 42 & 43) ; Included In Repair Kit, P/N TC-31840

$15.99

$

Usually ships in 3-12 days

0

41

Cub Cadet TC-630740

O-Ring, High Speed Mixture Screw

Note: Included In Repair Kit, P/N TC-31840

$2.49

$

Usually ships in 3-12 days

0

42

Cub Cadet TC-630739

Washer, High Speed Mixture Screw

$1.99

$

In Stock, Qty 7

0

43

Cub Cadet TC-630738

Tension Spring, High Speed Mixture Screw

$1.99

$

In Stock, Qty 9

0

44

Cub Cadet TC-27110

Bowl Nut Washer
(Superseded to TC-27110A)

Note: Included In Repair Kit, P/N TC-31840

$2.49

$

Usually ships in 3-12 days

0

47

Cub Cadet TC-630748

Welch Plug, Idle Mixture Well

Note: Included In Repair Kit, P/N TC-31840

$1.99

$

In Stock, only 3 left!

0

48

Cub Cadet TC-631027

Welch Plug, Atmospheric Vent

Note: Included In Repair Kit, P/N TC-31840

$1.99

$

In Stock, only 2 left!

0

60

Cub Cadet TC-31840

Repair Kit

Note: Includes Ref Nos 20, 23, 27, 29, 30, 41, 44, 47 & 48

$20.99

$

In Stock, only 3 left!

0

Cub Cadet TC-632107A

Carburetor Comp.
(Superseded to TC-640084B)

$109.99

$

Usually ships in 3-12 days

0
