524 T (315-716E100) - Cub Cadet 24" Snow Thrower (1995) Track And Frame I Parts Diagram

24" Snow Thrower

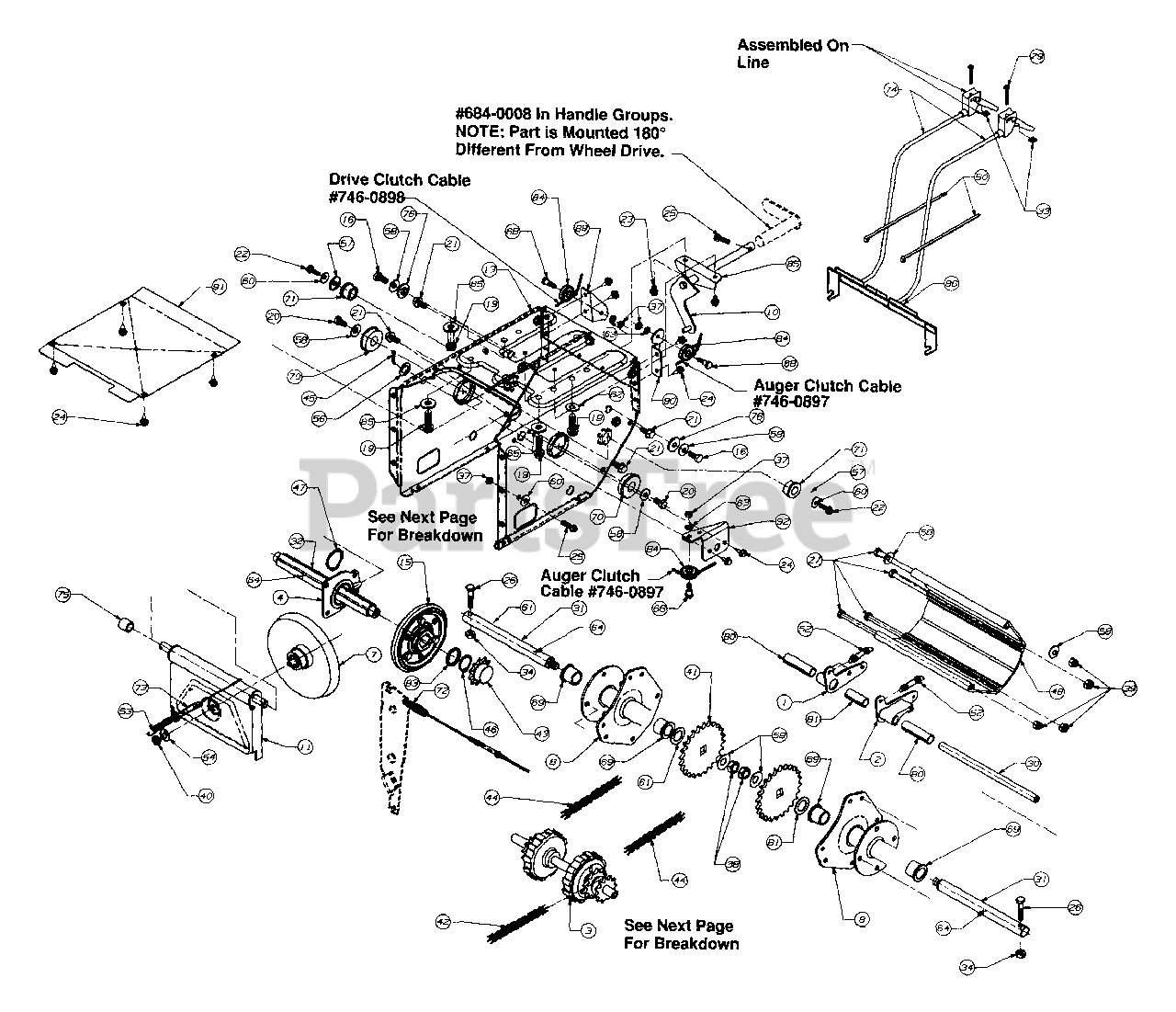

Track And Frame I Parts Diagram

  • Title

1

Cub Cadet 618-0043

Dog Assembly, R.H.

$23.99

$

In Stock, only 1 left!

0

2

Cub Cadet 618-0044

Dog Assembly, L.H.

$24.99

$

In Stock, only 1 left!

0

3

Cub Cadet 618-0045

Drive Shaft Assembly

$

$

Not available

4

Cub Cadet 618-0063

Bearing Friction Wheel

$92.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 656-0009

Friction Wheel Disc
(Superseded to 956-0012A)

$125.99

$

In Stock, Qty 6

0

8

Cub Cadet 683-0024

Hub Track
(Superseded to 683-0024-0637)

Variations

Cub Cadet 683-0024-0637

Track Hub Assembly - POWDER BLACK (0637)

$84.99

$

Usually ships in 3-6 days

0

$84.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 684-0014

Rod Shift, Track Drive
(Superseded to 684-0014B-0637)

$47.99

$

In Stock, only 1 left!

0

11

Cub Cadet 684-0021

Bracket Friction Wheel
(Superseded to 984-0021-0637)

Variations

Cub Cadet 684-0021-0637

Support Bracket Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

13

Cub Cadet 684-0031

Frame Assembly
(Superseded to 984-0031)

Variations

Cub Cadet 684-0031-0483

USE 753-06327 KIT-REPLACEMENT - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 684-0031-0499

USE 753-06327 KIT-REPLACEMENT - CUB BEIGE (0499)

$

$

Not available

Cub Cadet 684-0031-0637

USE 753-06327 KIT-REPLACEMENT - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 684-0031-0650

USE 753-06327 KIT-REPLACEMENT - RED METALLIC (0650)

$

$

Not available

Cub Cadet 684-0031-0662

USE 753-06327 KIT-REPLACEMENT - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 684-0031-0665

USE 753-06327 KIT-REPLACEMENT - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 684-0031-0721

USE 753-06327 KIT-REPLACEMENT - SEARS RED (0721)

$

$

Not available

$122.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 684-0042

Wheel Friction
(Superseded to 984-0042C)

$138.99

$

In Stock, Qty 17

0

16

Cub Cadet 710-0118

Hex Cap Screw
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 710-0502A

Hex Self-Tap Screw

$6.99

$

In Stock, only 2 left!

0

20

Cub Cadet 710-0538

Hex Self-Tap Screw

$4.49

$

In Stock, Qty 7

0

21

Cub Cadet 710-0604

Screw, Hex
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 710-0642

Screw, Hex

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 710-0653

Screw, Hex

$4.49

$

In Stock, Qty 7

0

24

Cub Cadet 710-0776A

Hex, Screw
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 710-0788

Screw, Hex

$7.49

$

In Stock, only 2 left!

0

26

Cub Cadet 710-1227

Screw, Hex

$

$

Not available

27

Cub Cadet 710-1230

Screw, Hex

$

$

Not available

29

Cub Cadet 710-1233

Scr., Oval

$4.99

$

In Stock, Qty 11

0

30

Cub Cadet 711-0911

Shaft

$

$

Not available

31

Cub Cadet 711-0941

Axle, Drive

$

$

Not available

32

Cub Cadet 711-0944A

Shaft

$

$

Not available

33

Cub Cadet 712-0127

Nut, Flange

$3.49

$

In Stock, Qty 13

0

34

Cub Cadet 712-0158

Nut, Hex Lock
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

37

Cub Cadet 712-0298

Nut, Hex Jam
(Superseded to 912-0298)

$6.49

$

Usually ships in 3-6 days

0

38

Cub Cadet 712-0346

Hex Ins. Jam

$4.99

$

In Stock, Qty 6

0

39

Cub Cadet 712-0429

Hex L-Nut

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 712-0711

Jam Nut, Hex

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 713-0115

Sprocket

$

$

Not available

42

Cub Cadet 713-0267

Chain, Endless

$

$

Not available

43

Cub Cadet 713-0415

Drive Sprocket

$

$

Not available

44

Cub Cadet 713-0437

Chain, Endless

$37.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 714-0474

Pin, Cotter

$4.99

$

In Stock, Qty 13

0

46

Cub Cadet 716-0102

Ring, Snap

$5.49

$

In Stock, Qty 20+

0

47

Cub Cadet 716-0185

Ring, Retainer

$3.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 719-0295

Housing, Track
(Superseded to 719-0295A)

$

$

Not available

50

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

52

Cub Cadet 732-0209

Spring
(Superseded to 932-0209)

$7.99

$

In Stock, only 2 left!

0

53

Cub Cadet 732-0264

Extension Spring
(Superseded to 932-0264)

$4.99

$

In Stock, Qty 20+

0

54

Cub Cadet 736-0105

Washer

$4.49

$

In Stock, Qty 20+

0

56

Cub Cadet 736-0160

Washer, Flat

$4.49

$

In Stock, only 2 left!

0

57

Cub Cadet 736-0176

Washer, Flat

$4.99

$

In Stock, only 4 left!

0

58

Cub Cadet 736-0242

Washer, Bell

$4.49

$

In Stock, Qty 20+

0

59

Cub Cadet 736-0255

Washer, Bell

$4.99

$

In Stock, only 3 left!

0

60

Cub Cadet 736-0270

Washer, Bell

$3.99

$

In Stock, Qty 20+

0

61

Cub Cadet 736-0287

Washer, Flat

$4.49

$

In Stock, Qty 20+

0

62

Cub Cadet 736-0300

Washer, Flat

$4.49

$

In Stock, Qty 20+

0

63

Cub Cadet 736-0329

Washer, Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

64

Cub Cadet 736-0406

Washer, Flat
(Superseded to 936-0406)

$6.99

$

In Stock, Qty 11

0

65

Cub Cadet 736-3052

Washer, Flat

$4.49

$

In Stock, Qty 20+

0

68

Cub Cadet 738-0870

Shoulder Screw

$

$

Not available

69

Cub Cadet 741-0339

Bearing, Flange
(Superseded to 941-0339)

$12.99

$

In Stock, Qty 20+

0

70

Cub Cadet 741-0563

Bearing, Ball, With Snap Ring
(Superseded to 941-0563)

$36.99

$

In Stock, Qty 7

0

71

Cub Cadet 741-0597

Bearing, Flange
(Superseded to 941-0597)

$12.99

$

In Stock, Qty 10

0

72

Cub Cadet 746-0897

Cable, Auger
(Superseded to 946-0897)

$24.99

$

In Stock, Qty 20+

0

73

Cub Cadet 746-0898

Cable, Clutch
(Superseded to 946-0898)

$27.99

$

In Stock, Qty 19

0

74

Cub Cadet 746-0900

Cable, Track Steer w/Trigger
(Superseded to 753-0707)

$74.99

$

In Stock, only 4 left!

0

75

Cub Cadet 748-0190

Spacer

$6.49

$

In Stock, Qty 11

0

76

Cub Cadet 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

80

Cub Cadet 750-0903

Spacer, Split
(Superseded to 750-0903B)

$10.99

$

Usually ships in 3-6 days

0

81

Cub Cadet 750-0904

Spacer, Split

$

$

Not available

83

Cub Cadet 750-0920

Spacer
(Superseded to 950-0920)

$

$

Not available

84

Cub Cadet 756-0625

Roller, Cable

$9.49

$

In Stock, Qty 14

0

85

Cub Cadet 784-5590

Frame, Shift Bracket

Variations

Cub Cadet 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$15.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$15.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$12.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

$

Not available

Cub Cadet 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

$

Not available

Cub Cadet 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

$

Not available

$12.99

$

Usually ships in 3-6 days

0

86

Cub Cadet 784-5609

Bracket

Variations

Cub Cadet 784-5609-0483

BRACKET-STEERING - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 784-5609-0498

BRACKET-STEERING - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 784-5609-0499

BRACKET-STEERING - CUB BEIGE (0499)

$

$

Not available

Cub Cadet 784-5609-0637

BRACKET-STEERING - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-5609-0638

BRACKET-STEERING - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 784-5609-0662

BRACKET-STEERING - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 784-5609-0691

USE 784-5609-0637 BRACKET-STE - BLACK JACK (0691)

$

$

Not available

Cub Cadet 784-5609-0692

STEERING BRACKET - AGWAY BLUE (0692)

$

$

Not available

Cub Cadet 784-5609-0716

BRACKET-STEERING - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 784-5609-0721

USE 784-5609-4044 BRACKET-STE - SEARS RED (0721)

$

$

Not available

Cub Cadet 784-5609-4021

BRACKET-STEERING - CUB YELLOW 2 (4021)

$

$

Not available

Cub Cadet 784-5609-4033

BRACKET-STEERING - FLINT MICA (4033)

$

$

Not available

Cub Cadet 784-5609-4044

BRACKET-STEERING - CRAFTSMAN RED (4044)

$

$

Not available

$

$

89

Cub Cadet 784-5644

Bracket, Drive Cable Roller

Variations

Cub Cadet 784-5644-0637

BRACKET-DRIVE CABLPOWDER BLAC - POWDER BLACK (0637)

$

$

Not available

$

$

90

Cub Cadet 784-5646

Bracket, Auger Clutch Cable Guide

Variations

Cub Cadet 784-5646-0637

BRACKET-AUGER CABLPOWDER BLAC - POWDER BLACK (0637)

$

$

Not available

$

$

91

Cub Cadet 784-5648

Cover, Frame, Track Drive
(Superseded to 784-5648A-0637)

Variations

Cub Cadet 784-5648-0483

Track Frame Cover - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 784-5648-0638

Track Frame Cover - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 784-5648-0662

Track Frame Cover - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 784-5648-0687

USE 784-5648A-0687 COVER-FRAM - PINE GREEN (0687)

$

$

Not available

Cub Cadet 784-5648-0498

Track Frame Cover - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 784-5648-0637

Track Frame Cover - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-5648-0650

Track Frame Cover - RED METALLIC (0650)

$

$

Not available

Cub Cadet 784-5648-0665

Track Frame Cover - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 784-5648-0689

Track Frame Cover - POLO GREEN (0689)

$

$

Not available

Cub Cadet 784-5648-0716

Track Frame Cover - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 784-5648-0721

Track Frame Cover - SEARS RED (0721)

$

$

Not available

$

$

92

Cub Cadet 784-5658

Bracket, Front Support Guide
(Superseded to 784-5658-0637)

Variations

Cub Cadet 784-5658-0637

Support Bracket, FR - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-5658-0638

Support Bracket, FR - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$
