524 T (315-716E100) - Cub Cadet 24" Snow Thrower (1995) Handle Assembly Parts Diagram

24" Snow Thrower

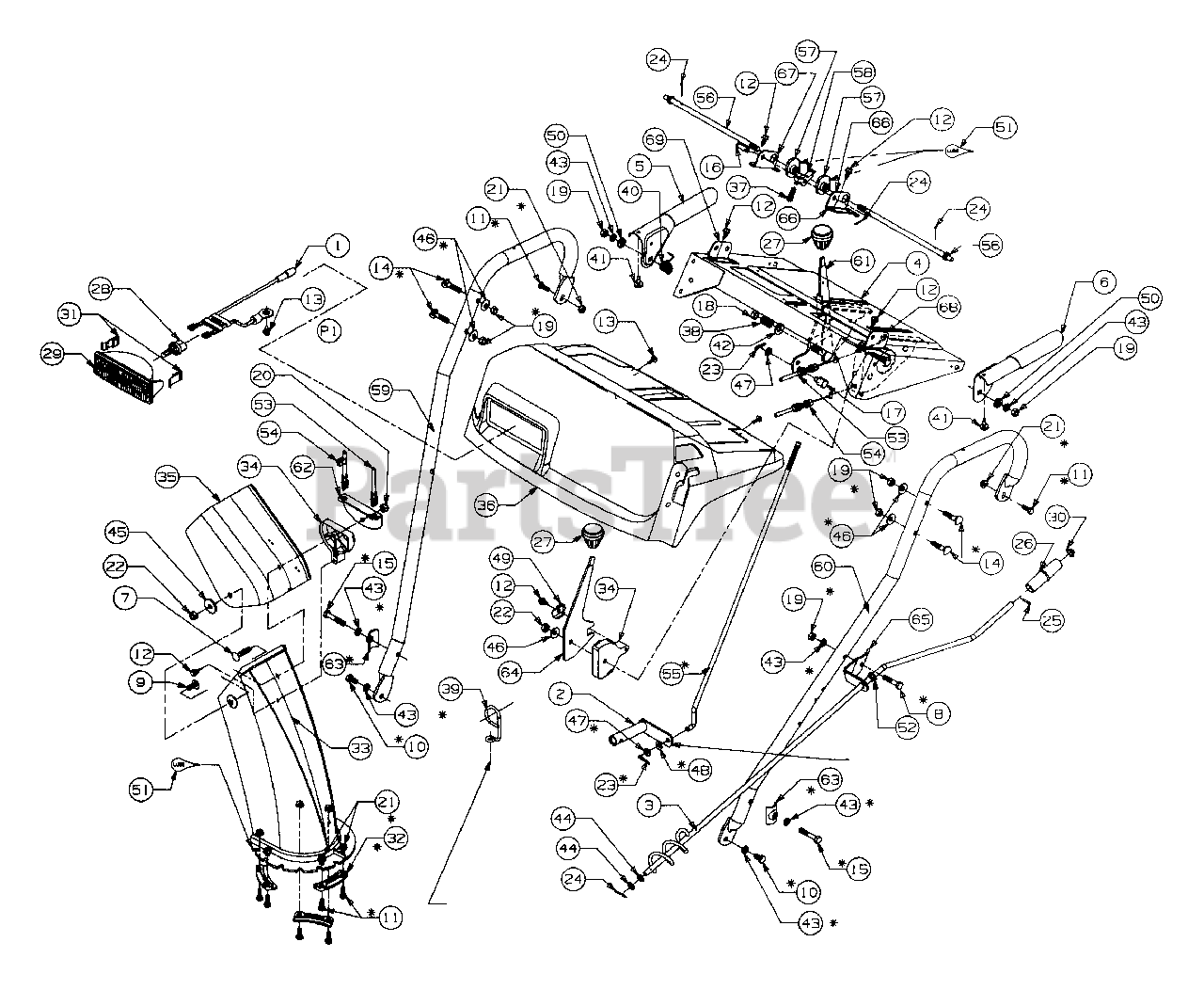

Handle Assembly Parts Diagram

  • Title

1

Cub Cadet 629-0059

Harness - Lights
(Superseded to 929-0059)

$100.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 684-0008

Arm - Shift
(Superseded to 684-0008A-0637)

Variations

Cub Cadet 684-0008-0637

Shift Arm Assembly - POWDER BLACK (0637)

$50.99

$

Usually ships in 3-6 days

0

Cub Cadet 684-0008-0638

Shift Arm Assembly - MTD/TROY-BILT RED (0638)

$50.99

$

Usually ships in 3-6 days

0

$50.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 684-0022

Crank Assembly
(Superseded to 984-0022)

$99.99

$

In Stock, only 3 left!

0

4

Cub Cadet 684-0032A

Panel Assembly

Variations

Cub Cadet 684-0032A-0483

HANDLE PANEL SUPPORT - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 684-0032A-0498

HANDLE PANEL SUPPORT - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 684-0032A-0637

HANDLE PANEL SUPPORT - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 684-0032A-0638

HANDLE PANEL SUPPORT - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 684-0032A-0662

HANDLE PANEL SUPPORT - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 684-0032A-0665

HANDLE PANEL SUPPORT - YARDMAN GREEN (0665)

$

$

Not available

$

$

5

Cub Cadet 684-0036

Handle Assembly R.H.
(Superseded to 684-0036A)

$44.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 684-0037

Handle Assembly L.H.
(Superseded to 684-0037B)

$38.99

$

In Stock, only 2 left!

0

7

Cub Cadet 710-0262

Screw Carriage

$3.99

$

In Stock, Qty 9

0

8

Cub Cadet 710-0442

Screw - Hex Cap
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0451

Screw - Carriage

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0538

Screw - Hex Lock

$4.49

$

In Stock, Qty 7

0

11

Cub Cadet 710-0851

Screw - Hex Cap

$

$

Currently unavailable

12

Cub Cadet 710-0896

Screw

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-1003

Screw - Self Tap
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-1250

Bolt - Carriage

$4.99

$

In Stock, only 3 left!

0

15

Cub Cadet 710-3180

Screw - Hex

$5.49

$

In Stock, Qty 20+

0

16

Cub Cadet 711-0653

Pin - Clevis

$3.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 711-0677

Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

18

Cub Cadet 712-0116

Nut - Lock Hex

$4.99

$

In Stock, Qty 6

0

19

Cub Cadet 712-0267

Nut - Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 712-0429

Nut - Lock Hex

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 712-3027

Nut - Lock Flanged Hex
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 712-3068

Nut - Patch Lock Hex
(Superseded to 912-3009)

$

$

Not available

23

Cub Cadet 714-0104

Pin - Cotter

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 714-0507

Pin - Cotter

$4.49

$

In Stock, Qty 12

0

25

Cub Cadet 715-0138

Roll Pin
(Superseded to 915-0138)

$4.99

$

In Stock, only 1 left!

0

26

Cub Cadet 720-0201A

Knob - Chute Crank

$10.99

$

In Stock, Qty 5

0

27

Cub Cadet 720-0232

Knob - Shift
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

28

Cub Cadet 725-1658

Lamp - Halogen
(Superseded to 925-1658)

$60.99

$

In Stock, only 4 left!

0

29

Cub Cadet 725-1672

Housing - Lamp Lens
(Superseded to 925-1672)

$89.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 726-0100

Cap - Push

$4.49

$

In Stock, Qty 18

0

31

Cub Cadet 726-0321A

Clip - Retaining
(Superseded to 747-1136)

$11.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 731-0851A

Chute - Flange Keeper

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 731-1300A

Chute - Lower
(Superseded to 731-1300E)

$56.99

$

In Stock, Qty 8

0

34

Cub Cadet 731-1313

Cable - Guide
(Superseded to 731-1313C)

$11.99

$

In Stock, Qty 20+

0

35

Cub Cadet 731-1320

Chute - Upper
(Superseded to 731-04427B)

$16.99

$

In Stock, Qty 8

0

36

Cub Cadet 731-1581

Handle Panel (524 & 524T)

$

$

Not available

Cub Cadet 731-1582

Handle Panels

$

$

Not available

37

Cub Cadet 732-0145

Spring - Compression

$4.49

$

Usually ships in 3-6 days

0

38

Cub Cadet 732-0193

Spring - Compression

$4.99

$

In Stock, Qty 6

0

39

Cub Cadet 732-0705

Cable Control Wire

$11.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 732-0746

Spring - Torsion

$4.49

$

In Stock, Qty 13

0

41

Cub Cadet 735-0199A

Bumper

$7.99

$

In Stock, only 1 left!

0

42

Cub Cadet 736-0105

Washer - Bell

$4.49

$

In Stock, Qty 20+

0

43

Cub Cadet 736-0119

Washer - Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

44

Cub Cadet 736-0140

Washer - Flat

$7.49

$

In Stock, Qty 6

0

45

Cub Cadet 736-0231

Washer

$4.99

$

In Stock, Qty 20+

0

46

Cub Cadet 736-0242

Washer - Bell

$4.49

$

In Stock, Qty 20+

0

47

Cub Cadet 736-0264

Washer - Flat

$6.99

$

In Stock, only 2 left!

0

48

Cub Cadet 736-0271

Washer - Spring
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

49

Cub Cadet 736-0506

Washer - Special
(Superseded to 736-0506A)

$

$

Not available

50

Cub Cadet 736-0509

Washer - Special

$6.99

$

In Stock, only 1 left!

0

51

Cub Cadet 737-0133

Lubricant
(Superseded to 737-0300A)

$34.99

$

In Stock, Qty 20+

0

52

Cub Cadet 741-0475

Bushing - Plastic
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet 746-0896

Cable - Chute Deflector
(Superseded to 946-0896)

$56.99

$

In Stock, only 1 left!

0

54

Cub Cadet 746-0901

Cable - Chute Deflector w/Clip
(Superseded to 946-0901)

$64.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 747-0798

Rod - Shift
(Superseded to 747-0798A)

$38.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 747-0877

Rod - Cam

$22.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 748-0362

Cam Handle Lock

$7.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 748-0363

Pawl handle Lock
(Superseded to 948-0363)

$16.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 749-0908A

Handle R.H.
(Superseded to 749-0908A-0637)

$

$

Not available

60

Cub Cadet 749-0909

handle L.H
(Superseded to 749-0909-0637)

Variations

Cub Cadet 749-0909-0637

HANDLE-LH-C STYLE - POWDER BLACK (0637)

$

$

Not available

$

$

61

Cub Cadet 784-0297

Shift Handle

$

$

Not available

62

Cub Cadet 784-5594

Bracket - Cable

Variations

Cub Cadet 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$11.99

$

In Stock, only 3 left!

0

Cub Cadet 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$11.99

$

In Stock, only 3 left!

0

Cub Cadet 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$11.99

$

In Stock, only 3 left!

0

$10.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 784-5599

Handle Tab
(Superseded to 984-5599)

$4.49

$

In Stock, Qty 18

0

64

Cub Cadet 784-5604

Handle - Chute Tilt
(Superseded to 784-5604A-0637)

Variations

Cub Cadet 784-5604-0637

Chute Handle Bracket - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 784-5678

Bracket - Chute Crank

Variations

Cub Cadet 784-5678-0637

BRACKET-CH - POWDER BLACK (0637)

$

$

Not available

$

$

66

Cub Cadet 784-5679

Bracket - Handle Support L.H
(Superseded to 784-5679-0637)

Variations

Cub Cadet 784-5679-0637

BRACKET-HANDLE-LH - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 784-5680

Bracket - Handle Support R.H
(Superseded to 784-5680-0637)

Variations

Cub Cadet 784-5680-0637

BRACKET-HDL SUP-RH - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 784-5681

Bracket - Handle Support L.H

Variations

Cub Cadet 784-5681-0637

USE 784-5681 BRACKET-HANDLE S - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

69

Cub Cadet 784-5682

Bracket - Handle Support R.H.
(Superseded to 784-5682-0637)

Variations

Cub Cadet 784-5682-0637

Handle Support Bracket - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0
