524 T (313-618E100) - Cub Cadet 24" Snow Thrower (1993) Snow Thrower - Part IV Parts Diagram

24" Snow Thrower

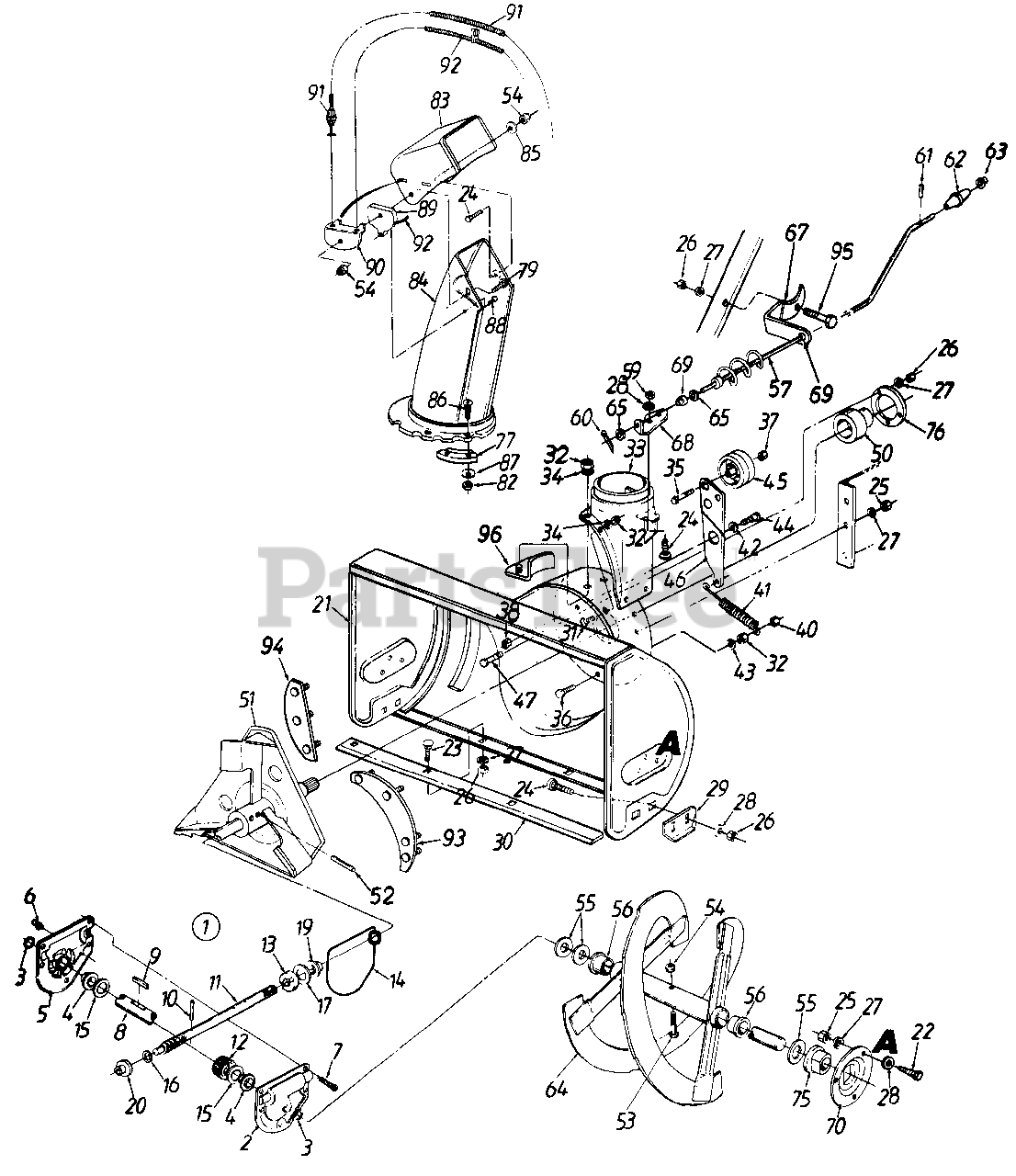

Snow Thrower - Part IV Parts Diagram

  • Title

1

Cub Cadet 618-0040

Worm Drive Ass'y. Comp.
(Superseded to 918-0414B)

Note: (524T)

$

$

Not available

Cub Cadet 618-0041

Worm Drive Ass'y. Comp.
(Superseded to 918-0415B)

Note: (826T)

$442.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 719-0292

Reducer Housing-L.H.

$

$

Not available

3

Cub Cadet 721-0179

Oil Seal

$8.99

$

In Stock, Qty 20+

0

4

Cub Cadet 741-0339

Flange Bearing .75" I.D.
(Superseded to 941-0339)

$12.99

$

In Stock, Qty 20+

0

5

Cub Cadet 719-0293

Reducer Housing-R.H.

$

$

Not available

6

Cub Cadet 737-3000

Grease Fitting
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0642

Hex TT-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 711-0908

24" Auger Shaft
(Superseded to 711-0908A)

Note: (524T)

$

$

Not available

Cub Cadet 711-0909

26" Auger Shaft
(Superseded to 711-0909A)

Note: (826T)

$

$

Not available

9

Cub Cadet 714-0388

#61 Hi-Pro Key 3/16" x 5/8" Dia.
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 20+

0

10

Cub Cadet 715-0143

Spiral Pin 1.25" Lg.

$4.99

$

In Stock, Qty 9

0

11

Cub Cadet 717-0526

Impeller Shaft
(Superseded to 717P0526)

$108.99

$

In Stock, only 2 left!

0

12

Cub Cadet 717-0528

Worm Gear
(Superseded to 917-04861)

$43.99

$

In Stock, Qty 20+

0

13

Cub Cadet 718-0186

Thrust Collar

$8.49

$

In Stock, Qty 11

0

14

Cub Cadet 721-0255

"O"-Ring (Special)

$

$

Not available

15

Cub Cadet 736-0351

Fl-Wash. .76" I.D. x 1.5" O.D.

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 736-0369

Fl-Wash. .5" I.D. x 1" O.D.

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 736-0445

Fl-Wash. .76" I.D. x 1.49" O.D.

$4.49

$

In Stock, Qty 11

0

19

Cub Cadet 741-0376

Flange Bearing .75" I.D.
(Superseded to 941-0376)

$8.99

$

In Stock, Qty 6

0

20

Cub Cadet 748-0108

Flange Bearing .503" I.D.
(Superseded to 948-0108)

$8.99

$

In Stock, Qty 20+

0

21

Cub Cadet 684-0039

24" Auger Housing Ass'y.
(Superseded to 753-0615)

Note: (524T)

$

$

Not available

Cub Cadet 684-0040

26" Auger Housing Ass'y.

Note: (826T)

$

$

Not available

22

Cub Cadet 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 15

0

23

Cub Cadet 710-0260

Carriage Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 710-0451

Carriage Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 2 left!

0

26

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

28

Cub Cadet 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 784-5580

Slide Shoe

Variations

Cub Cadet 784-5580-0637

Snow Slide Shoe, Black - POWDER BLACK (0637)

$23.99

$

In Stock, Qty 20+

0

Cub Cadet 784-5580-0638

Snow Slide Shoe, Black - MTD/TROY-BILT RED (0638)

$23.99

$

In Stock, Qty 20+

0

Cub Cadet 784-5580-0662

Snow Slide Shoe, Black - OYSTER GRAY (0662)

$23.99

$

In Stock, Qty 20+

0

Cub Cadet 784-5580-0665

Snow Slide Shoe, Black - YARDMAN GREEN (0665)

$23.99

$

In Stock, Qty 20+

0

Cub Cadet 784-5580-0688

Snow Slide Shoe, Black - SPRING GREEN (0688)

$23.99

$

In Stock, Qty 20+

0

Cub Cadet 784-5580-0721

Snow Skid Shoe - SEARS RED (0721)

$23.99

$

In Stock, Qty 16

0

Cub Cadet 784-5580-4044

Snow Skid Shoe - CRAFTSMAN RED (4044)

$23.99

$

In Stock, Qty 16

0

Cub Cadet 784-5580-0691

Snow Slide Shoe, Black - BLACK JACK (0691)

$23.99

$

In Stock, Qty 7

0

Cub Cadet 784-5580-0729

Snow Skid Shoe - STORM GRAY (0729)

$23.99

$

In Stock, Qty 20+

0

Cub Cadet 784-5580-4043

Snow Skid Shoe - CRAFTSMAN METALLIC GRAY (4043)

$23.99

$

In Stock, Qty 20+

0

$23.99

$

In Stock, Qty 20+

0

30

Cub Cadet 784-5581

24" Shave Plate
(Superseded to 790-00120-0637)

Note: (524T)

$34.99

$

In Stock, Qty 20+

0

Cub Cadet 784-5579

26" Shave Plate
(Superseded to 790-00121-0637)

Note: (826T)

$36.99

$

In Stock, Qty 20+

0

31

Cub Cadet 710-0286

Truss Mach. Scr. 1/4-20 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

32

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

33

Cub Cadet 731-1379

Chute Adapter
(Superseded to 731-1379D)

$65.99

$

In Stock, Qty 8

0

34

Cub Cadet 736-0175

Spring Washer 1/4" I.D.
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

35

Cub Cadet 710-0459

Hex Bolt 3/8-24 x 1.5" Lg. (Gr. 5)
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

36

Cub Cadet 710-0812

Hex Bolt 1/4-20 x .75" Lg. (Gr. 5)

$

$

Not available

37

Cub Cadet 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

38

Cub Cadet 712-0181

Hex Top L-Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

40

Cub Cadet 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

41

Cub Cadet 732-0611

Ext. Spring 3.6" Lg.
(Superseded to 932-0611)

$7.49

$

In Stock, Qty 20+

0

42

Cub Cadet 736-0167

Fl-Wash. 5/8" I.D. x 1.25"
(Superseded to 936-0167)

$6.99

$

In Stock, Qty 6

0

43

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

44

Cub Cadet 738-0281

Shld. Bolt .625" Dia. x .170" Lg.

$10.99

$

In Stock, only 2 left!

0

45

Cub Cadet 756-0178

Fl-Idler 2.75" O.D.

$20.99

$

In Stock, only 4 left!

0

46

Cub Cadet 784-5632

Auger Idler Brkt.
(Superseded to 984-0064-0637)

Variations

Cub Cadet 784-5632-0637

USE 984-0064-0637 ARM ASSY-ID - POWDER BLACK (0637)

$32.99

$

In Stock, only 2 left!

0

$32.99

$

In Stock, only 2 left!

0

47

Cub Cadet 710-1087

Hex Bolt 5/16-18 x 5/8" Lg.
(Superseded to 710-3038)

$4.99

$

In Stock, only 3 left!

0

50

Cub Cadet 741-0309

Ball Bearing .75" I.D.
(Superseded to 941-0309)

$74.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 705-5187A

Blower Fan Ass'y.
(Superseded to 984-0065-0637)

Variations

Cub Cadet 705-5187A-0637

Impeller, 3-Blade 12" - POWDER BLACK (0637)

$90.99

$

In Stock, Qty 6

0

$90.99

$

In Stock, Qty 6

0

52

Cub Cadet 715-0114A

Spiral Pin 1.5" Lg.
(Superseded to 915-0114)

$9.49

$

In Stock, Qty 20+

0

53

Cub Cadet 710-0890

Shear Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0890A)

$1.99

$

In Stock, Qty 20+

0

54

Cub Cadet 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

55

Cub Cadet 736-0188

Fl-Wash. .76" I.D. x 1.49"

$4.49

$

In Stock, Qty 20+

0

56

Cub Cadet 741-0493A

Flange Bushing .8" I.D.
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

57

Cub Cadet 684-0022

Chute Crank Ass'y.
(Superseded to 984-0022)

$99.99

$

In Stock, only 3 left!

0

59

Cub Cadet 712-0429

Hex Ins. L-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

60

Cub Cadet 714-0507

Cotter Pin 3/32" Dia. x .75"

$4.49

$

In Stock, Qty 12

0

61

Cub Cadet 715-0138

Roll Pin 1/8" Dia. x .63" Lg.
(Superseded to 915-0138)

$4.99

$

In Stock, only 1 left!

0

62

Cub Cadet 720-0201A

Chute Crank Knob

$10.99

$

In Stock, Qty 5

0

63

Cub Cadet 726-0100

Push Nut

$4.49

$

In Stock, Qty 18

0

64

Cub Cadet 705-5189

Spiral Ass'y.-L.H.
(Superseded to 684-04181-0637)

Note: (524T)

Variations

Cub Cadet 705-5189-0637

Auger Spiral Assembly, LH 24" - POWDER BLACK (0637)

$178.99

$

In Stock, only 1 left!

0

Cub Cadet 705-5189-0691

Auger Spiral Assembly, LH 24" - BLACK JACK (0691)

$178.99

$

In Stock, only 1 left!

0

Cub Cadet 705-5189-0692

Auger Spiral Assembly, LH 24" - AGWAY BLUE (0692)

$178.99

$

In Stock, only 1 left!

0

$178.99

$

In Stock, only 1 left!

0

Cub Cadet 705-5188

Spiral Ass'y.-R.H.
(Superseded to 684-04180-0637)

Note: (524T) - Not Shown

Variations

Cub Cadet 705-5188-0483

Auger Spiral Assembly, RH 24" - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 705-5188-0637

Auger Spiral Assembly, RH 24" - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 705-5188-0638

Auger Spiral Assembly, RH 24" - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 705-5188-0648

Auger Spiral Assembly, RH 24" - TECH GRAY (0648)

$

$

Not available

Cub Cadet 705-5188-0662

Auger Spiral Assembly, RH 24" - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 705-5188-0665

Auger Spiral Assembly, RH 24" - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 705-5188-0668

Auger Spiral Assembly, RH 24" - MOSS GREEN (0668)

$

$

Not available

$

$

Cub Cadet 705-5193

Spiral Ass'y.-L.H.
(Superseded to 684-04183-0637)

Note: (826T)

$

$

Not available

Cub Cadet 705-5192

Spiral Ass'y.-R.H.
(Superseded to 684-04182-0637)

Note: (826T) - Not Shown

Variations

Cub Cadet 705-5192-0483

Spiral Assembly, RH 26" - CHARCOAL GRAY (0483)

$187.99

$

Usually ships in 3-6 days

0

Cub Cadet 705-5192-0498

Spiral Assembly, RH 26" - OLD CUB YELLOW (0498)

$187.99

$

Usually ships in 3-6 days

0

Cub Cadet 705-5192-0637

Spiral Assembly, RH 26" - POWDER BLACK (0637)

$187.99

$

Usually ships in 3-6 days

0

Cub Cadet 705-5192-0638

Spiral Assembly, RH 26" - MTD/TROY-BILT RED (0638)

$187.99

$

Usually ships in 3-6 days

0

Cub Cadet 705-5192-0662

Spiral Assembly, RH 26" - OYSTER GRAY (0662)

$187.99

$

Usually ships in 3-6 days

0

$187.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 736-0140

Fl-Wash. .385" I.D. x .62" O.D.

$7.49

$

In Stock, Qty 6

0

67

Cub Cadet 784-5678

Upper Chute Crank Brkt.

Variations

Cub Cadet 784-5678-0637

BRACKET-CH - POWDER BLACK (0637)

$

$

Not available

$

$

68

Cub Cadet 784-5647

Lower Chute Crank Brkt.
(Superseded to 784-5647-0637)

Variations

Cub Cadet 784-5647-0637

Chute Crank Bracket, Black - POWDER BLACK (0637)

$14.99

$

In Stock, Qty 5

0

$14.99

$

In Stock, Qty 5

0

69

Cub Cadet 741-0475

Plastic Bushing .38" I.D.
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

70

Cub Cadet 05845A

Bearing Housing
(Superseded to 05845C-0637)

Variations

Cub Cadet 05845A-0637

Bearing Housing - POWDER BLACK (0637)

$23.99

$

In Stock, only 1 left!

0

$23.99

$

In Stock, only 1 left!

0

75

Cub Cadet 741-0300

Plastic Bearing w/Flats
(Superseded to 941-0300)

$14.99

$

In Stock, Qty 11

0

76

Cub Cadet 05931

Bearing Housing
(Superseded to 05931A)

$10.99

$

Usually ships in 3-6 days

0

77

Cub Cadet 731-0851

Chute Flange Keeper
(Superseded to 731-0851A)

$4.49

$

In Stock, Qty 20+

0

79

Cub Cadet 710-0262

Carriage Bolt 5/16-18 x 1.5" Lg.

$3.99

$

In Stock, Qty 9

0

82

Cub Cadet 712-0107

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

83

Cub Cadet 731-1320

Upper Chute
(Superseded to 731-04427B)

$16.99

$

In Stock, Qty 8

0

84

Cub Cadet 731-1300

Lower Chute
(Superseded to 731-1300E)

$56.99

$

In Stock, Qty 8

0

85

Cub Cadet 736-0231

Fl-Wash. .344" I.D. x 1.125"

$4.99

$

In Stock, Qty 20+

0

86

Cub Cadet 710-0255

Truss Mach. Scr. 1/4-20 x .75" Lg.
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

87

Cub Cadet 736-0142

Fl-Wash. 1/4" I.D.

$4.99

$

In Stock, Qty 20+

0

88

Cub Cadet 710-0776A

Hex AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

89

Cub Cadet 731-1313

Cable Guide
(Superseded to 731-1313C)

$11.99

$

In Stock, Qty 20+

0

90

Cub Cadet 784-5594

Cable Bracket

Variations

Cub Cadet 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$11.99

$

In Stock, only 3 left!

0

Cub Cadet 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$11.99

$

In Stock, only 3 left!

0

Cub Cadet 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$11.99

$

In Stock, only 3 left!

0

$10.99

$

Usually ships in 3-6 days

0

91

Cub Cadet 746-0896

Chute Control Cable
(Superseded to 946-0896)

$56.99

$

In Stock, only 1 left!

0

92

Cub Cadet 746-0901

Chute Control Cable w/Clip
(Superseded to 946-0901)

$64.99

$

Usually ships in 3-6 days

0

93

Cub Cadet 684-0045

Plate Reinforcement Ass'y.-L.H.

Variations

Cub Cadet 684-0045-0638

PLATE ASSEMBLY - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

94

Cub Cadet 684-0046

Plate Reinforcement Ass'y.-R.H.

Variations

Cub Cadet 684-0046-0637

PLATE REINFORCEMENT ASS'Y. - R H. - POWDER BLACK (0637)

$

$

Not available

$

$

95

Cub Cadet 710-0442

Hex Bolt 5/16-18 x 1.5" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

96

Cub Cadet 705-0525

Chute Reinforcement
(Superseded to 705-5225)

$

$

Not available
