524 SWE (31AM53TR710) - Cub Cadet 24" Snow Thrower (2008) Drive System Parts Diagram

24" Snow Thrower

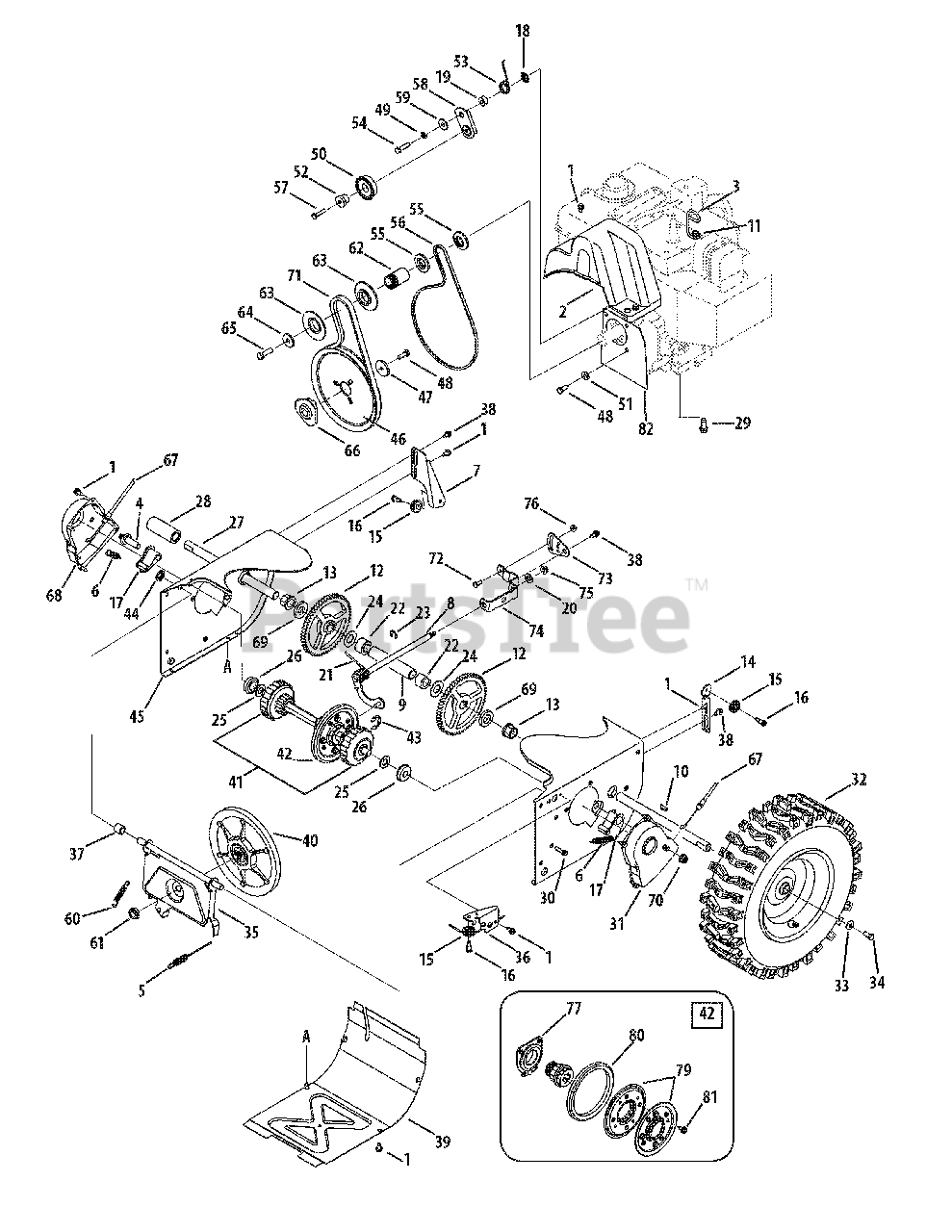

Drive System Parts Diagram

  • Title

1

Cub Cadet 710-1652

AB Screw, 1/4-20 x 0.625

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 731-05353

Belt Cover
(Superseded to 731-05353B)

$

$

Not available

3

Cub Cadet 732-0705

Cable Guide

$11.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 711-1268B

Actuator Shaft

$10.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 746-04229

Drive Clutch Cable
(Superseded to 946-04229B)

$21.99

$

In Stock, Qty 20+

0

6

Cub Cadet 732-04345

Extension Spring

$10.99

$

In Stock, only 1 left!

0

7

Cub Cadet 790-00207B

Drive Clutch Cable Guide Bracket
(Superseded to 790-03997)

$5.49

$

In Stock, only 4 left!

0

8

Cub Cadet 684-04156A

Shift Rod Assembly

$61.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 750-04474

Axle Support Tube

$42.99

$

In Stock, only 1 left!

0

10

Cub Cadet 914-0126

Hi-pro Key
(Superseded to 714-0126)

$4.99

$

In Stock, Qty 19

0

11

Cub Cadet 710-1681

Screw

$5.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 917-04210

Gear, 56T

$79.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 941-0245

Hex Flange Bearing

$9.99

$

In Stock, Qty 20+

0

14

Cub Cadet 790-00206A-0637

Auger Clutch Cable Guide Bracket
(Superseded to 790-00206B)

$8.49

$

In Stock, only 1 left!

0

15

Cub Cadet 756-0625

Cable Roller

$9.49

$

In Stock, Qty 16

0

16

Cub Cadet 738-0924A

C Screw, 1/4-28 x 0.375

$6.99

$

In Stock, Qty 5

0

17

Cub Cadet 618-04288

Dogg Assembly - LH

$21.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 618-04287

Dogg Assembly - RH

$23.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 926-04012

Speed nut
(Superseded to 726-04012)

$

$

Not available

19

Cub Cadet 750-04477

Spacer
(Superseded to 750-04477A)

$5.49

$

In Stock, Qty 5

0

20

Cub Cadet 936-3015

Flat Washer, .469 x .875 x .105

$4.49

$

In Stock, only 1 left!

0

21

Cub Cadet 732-04311

Torsion Spring, .750ID x .968 Lg.
(Superseded to 732-04311A)

$10.99

$

In Stock, only 1 left!

0

22

Cub Cadet 731-05297

Spacer

$9.99

$

In Stock, only 2 left!

0

23

Cub Cadet 916-0104

E Ring

$3.99

$

In Stock, Qty 15

0

24

Cub Cadet 736-0188

Flat Washer, .76 x 1.49 x .06

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 736-0626

Flat Washer

$9.49

$

In Stock, only 2 left!

0

26

Cub Cadet 741-04076

Ball Bearing

$14.99

$

In Stock, Qty 16

0

27

Cub Cadet 938-04180

Axle

$70.99

$

In Stock, only 2 left!

0

28

Cub Cadet 731-04873

Spacer

$10.99

$

In Stock, only 2 left!

0

29

Cub Cadet 710-0654A

TT Sems Screw, 3/8-16 x 1.0

$4.49

$

In Stock, only 3 left!

0

30

Cub Cadet 710-0788

TT Screw, 1/4-20 x 1.0

$7.49

$

In Stock, only 4 left!

0

31

Cub Cadet 790-00185-4021

Shaft Retainer - LH

$30.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 634-04136-0931

Wheel Complete - LH (16 x 6.5 x 8); 28"

$283.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 634-04137-0931

Wheel Complete - RH (16 x 6.5 x 8); 28"

$268.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 634-04147A-0931

Wheel Complete - LH (15x5x6); 24"

$239.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 634-04148A-0931

Wheel Complete - RH (15x5x6); 24"

$

$

Not available

33

Cub Cadet 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 710-0627

Hex Bolt, 5/16-24 x .75

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 684-04154-0637

Friction Wheel Support Brkt. Assy.
(Superseded to 684-04154B-0637)

$41.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 790-00096-0637

Auger Cable Guide Bracket
(Superseded to 790-00096B-0637)

$9.49

$

In Stock, only 1 left!

0

37

Cub Cadet 748-0190

Spacer

$6.49

$

In Stock, only 1 left!

0

38

Cub Cadet 738-04184A

Shoulder Screw

$6.99

$

In Stock, Qty 15

0

39

Cub Cadet 790-00316-4021

Frame Cover

$47.99

$

In Stock, only 1 left!

0

40

Cub Cadet 656-04025A

Friction Wheel Disc Assembly
(Superseded to 656-04055A)

$59.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 918-04322A

Drive Shaft Assembly

$495.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 684-04159

Friction Wheel Assembly
(Superseded to 684-04159C)

$96.99

$

In Stock, only 2 left!

0

43

Cub Cadet 716-0136

Retainer Ring

$8.99

$

In Stock, only 2 left!

0

44

Cub Cadet 726-0221

Speed Nut

$6.49

$

In Stock, only 1 left!

0

45

Cub Cadet 790-00183B-4021

Wheel Drive Frame
(Superseded to 790-00183E-4021)

$106.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 756-04109

Auger Pulley

$54.99

$

In Stock, only 2 left!

0

47

Cub Cadet 736-0505

Flat Washer

$6.49

$

In Stock, only 2 left!

0

48

Cub Cadet 710-1245B

Hex Bolt, 5/16-24 x 0.875

$8.49

$

In Stock, only 2 left!

0

49

Cub Cadet 936-0119

Lock Washer

$4.99

$

In Stock, Qty 20+

0

50

Cub Cadet 684-04169

Pulley Assembly

$34.99

$

In Stock, only 2 left!

0

51

Cub Cadet 748-0234

Shoulder Spacer

$4.49

$

Usually ships in 3-6 days

0

52

Cub Cadet 750-04571

Spacer

$6.99

$

In Stock, only 3 left!

0

53

Cub Cadet 732-04308A

Torsion Spring
(Superseded to 732-04308C)

$5.49

$

In Stock, only 4 left!

0

54

Cub Cadet 710-0672

Hex Screw, 5/16-24 x 1.25

$4.49

$

In Stock, Qty 19

0

55

Cub Cadet 756-04252

Pulley Half

$6.49

$

In Stock, only 1 left!

0

56

Cub Cadet 954-0367

V-Belt, 3/8 x 34

$29.99

$

In Stock, Qty 20+

0

57

Cub Cadet 710-0809

TT Screw, 1/4-20 x 1.25

$6.99

$

In Stock, Qty 19

0

58

Cub Cadet 790-00208C

Drive Clutch Idler Bracket
(Superseded to 790-00208D)

$8.99

$

In Stock, only 1 left!

0

59

Cub Cadet 748-04112B

Shoulder Spacer

$4.49

$

Usually ships in 3-6 days

0

60

Cub Cadet 932-0264

Extension Spring

$4.99

$

In Stock, Qty 20+

0

61

Cub Cadet 712-0417A

Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

62

Cub Cadet 750-04303

Spacer

$17.99

$

In Stock, only 1 left!

0

63

Cub Cadet 756-04113

Pulley Half
(Superseded to 756-06563)

$3.99

$

In Stock, Qty 6

0

64

Cub Cadet 736-0247

Flat Washer

$9.49

$

In Stock, Qty 16

0

65

Cub Cadet 710-0191

Hex Bolt, 3/8-24 x 1.25

$4.99

$

In Stock, Qty 8

0

66

Cub Cadet 748-04053A

Pulley Adapter

$22.99

$

In Stock, only 1 left!

0

67

Cub Cadet 946-0956B

Steering Cable
(Superseded to 946-0956C)

$23.99

$

In Stock, Qty 7

0

68

Cub Cadet 790-00186-4021

Shaft Retainer - RH

$25.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 750-0767

Axle Spacer

$5.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

71

Cub Cadet 954-04050

V-Belt,.500 x 35.00 Lg
(Superseded to 954-04050A)

$27.99

$

In Stock, Qty 20+

0

72

Cub Cadet 710-0751

Hex Screw, 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

73

Cub Cadet 790-00217A-0637

Speed Selector Pivot Bracket
(Superseded to 790P01117)

$53.99

$

In Stock, only 1 left!

0

74

Cub Cadet 790-00218A-0637

Speed Selector Shift Bracket
(Superseded to 790-00218A)

$47.99

$

Usually ships in 3-6 days

0

75

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

76

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

77

Cub Cadet 618-0063A

Friction Wheel Bearing Assembly

$92.99

$

Usually ships in 3-6 days

0

79

Cub Cadet 790-00174

Friction Wheel Plate
(Superseded to 790-00174C)

$14.99

$

Usually ships in 3-6 days

0

80

Cub Cadet 935-04054

Friction Wheel Rubber
(Superseded to 935-04054A)

$39.99

$

In Stock, Qty 20+

0

81

Cub Cadet 710-0896

AB Screw

$4.49

$

In Stock, Qty 20+

0

82

Cub Cadet 790-00289A-0637

Cover Plate
(Superseded to 790-00289B-0637)

$26.99

$

Usually ships in 3-6 days

0
