524 SWE (31AM53TR710) - Cub Cadet 24" Snow Thrower (2008) Auger & Housing 524SWE Parts Diagram

24" Snow Thrower

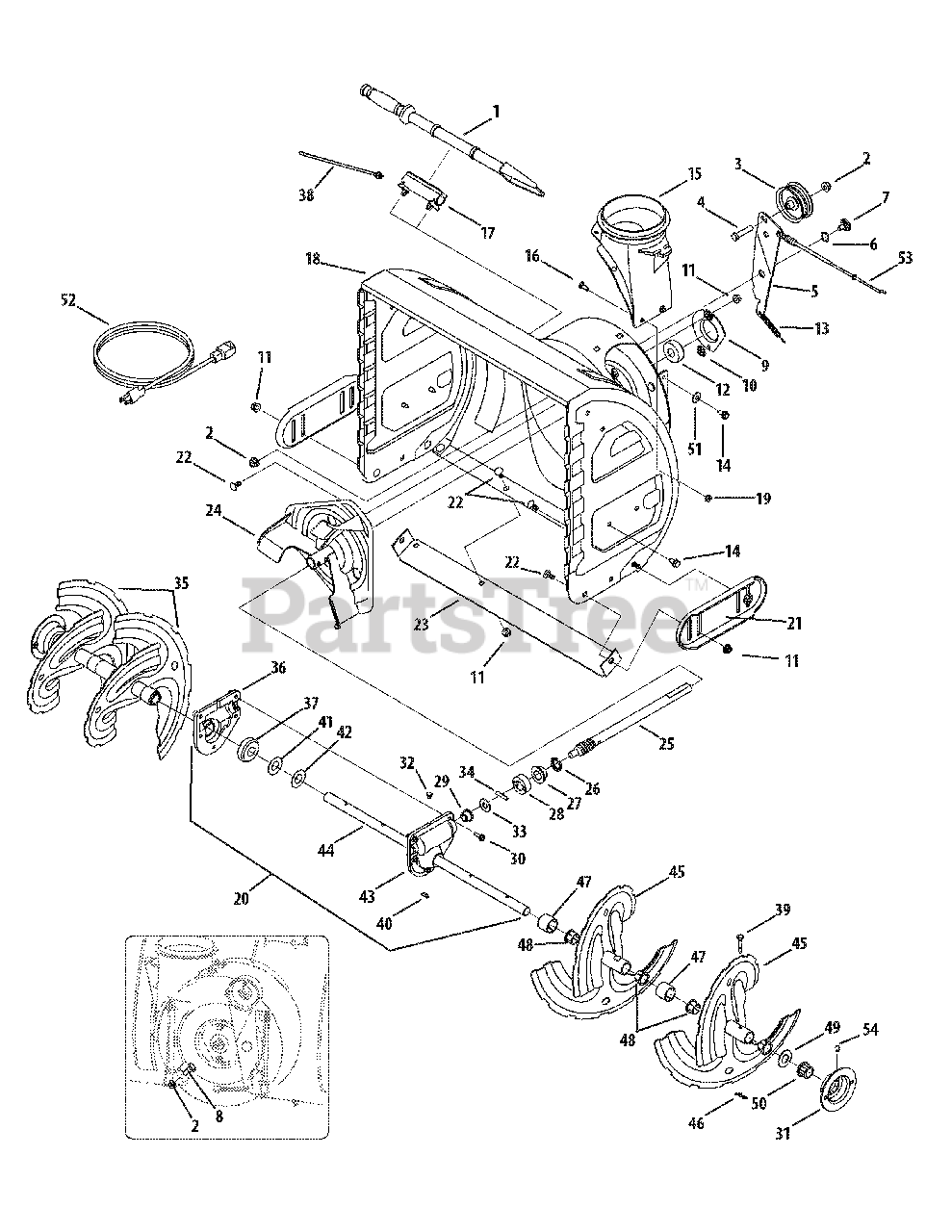

Auger & Housing 524SWE Parts Diagram

  • Title
1

Cub Cadet 731-2643

Clean-Out Tool
(Superseded to 931-2643)

$19.99

$

In Stock, Qty 11

0

2

Cub Cadet 712-04065

Flange Lock Nut

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 756-04224

Flat Idler Pulley

$26.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0347

Hex Bolt, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

5

Cub Cadet 790-00080A-0637

Auger Idler Bracket
(Superseded to 790-00080D)

$28.99

$

In Stock, Qty 7

0

6

Cub Cadet 736-0174

Wave Washer

$6.99

$

In Stock, Qty 8

0

7

Cub Cadet 938-0281

Shoulder Screw
(Superseded to 738-0281)

$

$

Not available

8

Cub Cadet 738-0143

Shoulder Screw

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 790-00075

Bearing Housing
(Superseded to 790-00075B)

$6.49

$

In Stock, Qty 10

0

10

Cub Cadet 926-04012

Push Nut
(Superseded to 726-04012)

$

$

Not available

11

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 941-0309

Ball Bearing

$74.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 732-04460

Extension Spring

$5.49

$

In Stock, Qty 20+

0

14

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 731-04705

Chute Adapter
(Superseded to 731-04705D)

$26.99

$

In Stock, Qty 12

0

16

Cub Cadet 710-0703

Carriage Screw, 1/4-20 x 0.75

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 731-2635

Clean-out Tool Mtg. Bracket
(Superseded to 731-11421)

$11.99

$

In Stock, Qty 18

0

18

Cub Cadet 684-04259-4021

Housing Assembly, Auger, 24"
(Superseded to 684-04259A-4021)

$446.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 618-04191A

Gearbox Assembly, Auger, 24"
(Superseded to 918-04171C)

$407.99

$

In Stock, Qty 7

0

21

Cub Cadet 790-00091-0637

Skid Shoe, Deluxe

$30.99

$

In Stock, Qty 11

0

22

Cub Cadet 710-0451

Carriage Bolt

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 790-00120-0637

Shave Plate, 24"

$34.99

$

In Stock, Qty 20+

0

24

Cub Cadet 684-04057A-0637

Impeller Assembly
(Superseded to 684-04057C-0637)

$73.99

$

In Stock, Qty 20+

0

25

Cub Cadet 917-04126

Worm Shaft

$79.99

$

In Stock, Qty 7

0

26

$6.99

$

In Stock, Qty 20+

0

27

Cub Cadet 741-0662

Flange Bearing

$10.99

$

In Stock, Qty 16

0

28

Cub Cadet 718-04071

Thrust Collar

$7.99

$

In Stock, Qty 9

0

29

Cub Cadet 741-0663

Flange Bearing

$9.99

$

In Stock, Qty 20+

0

30

Cub Cadet 710-0642

TT Screw, 1/4-20 x 0.75

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 790-00138A-0637

Bearing Housing

$

$

Not available

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 736-3084

Flat Washer

$4.99

$

In Stock, Qty 20+

0

34

$4.49

$

In Stock, Qty 12

0

35

Cub Cadet 684-04108-0637

Spiral Assembly - RH
(Superseded to 684-04108A-0637)

$94.99

$

In Stock, Qty 10

0

36

Cub Cadet 918-0123A

Reducer Hsg. - RH

$52.99

$

In Stock, Qty 11

0

37

Cub Cadet 717-04449

Worm Gear, 20T
(Superseded to 917-04861)

$43.99

$

In Stock, Qty 20+

0

38

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

39

$1.99

$

In Stock, Qty 20+

0

40

Cub Cadet 914-0161

Hi-Pro Key

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 936-0351

Flat Washer
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 731-04871

Spacer, 1.25 x .75 x 3/16

$6.99

$

In Stock, Qty 20+

0

43

Cub Cadet 918-0418A

Reducer Hsg. - LH

$62.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 711-04285

Axle, Auger, 24"
(Superseded to 711-04285A)

$90.99

$

In Stock, only 3 left!

0

45

Cub Cadet 684-04107-0637

Spiral Assembly - LH
(Superseded to 684-04107A-0637)

$89.99

$

In Stock, Qty 20+

0

46

Cub Cadet 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

$4.99

$

In Stock, Qty 20+

0

48

Cub Cadet 741-0493A

Flange Bushing
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 736-0188

Flat Washer

$4.49

$

In Stock, Qty 20+

0

50

Cub Cadet 941-0245

Hex Flange Bearing

$9.99

$

In Stock, Qty 20+

0

51

Cub Cadet 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

0

52

Cub Cadet 929-0071

Extension Cord. 3-Prong
(Superseded to 929-0071B)

$21.99

$

In Stock, Qty 12

0

53

Cub Cadet 746-04230

Auger Clutch Cable
(Superseded to 946-04230B)

$23.99

$

In Stock, Qty 20+

0

54

Cub Cadet 937-3000

Drive Lube Fitting

$4.99

$

In Stock, Qty 20+

0
