524 STE (954224200-A) - Husqvarna 24" Snow Blower (2004-08) Handles Parts Diagram

24" Snow Blower

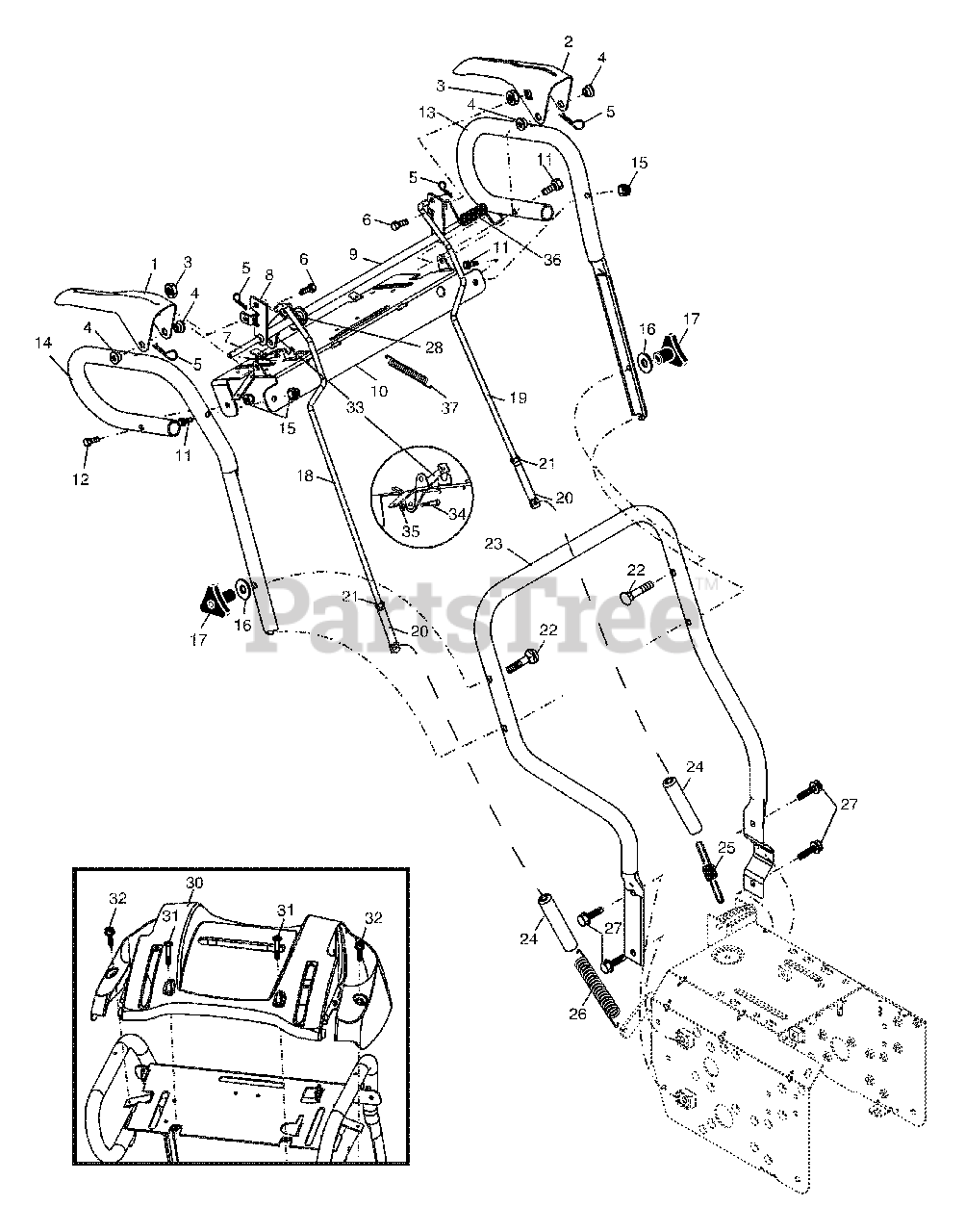

Handles Parts Diagram

  • Title

1

Husqvarna 532184110

Lever, Auger Control, RH
(Superseded to 532411423)

$27.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532184109

Lever, Traction Drive Control, LH
(Superseded to 532411391)

$27.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532179439

Nut, Cage 1/4-20
(Superseded to 532199639)

$

$

Not available

4

Husqvarna 532178888

Bushing, Flange

$

$

Not available

5

Husqvarna 532169675

Retainer, Hairpin

$7.49

$

In Stock, only 1 left!

0

6

Husqvarna 532180402

Screw, Hex Head 1/4-20 x 3/4
(Superseded to 532199640)

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532178652

Rod, Interlock

$11.99

$

In Stock, only 1 left!

0

8

Husqvarna 532184003

Tube Assembly, Interlock, RH

$14.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532178651

Tube Assembly, Interlock, LH

$21.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532184106

Panel, Control
(Superseded to 532178645)

$27.99

$

Usually ships in 3-10 days

0

11

Husqvarna 874780524

Screw, Hex Head 5/16-18 x 1-1/2
(Superseded to 539976935)

$

$

Not available

12

Husqvarna 874780528

Screw, Hex Head 5/16-18 x 1-3/4

$7.49

$

In Stock, only 2 left!

0

13

Husqvarna 532184107

Handle Tube, LH
(Superseded to 532436114)

$66.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532184108

Handle Tube, RH
(Superseded to 532407857)

$48.99

$

Usually ships in 3-10 days

0

15

Husqvarna 873800500

Nut, Lock 5/16-18

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 819131316

Washer, Flat 3/8
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 532178899

Knob, Handle

$8.99

$

In Stock, only 2 left!

0

18

Husqvarna 532184594

Rod, Auger Control

$66.99

$

In Stock, only 1 left!

0

19

Husqvarna 532179098

Rod, Traction Control

$12.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532180428

End, Control Rod

$10.99

$

Usually ships in 3-10 days

0

21

Husqvarna 873350500

Nut, Hex, Jam 5/16-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

22

Husqvarna 872120618

Bolt, Carriage 3/8-16 x 2-1/4

$7.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532184087

Handle Tube, Lower

$

$

Not available

24

Husqvarna 532180447

Sleeve, Spring

$6.99

$

In Stock, only 2 left!

0

25

Husqvarna 532180926

Spring, Traction Drive

$7.49

$

In Stock, only 4 left!

0

26

Husqvarna 532178669

Spring, Auger Control

$9.49

$

In Stock, only 4 left!

0

27

Husqvarna 871210616

Screw, Hex Head 3/8-16 x 1

$5.99

$

In Stock, only 1 left!

0

28

Husqvarna 532180494

Clip, Panel

$

$

Not available

30

Husqvarna 532183352

Console, Panel

$23.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532175262

Screw, Hex Head, Tapping #10-24 x 1-1/4

$7.49

$

Usually ships in 3-10 days

0

32

Husqvarna 532184471

Screw, Hex Head, Tapping #10-24 x 1/2

$4.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532184111

Latch, Interlock

$4.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532183518

Bolt, Shoulder

$2.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532068038

Nut, Lock 1/4-20
(Superseded to 873850400)

$

$

Not available

36

Husqvarna 532178831

Spring, Torsion
(Superseded to 532443215)

$6.49

$

In Stock, only 1 left!

0

37

Husqvarna 532178658

Spring, Interlock
(Superseded to 532193885)

$6.49

$

In Stock, only 1 left!

0
