524 ST (954633552-A) - Husqvarna 24" Snow Blower (2003-08) Auger Housing/Impeller Assembly Parts Diagram

24" Snow Blower

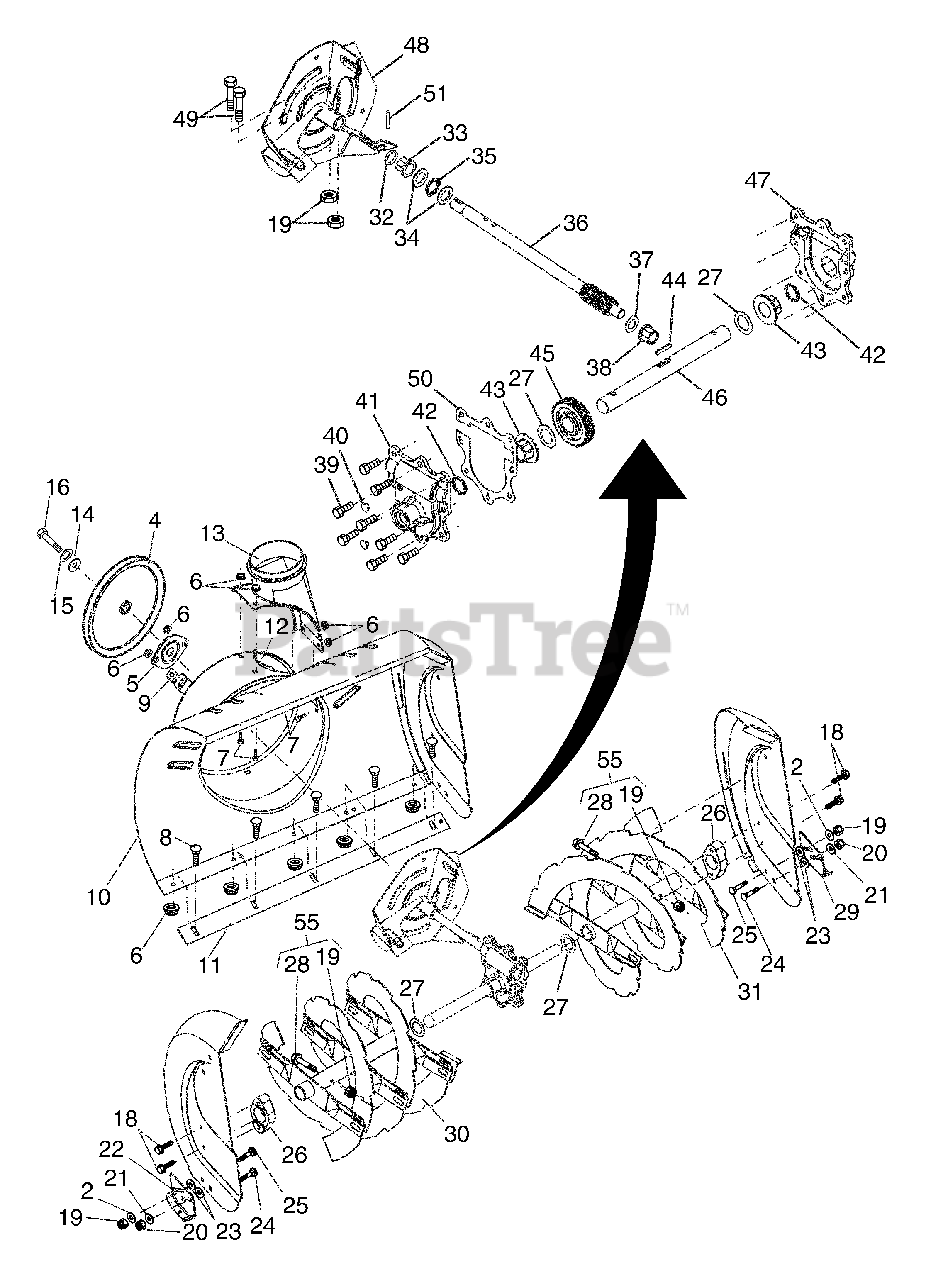

Auger Housing/Impeller Assembly Parts Diagram

  • Title
2

Husqvarna 532053847

Washer, Flat
(Superseded to 819091214)

$10.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532181083

Pulley, Impeller
(Superseded to 532427071)

$

$

Not available

5

Husqvarna 532188910

Bearing Assembly, Flange
(Superseded to 532188909)

$28.99

$

In Stock, only 4 left!

0

6

Husqvarna 532155377

Nut, Hex Flange 5/16-18

$6.49

$

Usually ships in 3-10 days

0

7

Husqvarna 532180355

Bolt, Flat Head, Carriage 5/16-18 x 5/8

$7.49

$

In Stock, Qty 13

0

8

Husqvarna 872270505

Bolt, Carriage 5/16-1 8 x 5/8
(Superseded to 872110505)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 532178820

Nut, Cage 3/8-16

$7.49

$

In Stock, only 1 left!

0

10

Husqvarna 532184090

Housing, Auger
(Superseded to 581708379)

$236.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532184096

Bar, Scraper
(Superseded to 532174838)

$15.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532184095

Bracket, Corner Discharge
(Superseded to 597433002)

$4.99

$

In Stock, Qty 9

0

13

Husqvarna 532175322

Base, Discharge Chute
(Superseded to 585056901)

$11.99

$

In Stock, Qty 6

0

14

Husqvarna 819111507

Washer, Flat

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 810040500

Washer, Lock 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

16

Husqvarna 874950512

Screw, Hex Head 5/16-18 x 3/4

$4.99

$

In Stock, only 3 left!

0

18

Husqvarna 532179582

Screw, Hex Head 5/16 x 1

$7.49

$

In Stock, only 3 left!

0

19

Husqvarna 873800400

Nut, Hex Lock 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

20

Husqvarna 873800500

Nut, Hex Lock 5/16-18

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532155415

Washer, Flat

$5.99

$

In Stock, only 2 left!

0

22

Husqvarna 532184094

Skid Plate, RH
(Superseded to 532436125)

$

$

Not available

23

Husqvarna 532179246

Washer, Nylon, Friction

$7.49

$

In Stock, Qty 10

0

24

Husqvarna 872270506

Bolt, Carriage 5/16-18 x 3/4
(Superseded to 872110506)

$7.49

$

In Stock, Qty 20+

0

25

Husqvarna 532185600

Bolt, Shoulder

$4.99

$

In Stock, only 2 left!

0

26

Husqvarna 532174658

Bearing, Auger
(Superseded to 532420478)

$9.99

$

In Stock, only 1 left!

0

27

Husqvarna 532174697

Washer, Thrust, 1"
(Superseded to 532007396)

$

$

Not available

28

Husqvarna 532187494

Bolt, Shear
(Superseded to 601001986)

$4.99

$

In Stock, Qty 20+

0

29

Husqvarna 532184093

Skid Plate, LH
(Superseded to 532174762)

$9.49

$

In Stock, only 2 left!

0

30

Husqvarna 532184102

Auger Assembly, RH
(Superseded to 532435231)

$205.99

$

In Stock, only 1 left!

0

31

Husqvarna 532184099

Auger Assembly, LH
(Superseded to 583504001)

$

$

Not available

$9.49

$

In Stock, only 2 left!

0

33

Husqvarna 532174700

Bushing, Flange 3/4
(Superseded to 532407769)

$9.49

$

In Stock, only 1 left!

0

34

Husqvarna 532174681

Washer, Thrust 3/4

$14.99

$

In Stock, only 3 left!

0

35

Husqvarna 532174684

Bearing, Thrust 3/4

$9.99

$

In Stock, only 2 left!

0

36

Husqvarna 532174660

Shaft, Impeller
(Superseded to 532407757)

$102.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532174683

Washer, Thrust 5/8

$7.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532174686

Bushing, Flange 5/8

$

$

Not available

39

Husqvarna 532150078

Screw, Hex Head 5/16-18 x 3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

40

Husqvarna 532086447

Plug, Case

$

$

Not available

41

Husqvarna 532174688

Housing, Gearbox, RH

$

$

Not available

42

$

$

Not available

43

Husqvarna 532174701

Bushing, Flange, 1"

$

$

Not available

44

Husqvarna 532178879

Key, Square 1/4 x 1/4 x 7/8
(Superseded to 532189282)

$7.49

$

In Stock, only 1 left!

0

45

Husqvarna 532174659

Gear, Worm
(Superseded to 598831601)

$265.99

$

In Stock, only 1 left!

0

46

Husqvarna 532174657

Shaft, Auger

$68.99

$

Usually ships in 3-10 days

0

47

Husqvarna 532174687

Housing, Gearbox, LH
(Superseded to 532407765)

$26.99

$

Usually ships in 3-10 days

0

48

Husqvarna 532184105

Impeller Assembly
(Superseded to 532175321)

$78.99

$

Usually ships in 3-10 days

0

49

Husqvarna 874780426

Screw, Hex Head 1/4-20 x 1-5/8
(Superseded to 596322101)

$3.99

$

In Stock, Qty 9

0

50

Husqvarna 532175311

Gasket, Gearbox

$9.99

$

Usually ships in 3-10 days

0

51

Husqvarna 532184205

Pin, Roll 3/16 x 1-1/8
(Superseded to 532007836)

$4.99

$

In Stock, Qty 7

0

55

Husqvarna 532188243

Kit, Shear
(Superseded to 601001986)

Note: (Contains 6 each of Key Numbers 19 and 28)

$4.99

$

In Stock, Qty 20+

0
