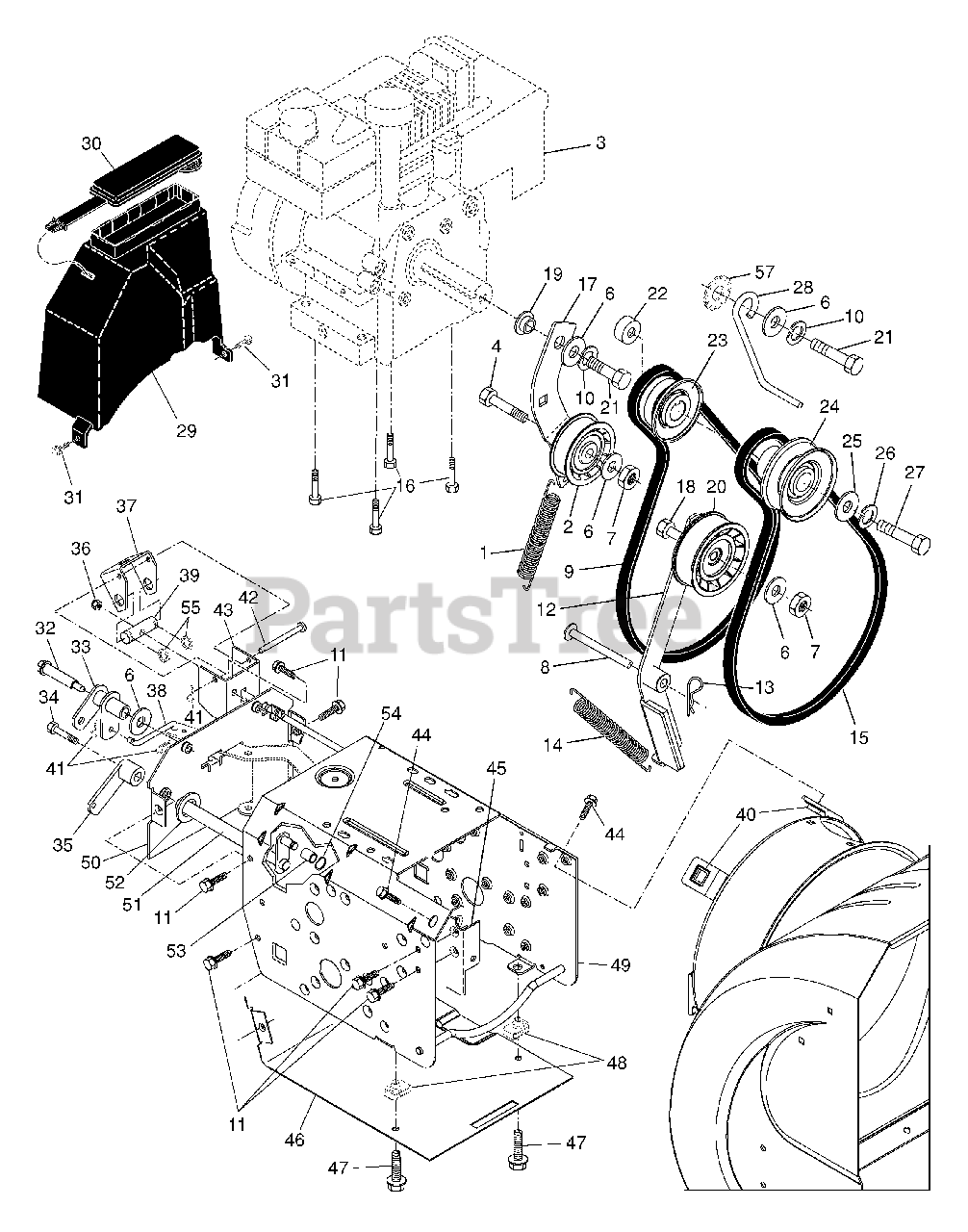

524 S (961930001-00) - Husqvarna 24" Snow Blower (2006-06) Chassis / Engine / Pulleys Parts Diagram

24" Snow Blower

Chassis / Engine / Pulleys Parts Diagram

  • Title

1

Husqvarna 532181044

Spring, Traction Idler
(Superseded to 532414557)

$6.49

$

In Stock, only 3 left!

0

2

Husqvarna 532180522

Pulley, Idler (2-1/4)

$31.99

$

In Stock, only 2 left!

0

3

Engine, Tecumseh, Model Number LH195SP

Note: (For engine service and replacement parts, call Tecumseh Products at 1-800-558-5402)

$

$

Not available

4

Husqvarna 874780520

Screw, Hex Head 5/16-18 x 1-1/4
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532059289

Washer, Flat

$4.99

$

In Stock, only 3 left!

0

7

Husqvarna 873930500

Nut, Jam, Lock 5/16-18

$7.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532175330

Pin, Idler Pivot

$5.99

$

In Stock, Qty 18

0

9

Husqvarna 532179092

V-Belt, Traction Drive
(Superseded to 532416954)

$

$

Not available

10

Husqvarna 810040500

Washer, Lock 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

11

Husqvarna 817490508

Screw, Hex Washer Head 5/16-18 x 1/2
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532179259

Idler Arm Assembly, Impeller
(Superseded to 532422762)

$91.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532085179

Retainer, Hairpin

$7.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532178828

Spring, Brake

$6.49

$

In Stock, Qty 6

0

15

Husqvarna 532183533

V-Belt, Impeller Drive
(Superseded to 532408010)

$42.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532192306

Screw, Hex Head 3/8-16 x 1-1/4

$2.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532184804

Arm, Idler
(Superseded to 585238401)

$44.99

$

In Stock, only 2 left!

0

18

Husqvarna 874780524

Screw, Hex Head 5/16-18 x 1-1/2
(Superseded to 539976935)

$

$

Not available

19

Husqvarna 532175331

Bushing, Idler Pivot
(Superseded to 587343701)

$6.99

$

Usually ships in 3-10 days

0

20

Husqvarna 532180523

Pulley, Idler (2-3/4)

$24.99

$

Usually ships in 3-10 days

0

21

Husqvarna 874610516

Screw, Hex Head 5/16-24 x 1

$4.99

$

In Stock, only 4 left!

0

22

Husqvarna 532179371

Spacer, Engine Pulley

$9.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532180478

Pulley, Engine, Traction Drive
(Superseded to 595926601)

$31.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532179157

Pulley, Engine, Impeller Drive
(Superseded to 532426491)

$26.99

$

In Stock, only 1 left!

0

25

Husqvarna 532062735

Washer, Flat 3/8

$4.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532850263

Washer, Lock 3/8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

27

Husqvarna 532851084

Screw, Hex Head 3/8-24 x 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

28

Husqvarna 532155452

Guide, Belt

$6.49

$

In Stock, only 1 left!

0

29

Husqvarna 532192213

Belt Cover Assembly
(Superseded to 532443030)

Note: (Includes Toolbox Cover)

$40.99

$

In Stock, only 1 left!

0

30

Husqvarna 532178830

Cover, Toolbox

$

$

Not available

31

Husqvarna 817490408

Screw, Hex Head 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532179256

Bolt, Shoulder 5/16-18

$

$

Not available

33

Husqvarna 532187853

Bellcrank Shifter

$15.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532180401

Screw, Hex Head 1/4-28 x 3/4

$2.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532195767

Arm, Auger Control
(Superseded to 532419877)

$87.99

$

In Stock, only 2 left!

0

36

Husqvarna 873800500

Nut, Lock 5/16-18

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532184086

Bellcrank

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532187101

Link, Speed Control

$

$

Not available

39

Husqvarna 532192110

Trunnion, Clutch

$

$

Not available

40

Husqvarna 532178890

Nut, Cage 3/8-16
(Superseded to 532178820)

$7.49

$

In Stock, only 2 left!

0

41

Husqvarna 532700279

Hairpin, Cotter 3/32 x 1/2

$6.49

$

Usually ships in 3-10 days

0

42

Husqvarna 532179065

Pin, Bellcrank

$10.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532184085

Bracket, Bellcrank

$

$

Not available

44

Husqvarna 871210616

Screw, Hex Head

$5.99

$

In Stock, only 2 left!

0

45

Husqvarna 532184074

Pivot Bracket, Impeller Idler Arm
(Superseded to 532422762)

$91.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532184084

Pan, Frame Bottom
(Superseded to 532178624)

$

$

Not available

47

Husqvarna 871020512

Screw, Hex Head 5/16-18 x 3/4

$

$

Not available

48

Husqvarna 532181156

Nut, Speed 5/16-18

$7.49

$

In Stock, only 1 left!

0

49

Husqvarna 532184073

Frame Assembly
(Superseded to 532404431)

$

$

Not available

50

Husqvarna 532188002

Plate, Frame End
(Superseded to 583706301)

$14.99

$

Usually ships in 3-10 days

0

51

Husqvarna 532199514

Shaft, Auger Control
(Superseded to 532419877)

$87.99

$

In Stock, only 2 left!

0

52

Husqvarna 532057079

Washer, Hardened

$6.49

$

In Stock, Qty 12

0

53

Husqvarna 532192275

Roller

$4.99

$

In Stock, only 1 left!

0

54

Husqvarna 532192147

Ring, Crescent

$4.99

$

In Stock, only 1 left!

0

55

Husqvarna 812000002

E-Ring

$7.49

$

In Stock, only 1 left!

0

57

Husqvarna 811050500

Washer, Lock, External Tooth 5/16
(Superseded to 810040500)

$3.99

$

In Stock, only 4 left!

0
