524 LK - Husqvarna Brush Cutter SHAFT & HANDLE Parts Diagram

Brush Cutter

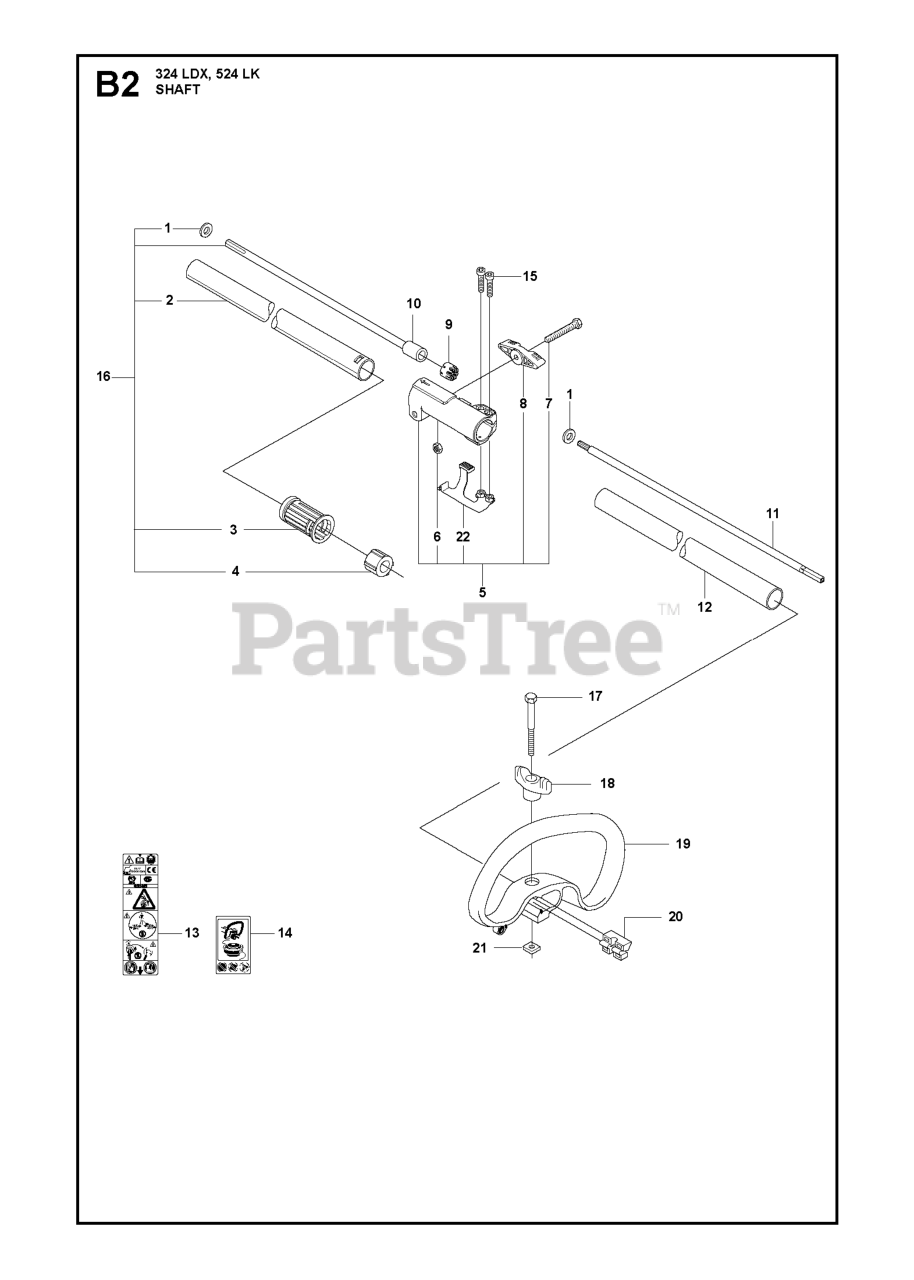

SHAFT & HANDLE Parts Diagram

  • Title

19

Husqvarna 503871903

HANDLE, LOOP
(Superseded to 503871908)

$43.99

$

Usually ships in 3-10 days

0

11

Husqvarna 537234805

DRIVE SHAFT

Note: L=699mm Ø=7mm, square end

$62.99

$

Usually ships in 3-10 days

0

9

Husqvarna 583938301

CLIP

$31.99

$

Usually ships in 3-10 days

0

16

Husqvarna 587988101

TUBE

$169.99

$

Usually ships in 3-10 days

0

6

Husqvarna 731231601

NUT

$6.49

$

In Stock, only 1 left!

0

12

Husqvarna 587987901

TUBES

Note: L=650mm Ø=24mm

$53.99

$

Usually ships in 3-10 days

0

17

Husqvarna 725238051

SCREW M6X50

$3.49

$

In Stock, only 1 left!

0

18

Husqvarna 503879001

KNOB

$6.99

$

In Stock, only 1 left!

0

10

Husqvarna 587411701

SHAFT

Note: L=843mm Ø=7mm

$100.99

$

In Stock, only 2 left!

0

21

Husqvarna 502197101

NUT

$8.99

$

Usually ships in 3-10 days

0

5

Husqvarna 576282602

CLAMPING SLEEVE

$37.99

$

Usually ships in 3-10 days

0

13

Husqvarna 589295101

LABEL WARNING TRIMMERS AND BRU

$12.99

$

Usually ships in 3-10 days

0

20

Husqvarna 503940301

SPACER PLASTIC

$11.99

$

Usually ships in 3-10 days

0

8

Husqvarna 576282401

KNOB CLAMPING SLEEVE

$4.99

$

In Stock, only 2 left!

0

14

Husqvarna 503795601

DECAL WARNING "NO BLADES"

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 537083001

SHAFT UPPER

Note: L=699mm Ø=7mm, thread end

$56.99

$

Usually ships in 3-10 days

0

1

Husqvarna 735580810

WASHER

$3.49

$

In Stock, only 2 left!

0

22

Husqvarna 576282301

LOCKING PLATE ASSY CLAMPING SL

$7.99

$

Usually ships in 3-10 days

0

15

Husqvarna 503200725

SCREW

$4.99

$

In Stock, Qty 11

0

4

Husqvarna 503785202

BUSHING

$13.99

$

In Stock, only 2 left!

0

7

Husqvarna 725237601

SCREW
(Superseded to 725237651)

$7.49

$

In Stock, only 3 left!

0

3

Husqvarna 587414601

PLUG

$6.49

$

In Stock, only 2 left!

0

2

Husqvarna 537082701

TUBE

Note: L=850mm Ø=24mm

$62.99

$

Usually ships in 3-10 days

0
