524 H (2690588) - AGCO 50" Lawn Tractor, 24hp Briggs & Stratton 50" Mower Deck - Housing & Arbor Group Parts Diagram

50" Lawn Tractor, 24hp Briggs & Stratton

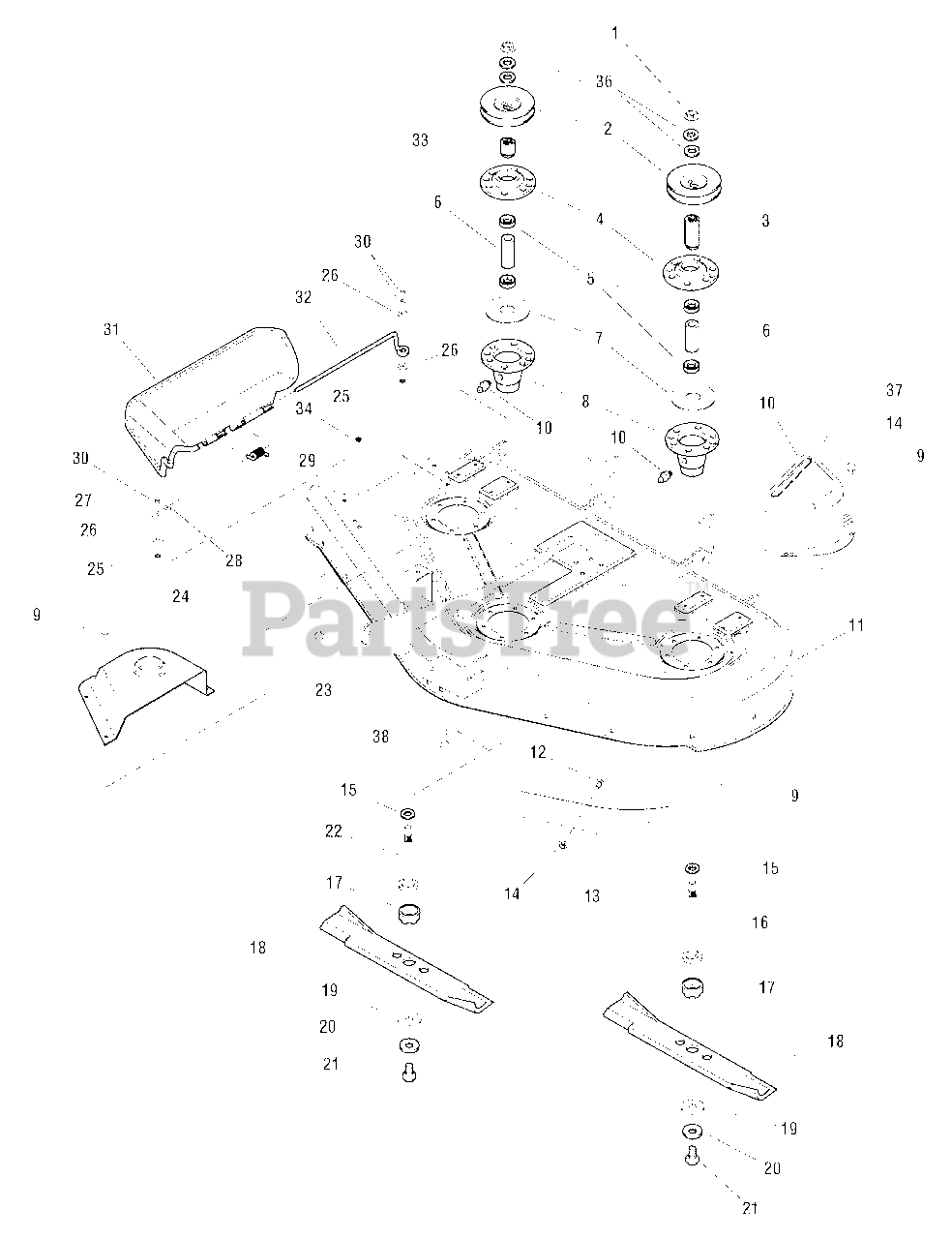

50" Mower Deck - Housing & Arbor Group Parts Diagram

  • Title

1

Simplicity 1714419

NUT, Hex Flange 9/16-18
(Superseded to 1714419SM)

$5.99

$

In Stock, Qty 20+

0

2

Simplicity 1732951

PULLEY, .68" Deep-Groove Pulley
(Superseded to 1732951SM)

Note: (Must be used with deep-groove belt)

$19.99

$

In Stock, Qty 20+

0

3

Simplicity 1713616

HUB
(Superseded to 1713616SM)

$24.99

$

In Stock, Qty 20+

0

4

Simplicity 1713199A

HOUSING, Arbor Top
(Superseded to 1713199ASM)

$16.99

$

In Stock, Qty 20+

0

5

Simplicity 1705897

BEARING, Ball 11/16 x 9/16 x 15/32
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

6

Simplicity 1732543

SPACER, Powdered Metal
(Superseded to 1732543SM)

$8.49

$

In Stock, Qty 20+

0

7

Simplicity 1707335

GASKET
(Superseded to 1707335SM)

$5.99

$

In Stock, Qty 20+

0

8

Simplicity 1713338A

HOUSING, Arbor Bottom w/Lube Fitting
(Superseded to 1713338ASM)

$41.99

$

In Stock, Qty 20+

0

9

Simplicity 1664847SM

SCREW-HEX WSHR HD TAPTT5/16-18X0.750BLK
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

10

Simplicity 1720560A

COVER, Arbor
(Superseded to 1720560ASM)

$90.99

$

In Stock, only 1 left!

0

11

Simplicity 1733129C

HOUSING ASSEMBLY, 50" (Orange)
(Superseded to 1687273SM)

$1532.99

$

Usually ships in 2-12 days

0

11

Simplicity 1733129D

HOUSING ASSEMBLY, 50" (Red)
(Superseded to 1733129DYP)

$1151.99

$

Usually ships in 2-12 days

0

12

Simplicity 1931333

CARRIAGE BOLT, 5/16-18 x 3/4 G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 1724538A

BAFFLE, Blowout, Short
(Superseded to 1724538ASM)

$45.99

$

In Stock, only 1 left!

0

14

Simplicity 1931277

NUT, Hex Flange 5/16-18, Whiz Lock Small
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

15

Simplicity 1713619

WASHER, Cup
(Superseded to 1713619SM)

$4.49

$

In Stock, Qty 20+

0

16

Simplicity 1713612

SHAFT, Arbor
(Superseded to 1713612SM)

$

$

Not available

17

Simplicity 1713196

SHIELD, Grass Lower Arbor, Heat Treated
(Superseded to 1713196SM)

$9.49

$

In Stock, Qty 20+

0

18

Simplicity 1726357

BLADE, Mower
(Superseded to 1726357ASM)

$27.99

$

In Stock, Qty 20+

0

19

Simplicity 1713089

WASHER, Hex 11/16 x 2
(Superseded to 1713089SM)

$4.99

$

In Stock, Qty 20+

0

20

Simplicity 1656916

WASHER, Spring
(Superseded to 1656916SM)

$7.49

$

In Stock, Qty 20+

0

21

Simplicity 2823471

CAPSCREW, Hex Head 7/16-14 x 1-1/4 G8
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

22

Simplicity 1713609

SHAFT, Arbor
(Superseded to 1713609SM)

$30.99

$

In Stock, Qty 20+

0

23

Simplicity 1960698

CARRIAGE BOLT, 1/4-20 x 1 G5
(Superseded to 1960698SM)

$3.99

$

In Stock, Qty 9

0

24

Simplicity 1715673

COVER, Arbor
(Superseded to 1715673SM)

$38.99

$

In Stock, only 1 left!

0

25

Simplicity 1960518

NUT, Push for 1/4 Diameter Thread
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

26

Simplicity 1960353

WASHER, 1/4
(Superseded to 703229)

$4.49

$

In Stock, Qty 8

0

27

Simplicity 1704873

CLAMP, Wire
(Superseded to 1704873SM)

$4.49

$

In Stock, Qty 20+

0

28

Simplicity 1919326

WASHER, 5/16
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

29

Simplicity 7101082

SPRING, Torsion, Chute
(Superseded to 7101082SM)

$8.49

$

In Stock, Qty 20+

0

30

Simplicity 1920397

NUT, Hex Lock ESNA Light 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

31

Simplicity 1705449

DEFLECTOR
(Superseded to 1705449SM)

$122.99

$

In Stock, only 2 left!

0

32

Simplicity 1706709

ROD, Deflector
(Superseded to 1706709SM)

$8.49

$

In Stock, Qty 20+

0

33

Simplicity 1713613

HUB
(Superseded to 1713613SM)

$15.99

$

In Stock, Qty 20+

0

34

Simplicity 1705115

PLUG
(Superseded to 1705115SM)

$4.49

$

In Stock, only 1 left!

0

36

Simplicity 1713675

WASHER, Bellville
(Superseded to 1713675SM)

$4.49

$

In Stock, Qty 20+

0

37

Simplicity 1960730

SCREW, Hex Head Serange Flange Taptite 5/16-18 x 2
(Superseded to 1960730SM)

$4.99

$

Usually ships in 2-12 days

0

38

Simplicity 1960633

CARRIAGE BOLT, 1/4-20 x 1-1/2 G5
(Superseded to 704214)

$3.99

$

Usually ships in 2-12 days

0
