1

Cub Cadet 710-1652

Hex Screw

$4.49

$

In Stock, Qty 20+

2

Cub Cadet 784-5688-0637

BRACKET-GUIDE-DRIVE - POWDER BLACK (0637)

(Superseded to 784-5688-0637) 

Variations

Cub Cadet 784-5688-0637

BRACKET-GUIDE-DRIVE - POWDER BLACK (0637)

$

Not available 

Cub Cadet 784-5688-0662

USE 784-5688-0637 BRACKET-GUI - OYSTER GRAY (0662)

$

Not available 

$

Not available 

3

Cub Cadet 784-5687-0637

USE 784-5687A-0637 BRACKET-GU - POWDER BLACK (0637)

(Superseded to 784-5687A-0637) 

Variations

Cub Cadet 784-5687-0637

USE 784-5687A-0637 BRACKET-GU - POWDER BLACK (0637)

$

Not available 

Cub Cadet 784-5687-0662

USE 784-5687A-0637 BRACKET-GU - OYSTER GRAY (0662)

$

Not available 

$

Not available 

4

Cub Cadet 756-0625

Roller Cable

$9.49

$

In Stock, Qty 11

5

Cub Cadet 738-0924

Hex Screw 1/4-28

(Superseded to 738-0924A) 

$6.99

$

In Stock, only 2 left!

6

Cub Cadet 684-0030-0629

FRAME - SILVER FLAKE (0629)

Variations

Cub Cadet 684-0030-0629

FRAME - SILVER FLAKE (0629)

$

Not available 

Cub Cadet 684-0030-0637

FRAME - POWDER BLACK (0637)

$

Not available 

Cub Cadet 684-0030-0638

FRAME - MTD/TROY-BILT RED (0638)

$

Not available 

Cub Cadet 684-0030-0665

FRAME - YARDMAN GREEN (0665)

$

Not available 

$

Not available 

7

Cub Cadet 741-0563

Ball Bearing

(Superseded to 941-0563) 

$36.99

$

In Stock, only 3 left!

8

Cub Cadet 736-0105

Bell Washer

$4.49

$

In Stock, Qty 20+

9

Cub Cadet 712-0116

Lock Jam Nut

$4.99

$

In Stock, only 3 left!

10

Cub Cadet 741-0598

Hex Flange Bearing

(Superseded to 941-0598) 

$12.99

$

In Stock, Qty 20+

11

Cub Cadet 736-0188

Flat Washer

$4.49

$

In Stock, Qty 20+

12

Cub Cadet 784-5689A-0637

Guide Bracket, Front - POWDER BLACK (0637)

(Superseded to 784-5689A-0637) 

Variations

Cub Cadet 784-5689A-0637

Guide Bracket, Front - POWDER BLACK (0637)

$

Not available 

Cub Cadet 784-5689A-0662

Guide Bracket, Front - OYSTER GRAY (0662)

$

Not available 

$

Not available 

13

Cub Cadet 710-0538

Lock Hex Screw

$4.49

$

In Stock, only 3 left!

14

Cub Cadet 736-0242

Bell Washer .340 ID x .872 OD

$4.49

$

In Stock, Qty 20+

15

Cub Cadet 714-0474

Cotter Pin

$4.99

$

In Stock, Qty 13

16

Cub Cadet 736-0160

Flat Washer .536 ID x .930 OD

$4.49

$

Usually ships in 3-6 days

17

Cub Cadet 710-0788

Hex Washer Screw 1/4-20

$7.49

$

In Stock, only 1 left!

18

Cub Cadet 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

Variations

Cub Cadet 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

Cub Cadet 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$15.99

$

Usually ships in 3-6 days

Cub Cadet 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$15.99

$

Usually ships in 3-6 days

Cub Cadet 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$12.99

$

Usually ships in 3-6 days

Cub Cadet 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

Not available 

Cub Cadet 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

Not available 

Cub Cadet 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

Not available 

$15.99

$

Usually ships in 3-6 days

19

Cub Cadet 784-5638-0483

Frame Cover, Black - CHARCOAL GRAY (0483)

(Superseded to 784-5638A) 

Variations

Cub Cadet 784-5638-0483

Frame Cover, Black - CHARCOAL GRAY (0483)

$

Not available 

Cub Cadet 784-5638-0498

Frame Cover, Black - OLD CUB YELLOW (0498)

$

Not available 

Cub Cadet 784-5638-0499

Frame Cover, Black - CUB BEIGE (0499)

$

Not available 

Cub Cadet 784-5638-0629

Frame Cover, Black - SILVER FLAKE (0629)

$

Not available 

Cub Cadet 784-5638-0637

Frame Cover, Black - POWDER BLACK (0637)

$

Not available 

Cub Cadet 784-5638-0638

Frame Cover, Black - MTD/TROY-BILT RED (0638)

$

Not available 

Cub Cadet 784-5638-0650

Frame Cover, Black - RED METALLIC (0650)

$

Not available 

Cub Cadet 784-5638-0662

Frame Cover, Black - OYSTER GRAY (0662)

$

Not available 

Cub Cadet 784-5638-0665

Frame Cover, Black - YARDMAN GREEN (0665)

$

Not available 

Cub Cadet 784-5638-0683

Frame Cover, Black - LESCO GREEN (0683)

$

Not available 

Cub Cadet 784-5638-0689

Frame Cover, Black - POLO GREEN (0689)

$

Not available 

Cub Cadet 784-5638-0709

Frame Cover, Black - MASTERCRAFT GREEN (0709)

$

Not available 

Cub Cadet 784-5638-0716

Frame Cover, Black - CUB YELLOW-99 (0716)

$

Not available 

$

Not available 

20

Cub Cadet 710-0599

Hex Washer Screw 1/4-20

$4.49

$

In Stock, Qty 20+

21

Cub Cadet 736-0351

Flat Washer .760 ID x .50 OD

$4.49

$

In Stock, Qty 20+

22

Cub Cadet 717-1445

Gear

$107.99

$

Usually ships in 3-6 days

23

Cub Cadet 714-0126

Key

$4.99

$

In Stock, Qty 20+

24

Cub Cadet 717-1444

7-Tooth Shaft

(Superseded to 917-04094) 

$96.99

$

Usually ships in 3-6 days

25

Cub Cadet 715-0249

Roll Pin

(Superseded to 915-0249) 

$6.99

$

In Stock, Qty 19

26

Cub Cadet 714-0143

Klik Pin

(Superseded to 714-0143A) 

$6.49

$

In Stock, only 2 left!

27

Cub Cadet 684-0042B

Friction Wheel Assembly

(Superseded to 984-0042C) 

$138.99

$

In Stock, Qty 8

28

Cub Cadet 656-0012A

Friction Disc Wheel

(Superseded to 956-0012A) 

$125.99

$

In Stock, only 2 left!

29

Cub Cadet 684-0013B

Wheel Shift Rod Assembly

(Superseded to 684-04243) 

$

Not available 

30

Cub Cadet 746-0897

Drive Cable

(Superseded to 946-0897) 

$24.99

$

In Stock, only 2 left!

31

Cub Cadet 748-0190

Spacer

$6.49

$

In Stock, Qty 8

32

Cub Cadet 684-0021-0637

Support Bracket Assembly - POWDER BLACK (0637)

(Superseded to 984-0021-0637) 

Variations

Cub Cadet 684-0021-0637

Support Bracket Assembly - POWDER BLACK (0637)

$

Not available 

$

Not available 

33

Cub Cadet 732-0264

Extension Spring

(Superseded to 932-0264) 

$4.99

$

In Stock, only 2 left!

34

Cub Cadet 712-0711

Jam Nut 3/8-24

$4.49

$

In Stock, Qty 20+

35

Cub Cadet 746-0898

Drive Cable

(Superseded to 946-0898) 

$27.99

$

In Stock, only 2 left!

36

Cub Cadet 738-0869

Axle 13" Wheels (524)

$139.99

$

Usually ships in 3-6 days

Cub Cadet 738-0830

Axle 16" Wheels (826)

$

Not available 

37

Cub Cadet 784-5617A

Friction Plate

(Superseded to 984-0042C) 

$138.99

$

In Stock, Qty 8

38

Cub Cadet 735-0243

Friction Wheel Rubber

(Superseded to 935-0243B) 

$15.99

$

In Stock, Qty 20+

39

Cub Cadet 718-0301A

Friction Wheel Hub

(Superseded to 984-0042C) 

$138.99

$

In Stock, Qty 8

40

Cub Cadet 618-0063

Friction Wheel Bearing

$92.99

$

Usually ships in 3-6 days

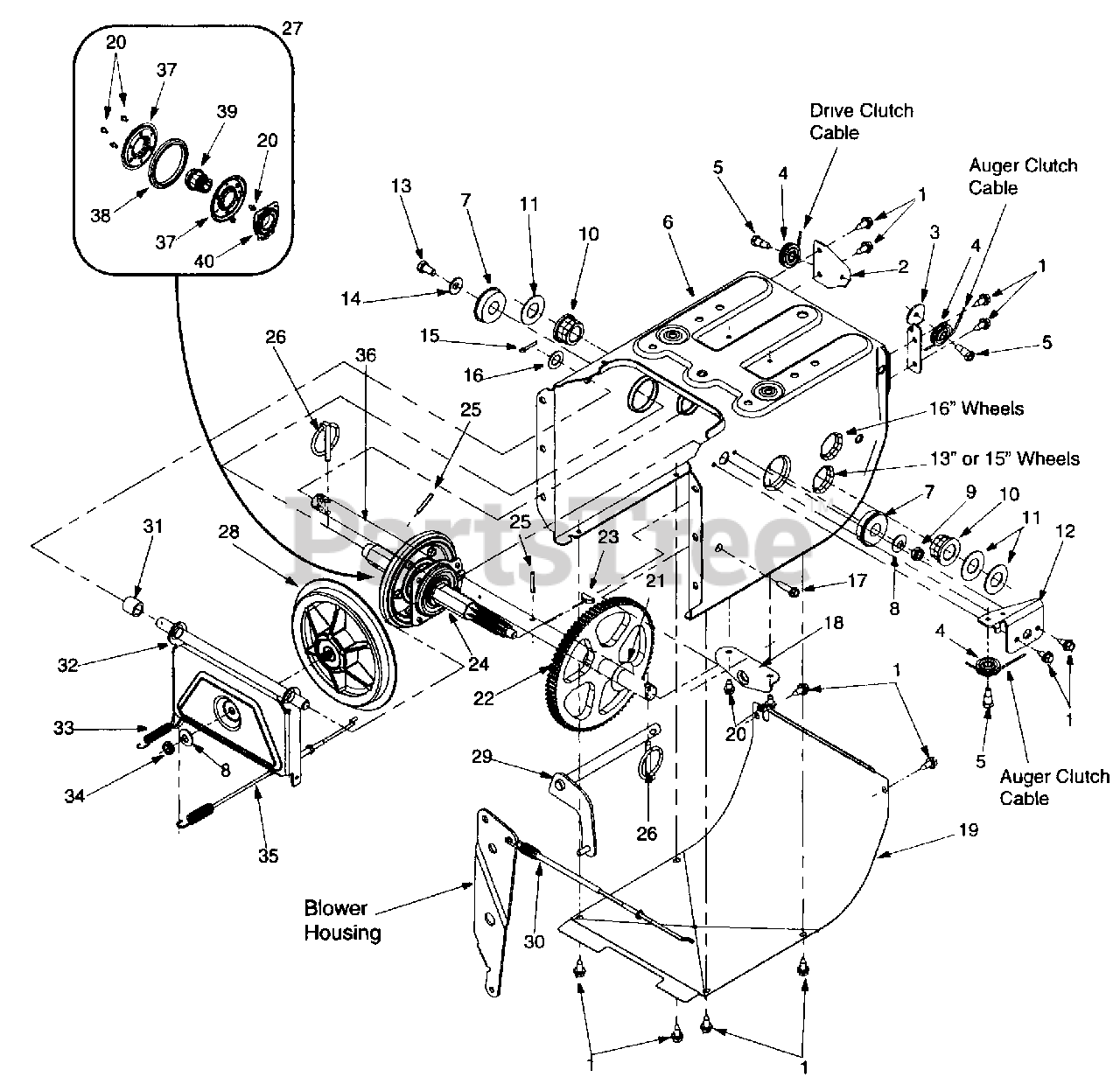

524 (31AE600E382) - Cub Cadet 24" Gold Series Snow Thrower (1998) Frame Assembly Parts Diagram
