524 (31AE600E022) - Cub Cadet 24" Gold Series Snow Thrower (2001) Handle & Controls Parts Diagram

24" Gold Series Snow Thrower

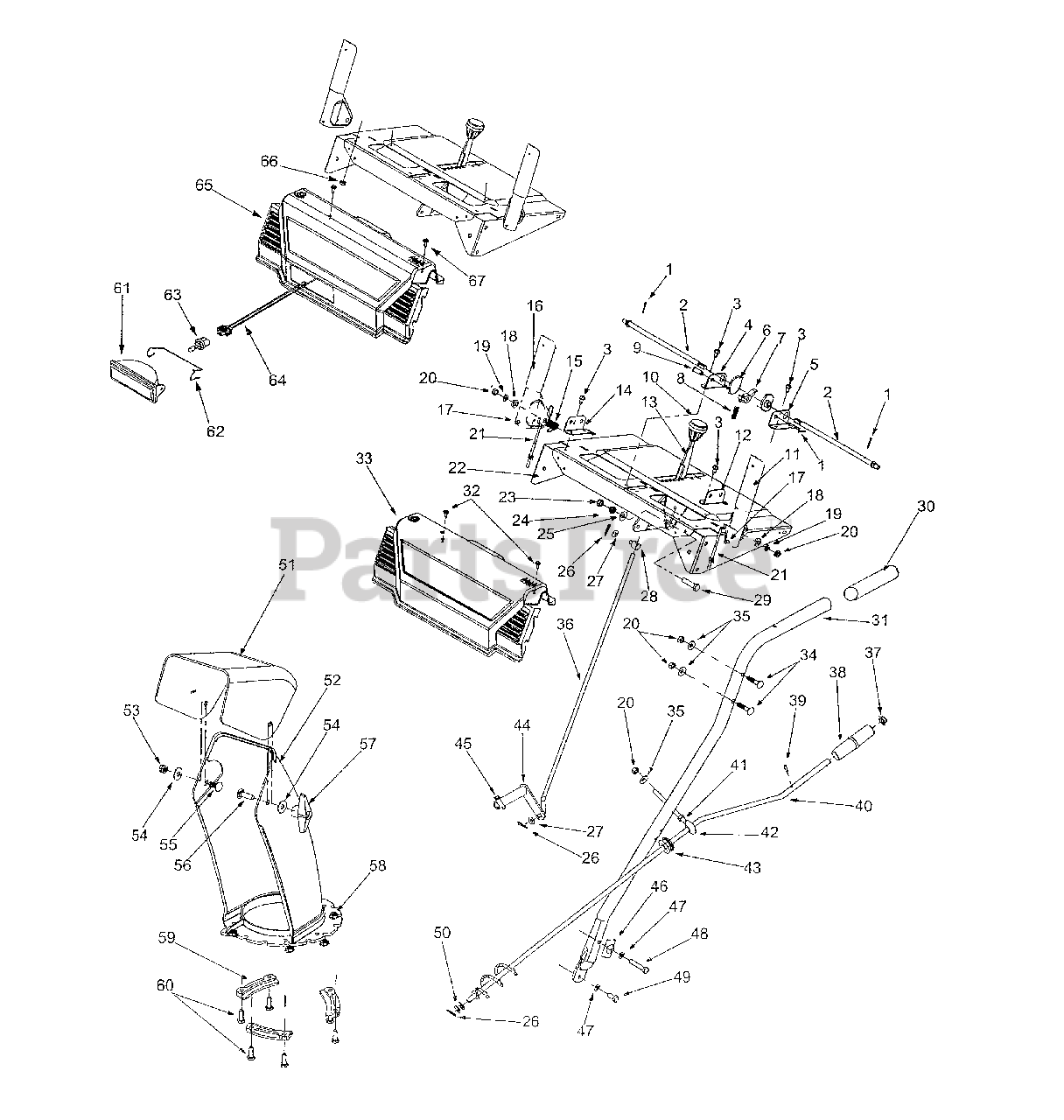

Handle & Controls Parts Diagram

  • Title

1

Cub Cadet 714-0507

Cotter Pin

$4.49

$

In Stock, Qty 12

0

2

Cub Cadet 747-0877

Rod

$22.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0599

Hex Washer Screw 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 784-5680

Handle Support Bracket - RH
(Superseded to 784-5680-0637)

Variations

Cub Cadet 784-5680-0637

BRACKET-HDL SUP-RH - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 784-5679

Handle Support Bracket - LH
(Superseded to 784-5679-0637)

Variations

Cub Cadet 784-5679-0637

BRACKET-HANDLE-LH - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 748-0362

Cam Lock Handle

$7.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 748-0363

Handle Lock Pawl
(Superseded to 948-0363)

$16.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 732-0145

Compression Spring

$4.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 711-0653

Clevis Pin

$3.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 720-0232

Knob
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

11

Cub Cadet 684-0037

Handle Assy - LH
(Superseded to 684-0037B)

$38.99

$

In Stock, only 2 left!

0

12

Cub Cadet 784-5681

Handle Support Bracket - LH

Variations

Cub Cadet 784-5681-0637

USE 784-5681 BRACKET-HANDLE S - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 784-5619A

Shift Handle
(Superseded to 753-05395)

Variations

Cub Cadet 784-5619A-0637

USE 753-05395 KIT-SHIFT HANDL - POWDER BLACK (0637)

$

$

Not available

$

$

14

Cub Cadet 784-5682

Handle Support Bracket - RH
(Superseded to 784-5682-0637)

Variations

Cub Cadet 784-5682-0637

Handle Support Bracket - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 732-0746

Torsion Spring

$4.49

$

In Stock, Qty 13

0

16

Cub Cadet 684-0036

Handle Assy - RH
(Superseded to 684-0036A)

$44.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 735-0199A

Rubber Bumper

$7.99

$

In Stock, only 4 left!

0

18

Cub Cadet 736-0509

Washer

$6.99

$

In Stock, only 1 left!

0

19

Cub Cadet 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 746-0778

Cable
(Superseded to 946-0778)

$10.99

$

In Stock, Qty 5

0

22

Cub Cadet 684-0103

Panel
(Superseded to 684-0103A)

Variations

Cub Cadet 684-0103-0498

HANDLE PANEL ASSEMBLY (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 684-0103-0629

HANDLE PANEL ASSEMBLY - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 684-0103-0637

USE 684-0103A-0637 PANEL ASM: - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 684-0103-0638

USE 684-0103A-0638 PANEL ASM: - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 684-0103-0662

HANDLE PANEL ASSEMBLY (OYSTER GRAY) - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 684-0103-0665

HANDLE PANEL ASSEMBLY (YARD-MAN GREEN) - YARDMAN GREEN (0665)

$

$

Not available

$

$

23

Cub Cadet 712-0116

Jam Lock Nut 3/8-24

$4.99

$

In Stock, Qty 6

0

24

Cub Cadet 732-0193

Compression Spring

$4.99

$

In Stock, Qty 6

0

25

Cub Cadet 736-0105

Bell Washer

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 736-0275

Flat Washer 5/16

$6.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 711-0677

Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

29

Cub Cadet 710-0459A

Hex Cap Screw 3/8-24 x 1.50

$6.99

$

In Stock, Qty 8

0

30

Cub Cadet 720-0274

Grip

$11.99

$

In Stock, Qty 11

0

31

Cub Cadet 749-0910B

Handle - RH
(Superseded to 749-0910C-0637)

Variations

Cub Cadet 749-0910B-0637

USE 749-0910C-0637 HANDLE-RH - POWDER BLACK (0637)

$

$

Not available

$

$

Cub Cadet 749-0911B

Handle - LH

Variations

Cub Cadet 749-0911B-0637

HANDLE (LH) - POWDER BLACK (0637)

$

$

Not available

$

$

32

Cub Cadet 710-1003

Hew Washer Screw
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

33

Cub Cadet 731-1391

Handle Panel

$43.99

$

Usually ships in 3-6 days

0

Cub Cadet 731-1393

Handle Panel w/ Top Light
(Superseded to 931-1393)

$

$

Not available

34

Cub Cadet 710-0262

Carriage Bolt 5/16-18 -x I.50

$3.99

$

In Stock, Qty 11

0

35

Cub Cadet 736-0242

Bell Washer.340 ID x .872 OD

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 747-0798A

Shift Rod

$38.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 726-0100

Push Cap

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 720-0201A

Chute Knob

$10.99

$

In Stock, Qty 5

0

39

Cub Cadet 715-0138

Roll Pin
(Superseded to 915-0138)

$4.99

$

In Stock, only 1 left!

0

40

Cub Cadet 705-5204A

Chute Crank
(Superseded to 984-0022)

$99.99

$

In Stock, only 3 left!

0

41

Cub Cadet 712-3010

Hex Nut 5/16 - 18

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 747-0697

Chute Crank Eyebolt

$8.49

$

In Stock, only 1 left!

0

43

Cub Cadet 735-0234

Rubber Grommet

$5.49

$

In Stock, only 2 left!

0

44

Cub Cadet 684-0008A

Shift Arm Assembly
(Superseded to 684-0008A-0637)

Variations

Cub Cadet 684-0008A-0637

Shift Arm Assembly - POWDER BLACK (0637)

$50.99

$

Usually ships in 3-6 days

0

$50.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 710-0788

Hex Washer Screw 1/4-20 x 1.0

$7.49

$

In Stock, only 2 left!

0

46

Cub Cadet 784-5599

Handle Tab
(Superseded to 984-5599)

$4.49

$

In Stock, Qty 20+

0

47

Cub Cadet 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

48

Cub Cadet 710-3180

Hex Cap Screw 5/16-18 x 1.75

$5.49

$

In Stock, Qty 20+

0

49

Cub Cadet 710-3008

Hex Cap Screw 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

50

Cub Cadet 736-0185

Flat Washer

$3.99

$

In Stock, Qty 20+

0

51

Cub Cadet 731-0921

Upper Chute
(Superseded to 731-04426C)

$19.99

$

In Stock, Qty 14

0

52

Cub Cadet 731-1300A

Lower Chute
(Superseded to 731-1300E)

$56.99

$

In Stock, Qty 8

0

53

Cub Cadet 712-0429

Hex Lock Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

54

Cub Cadet 736-0159

5/16 Washer

$4.49

$

In Stock, Qty 20+

0

55

Cub Cadet 710-0451

Carriage Bolt 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

56

Cub Cadet 710-0276

Carriage Screw 5/16-18 x 1.0

$3.99

$

In Stock, Qty 20+

0

57

Cub Cadet 720-0284

Knob

$6.99

$

In Stock, Qty 20+

0

58

Cub Cadet 712-3027

Hex Lock Nut 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0

59

Cub Cadet 731-0851A

Flange Keeper

$4.49

$

In Stock, Qty 20+

0

60

Cub Cadet 710-3015

Hex Cap Screw 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

61

Cub Cadet 725-1672

Lens Housing Assembly
(Superseded to 925-1672)

Note: If Equipped

$89.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 747-1136

Headlight Retaining Wire

Note: If Equipped

$11.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 725-1658

Halogen Light
(Superseded to 925-1658)

Note: If Equipped

$60.99

$

In Stock, only 4 left!

0

64

Cub Cadet 629-0059

Light Harness
(Superseded to 929-0059)

Note: If Equipped

$100.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 731-1392

Panel w/light

Note: If Equipped

$

$

Not available

66

Cub Cadet 712-0271

Hex Nut 1/4-20

Note: If Equipped

$4.49

$

In Stock, Qty 20+

0

67

Cub Cadet 710-1003

Hex Washer Screw #10-16 x .625
(Superseded to 710-04669)

Note: If Equipped

$3.49

$

In Stock, Qty 20+

0
