524 (31AE600E022) - Cub Cadet 24" Gold Series Snow Thrower (2000) Gear Assembly Parts Diagram

24" Gold Series Snow Thrower

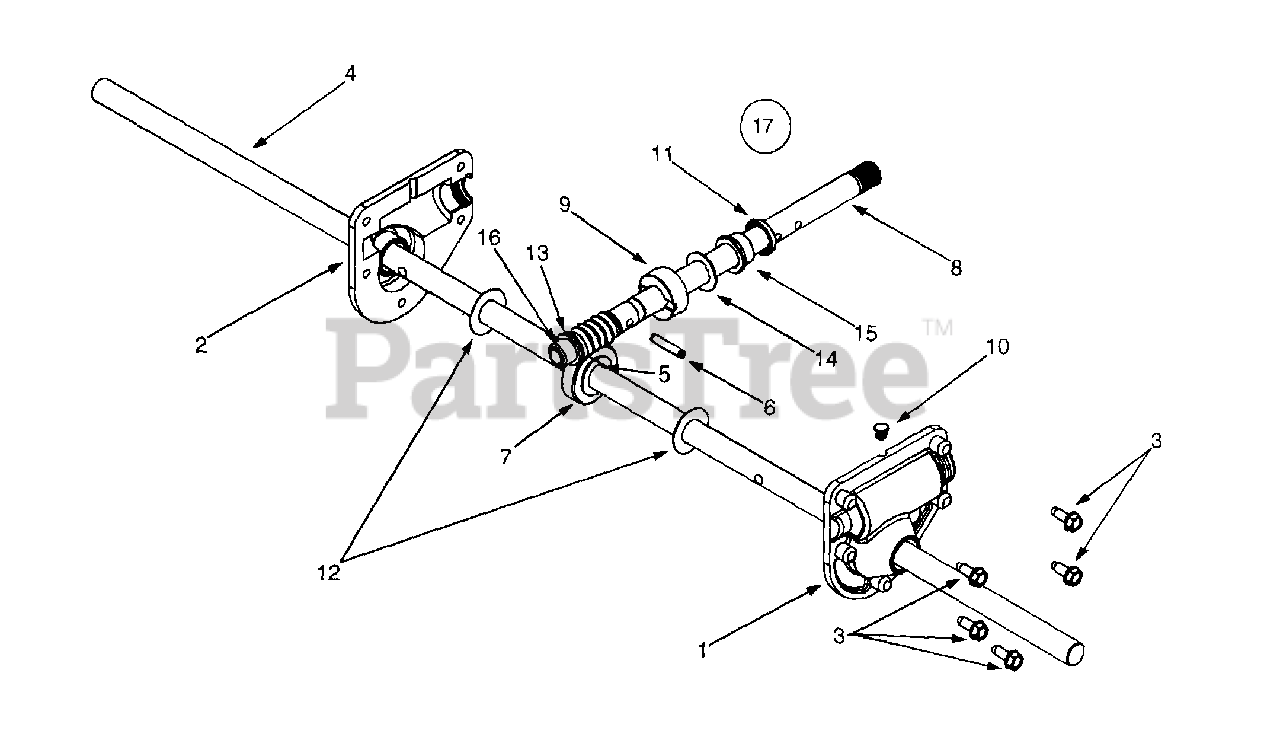

Gear Assembly Parts Diagram

  • Title

1

Cub Cadet 618-0123

RH Reducer Housing
(Superseded to 918-0123A)

$52.99

$

In Stock, Qty 20+

0

2

Cub Cadet 618-0124

LH Reducer Housing
(Superseded to 918-0124A)

$52.99

$

In Stock, Qty 16

0

3

Cub Cadet 710-0642

Hex Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 711-0908

Spiral Axle 24"
(Superseded to 711-0908A)

Note: For model 524

$

$

Not available

Cub Cadet 711-0909

Spiral Axle 26"
(Superseded to 711-0909A)

Note: For model 826

$

$

Not available

5

Cub Cadet 714-0161

Key
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 715-0143

Pin-Spiral

$4.99

$

In Stock, Qty 15

0

7

Cub Cadet 717-0528

Worm Gear, 20T
(Superseded to 917-04861)

$43.99

$

In Stock, Qty 20+

0

8

Cub Cadet 717-0526

Worm Shaft
(Superseded to 717P0526)

$108.99

$

In Stock, Qty 5

0

9

Cub Cadet 718-0186

Thrust Collar

$8.49

$

In Stock, Qty 12

0

10

Cub Cadet 721-0325

Grease Plug

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 721-0327

Grease Seal

$6.99

$

In Stock, Qty 20+

0

12

Cub Cadet 736-0351

Flat Washer .76 x 1.5 x .030

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 736-0369

Flat Washer .508 x 1.0 x .020

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 736-0445

Flat Washer .76 x 1.5 x .060

$4.49

$

In Stock, Qty 13

0

15

Cub Cadet 741-0662

Flange Bearing .75 x 1.0 x .59

$10.99

$

In Stock, Qty 17

0

16

Cub Cadet 741-0663

Flange Bearing .75 x 1.0 x .925

$9.99

$

In Stock, Qty 20+

0

17

Cub Cadet 618-0120

Ass'y. Complete 24"
(Superseded to 918-0414B)

Note: For model 524

$

$

Not available

Cub Cadet 618-0121

Ass'y. Complete 26"
(Superseded to 918-0415B)

Note: For model 826

$442.99

$

Usually ships in 3-6 days

0
