524 (31AE600E022) - Cub Cadet 24" Gold Series Snow Thrower (2000) Blower Housing Parts Diagram

24" Gold Series Snow Thrower

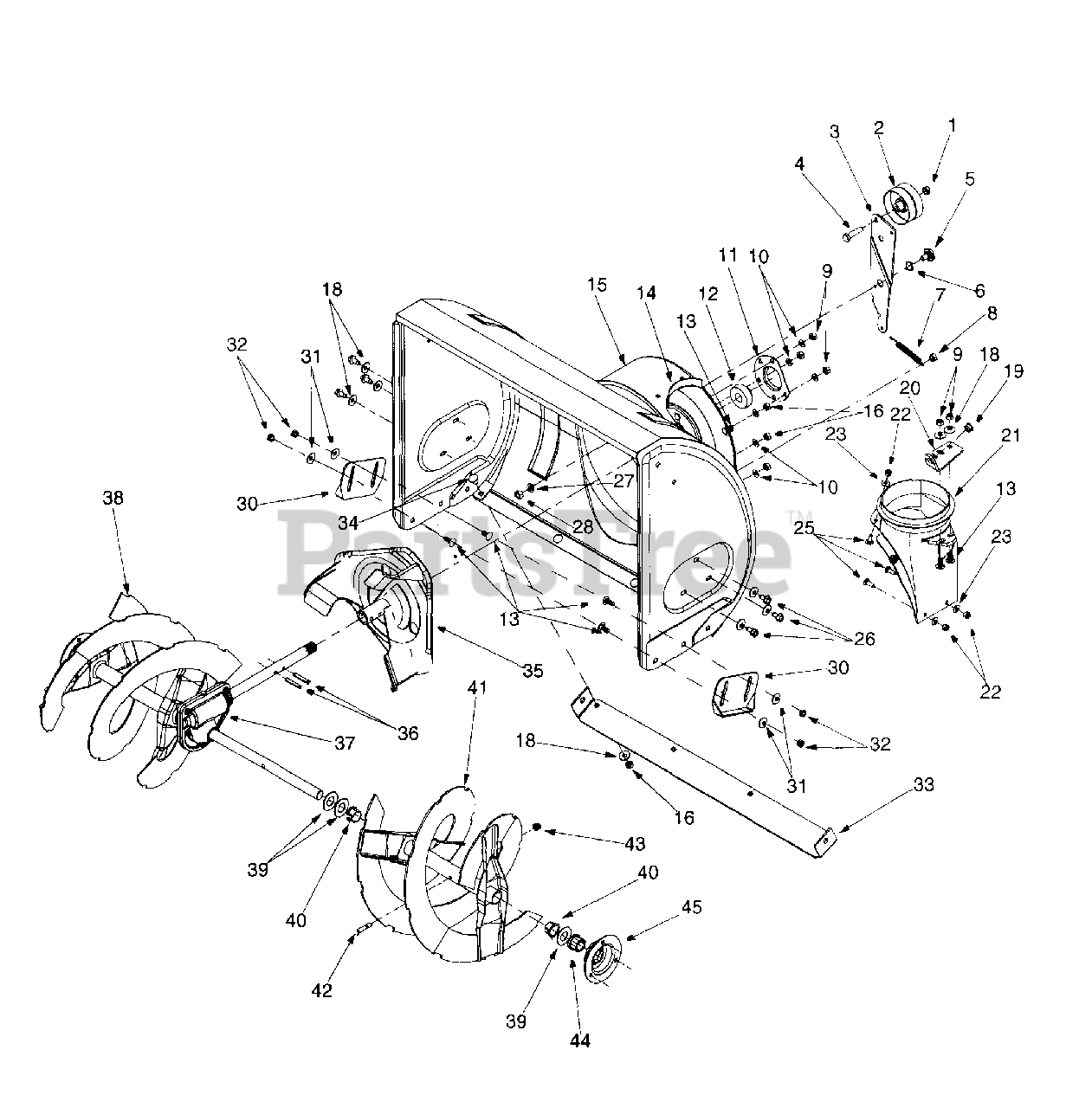

Blower Housing Parts Diagram

  • Title

1

Cub Cadet 712-0116

Lock Jam Nut 3/8-24

$4.99

$

In Stock, Qty 6

0

2

Cub Cadet 756-0178

Flat Idler

$20.99

$

In Stock, Qty 6

0

3

Cub Cadet 784-5632A

Auger Idler Arm
(Superseded to 984-0064-0637)

Variations

Cub Cadet 784-5632A-0637

USE 984-0064-0637 ARM ASSY-ID - POWDER BLACK (0637)

$32.99

$

In Stock, only 2 left!

0

$32.99

$

In Stock, only 2 left!

0

4

Cub Cadet 710-0459A

Hex Cap Screw 3/8-24 x 1.50

$6.99

$

In Stock, Qty 8

0

5

Cub Cadet 738-0281

Shoulder Screw

$10.99

$

In Stock, Qty 7

0

6

Cub Cadet 736-0174

Wave Washer

$6.99

$

In Stock, Qty 11

0

7

Cub Cadet 732-0611

Extension Spring
(Superseded to 932-0611)

$7.49

$

In Stock, Qty 20+

0

8

Cub Cadet 712-3068

Hex Nut 5/16-18
(Superseded to 912-3009)

$

$

Not available

9

Cub Cadet 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet 05931

Housing
(Superseded to 05931A)

$10.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 741-0309

Ball Bearing
(Superseded to 941-0309)

$74.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-0451

Carriage Bolt 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 705-5226

Reinforcement Chute

Variations

Cub Cadet 705-5226-0498

Chute Reinforcement - OLD CUB YELLOW (0498)

$10.99

$

In Stock, Qty 7

0

Cub Cadet 705-5226-0637

Chute Reinforcement - POWDER BLACK (0637)

$10.99

$

In Stock, Qty 7

0

Cub Cadet 705-5226-0638

Chute Reinforcement - MTD/TROY-BILT RED (0638)

$10.99

$

In Stock, Qty 7

0

$9.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 684-0039C

24" Housing Assembly
(Superseded to 684-0039D)

Note: For model 524

Variations

Cub Cadet 684-0039C-0483

24" HOUSING ASSEMBLY(CHARCOAL) - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 684-0039C-0498

24" HOUSING ASSEMBLY(CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 684-0039C-0629

USE 684-0039D-0629 HOUSING AS - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 684-0039C-0638

24" HOUSING ASSEMBLY(MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 684-0039C-0650

USE 684-0039D-0650 HOUSING AS - RED METALLIC (0650)

$

$

Not available

Cub Cadet 684-0039C-0662

USE 684-0039D-0662 HOUSING AS - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 684-0039C-0665

USE 684-0039D-0665 HOUSING AS - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 684-0039C-0687

USE 684-0039D-0665 HOUSING AS - PINE GREEN (0687)

$

$

Not available

Cub Cadet 684-0039C-0689

USE 684-0039D-0689 HOUSING AS - POLO GREEN (0689)

$

$

Not available

Cub Cadet 684-0039C-0691

USE 684-0039D-0691 HOUSING AS - BLACK JACK (0691)

$

$

Not available

Cub Cadet 684-0039C-0716

24" HOUSING ASSEMBLY(CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

$

$

Cub Cadet 684-0040C

26" Housing Assembly
(Superseded to 684-0040D)

Note: For model 826

Variations

Cub Cadet 684-0040C-0709

USE 684-0040D-0709 HOUSING AS - MASTERCRAFT GREEN (0709)

$

$

Not available

Cub Cadet 684-0040C-0483

USE 684-0040D-0483 HOUSING AS - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 684-0040C-0498

USE 684-0040D-0716 HOUSING AS - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 684-0040C-0638

USE 684-0040D-0638 HOUSING AS - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 684-0040C-0650

USE 684-0040D-0650 HOUSING AS - RED METALLIC (0650)

$

$

Not available

Cub Cadet 684-0040C-0662

26" HOUSING ASSEMBLY - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 684-0040C-0691

26" HOUSING ASSEMBLY - BLACK JACK (0691)

$

$

Not available

Cub Cadet 684-0040C-0629

USE 684-0040D-0629 HOUSING AS - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 684-0040C-0665

USE 684-0040D-0665 HOUSING AS - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 684-0040C-0667

USE 684-0040D-0667 HOUSING AS - MIDNIGHT BLUE (0667)

$

$

Not available

Cub Cadet 684-0040C-0683

26" HOUSING ASSEMBLY - LESCO GREEN (0683)

$

$

Not available

Cub Cadet 684-0040C-0689

USE 684-0040D-0689 HOUSING AS - POLO GREEN (0689)

$

$

Not available

$

$

16

Cub Cadet 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 741-0475

Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 784-5647

Chute Crank Bracket
(Superseded to 784-5647-0637)

Variations

Cub Cadet 784-5647-0637

Chute Crank Bracket, Black - POWDER BLACK (0637)

$14.99

$

In Stock, Qty 5

0

$14.99

$

In Stock, Qty 5

0

21

Cub Cadet 731-1379A

Chute Adapter
(Superseded to 731-1379D)

$65.99

$

In Stock, Qty 8

0

22

Cub Cadet 712-0324

Hex Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

23

Cub Cadet 736-0463

Flat Washer

$4.49

$

In Stock, Qty 12

0

25

Cub Cadet 710-0703

Carriage Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 710-0604

Hex Washer Screw 5/16-18
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 736-0169

Lock Washer 3/8

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 12

0

30

Cub Cadet 784-5580

Snow Shoe

Variations

Cub Cadet 784-5580-0637

Snow Slide Shoe, Black - POWDER BLACK (0637)

$23.99

$

In Stock, Qty 20+

0

Cub Cadet 784-5580-0638

Snow Slide Shoe, Black - MTD/TROY-BILT RED (0638)

$23.99

$

In Stock, Qty 20+

0

Cub Cadet 784-5580-0662

Snow Slide Shoe, Black - OYSTER GRAY (0662)

$23.99

$

In Stock, Qty 20+

0

Cub Cadet 784-5580-0665

Snow Slide Shoe, Black - YARDMAN GREEN (0665)

$23.99

$

In Stock, Qty 20+

0

Cub Cadet 784-5580-0688

Snow Slide Shoe, Black - SPRING GREEN (0688)

$23.99

$

In Stock, Qty 20+

0

Cub Cadet 784-5580-0721

Snow Skid Shoe - SEARS RED (0721)

$23.99

$

In Stock, Qty 18

0

Cub Cadet 784-5580-4044

Snow Skid Shoe - CRAFTSMAN RED (4044)

$23.99

$

In Stock, Qty 18

0

Cub Cadet 784-5580-0691

Snow Slide Shoe, Black - BLACK JACK (0691)

$23.99

$

In Stock, Qty 7

0

Cub Cadet 784-5580-0729

Snow Skid Shoe - STORM GRAY (0729)

$23.99

$

In Stock, Qty 20+

0

Cub Cadet 784-5580-4043

Snow Skid Shoe - CRAFTSMAN METALLIC GRAY (4043)

$23.99

$

In Stock, Qty 20+

0

$23.99

$

In Stock, Qty 20+

0

31

Cub Cadet 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 784-5581A

24" Shave Plate
(Superseded to 790-00120-0637)

Note: For model 524

Variations

Cub Cadet 784-5581A-0637

Shave Plate, 24" Powder Black - POWDER BLACK (0637)

$34.99

$

In Stock, Qty 20+

0

Cub Cadet 784-5581A-0662

Shave Plate, 24" Gray - OYSTER GRAY (0662)

$34.99

$

In Stock, Qty 20+

0

Cub Cadet 784-5581A-0687

Shave Plate, 24" Green - PINE GREEN (0687)

$34.99

$

In Stock, Qty 20+

0

$34.99

$

In Stock, Qty 20+

0

Cub Cadet 784-5579A

26" Shave Plate
(Superseded to 790-00121-0637)

Note: For model 826

Variations

Cub Cadet 784-5579A-0629

Shave Plate, 26" Silver - SILVER FLAKE (0629)

$36.99

$

In Stock, Qty 20+

0

Cub Cadet 784-5579A-0637

Shave Plate, 26" Powder Black - POWDER BLACK (0637)

$36.99

$

In Stock, Qty 20+

0

Cub Cadet 784-5579A-0638

Shave Plate, 26" Red - MTD/TROY-BILT RED (0638)

$36.99

$

In Stock, Qty 20+

0

Cub Cadet 784-5579A-0667

Shave Plate, 26" Blue - MIDNIGHT BLUE (0667)

$36.99

$

In Stock, Qty 20+

0

Cub Cadet 784-5579A-0689

Shave Plate, 26" Green - POLO GREEN (0689)

$36.99

$

In Stock, Qty 20+

0

Cub Cadet 784-5579A-0691

Shave Plate, 26" Black - BLACK JACK (0691)

$36.99

$

In Stock, Qty 20+

0

Cub Cadet 784-5579A-0692

Shave Plate, 26" Blue - AGWAY BLUE (0692)

$36.99

$

In Stock, Qty 20+

0

$36.99

$

In Stock, Qty 20+

0

34

Cub Cadet 710-0260

Carriage Bolt 5/16-18 x .62
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 684-0065

Impeller Assembly
(Superseded to 984-0065-0637)

Variations

Cub Cadet 684-0065-0662

Impeller, 3-Blade 12" - OYSTER GRAY (0662)

$90.99

$

In Stock, Qty 6

0

Cub Cadet 684-0065-0665

Impeller, 3-Blade 12" - YARDMAN GREEN (0665)

$90.99

$

In Stock, Qty 6

0

$90.99

$

In Stock, Qty 6

0

36

Cub Cadet 715-0114

Pin

$9.49

$

In Stock, Qty 20+

0

37

Cub Cadet 618-0120

24" Gear Assembly
(Superseded to 918-0414B)

Note: For model 524

$

$

Not available

Cub Cadet 618-0121

26" Gear Assembly
(Superseded to 918-0415B)

Note: For model 826

$442.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 605-5188A

Spiral 24" RH
(Superseded to 684-04180-0637)

Note: For model 524

Variations

Cub Cadet 605-5188A-0637

Auger Spiral Assembly, RH 24" - POWDER BLACK (0637)

$

$

Not available

$

$

Cub Cadet 605-5192A

Spiral 26" RH
(Superseded to 684-04182-0637)

Note: For model 826

Variations

Cub Cadet 605-5192A-0637

Spiral Assembly, RH 26" - POWDER BLACK (0637)

$187.99

$

Usually ships in 3-6 days

0

$187.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 736-0188

Flat Washer

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 741-0493A

Flange Bushing
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 605-5189A

Spiral 24" LH
(Superseded to 684-04181-0637)

Note: For model 524

Variations

Cub Cadet 605-5189A-0637

Auger Spiral Assembly, LH 24" - POWDER BLACK (0637)

$178.99

$

In Stock, only 1 left!

0

$178.99

$

In Stock, only 1 left!

0

Cub Cadet 605-5193A

Spiral 26" LH
(Superseded to 684-04183-0637)

Note: For model 826

Variations

Cub Cadet 605-5193A-0637

Spiral Assembly, LH 26" - POWDER BLACK (0637)

$

$

Not available

$

$

42

Cub Cadet 710-0890A

Shear Bolt 5/16-18 x 1.5

$1.99

$

In Stock, Qty 20+

0

43

Cub Cadet 712-0429

Lock Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

44

Cub Cadet 741-0245

Hex Flange Bearing
(Superseded to 941-0245)

$9.99

$

In Stock, Qty 20+

0

45

Cub Cadet 784-5618

Bearing Housing
(Superseded to 784-5618A-0637)

Variations

Cub Cadet 784-5618-0637

Bearing Housing, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 2 left!

0

$13.99

$

In Stock, only 2 left!

0
