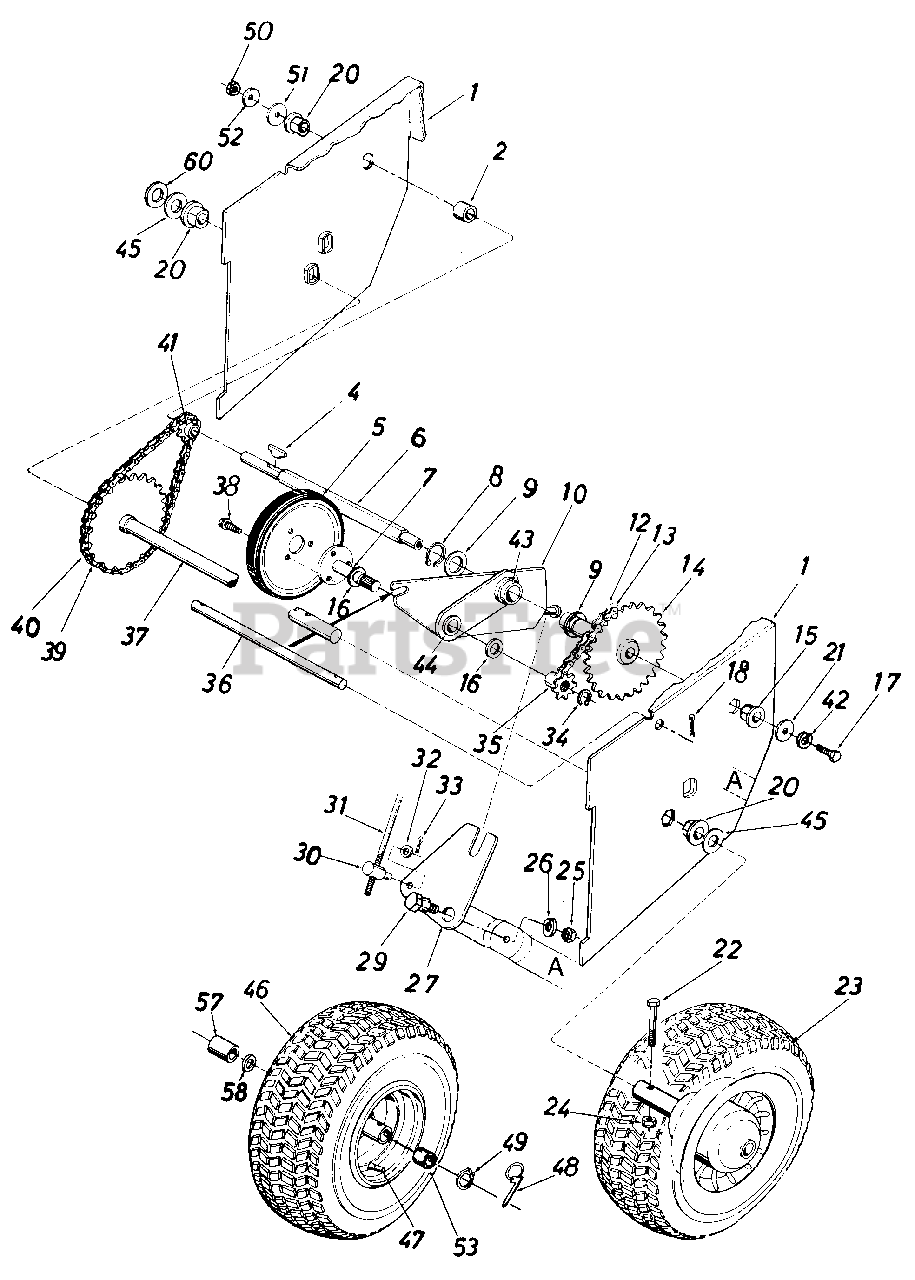

524 (319-550-100) - Cub Cadet 24" Snow Thrower (1989) Snow Thrower Part 4 Parts Diagram

24" Snow Thrower

Snow Thrower Part 4 Parts Diagram

  • Title

Cub Cadet 10499

Spacer .50" I.D. x .75" O.D. x.78" Lg.

$

$

Currently unavailable

1

Cub Cadet 784-5197

Frame Ass'y.

$

$

Not available

2

Cub Cadet 40496

Hex Shaft

$

$

Currently unavailable

4

Cub Cadet 714-0129

#4 Hi-Pro Key 3/32 x 518" Dia.
(Superseded to 914-0129)

$

$

Not available

5

Cub Cadet 05080

Friction Wheel Ass'y.
(Superseded to 05080AP)

$30.99

$

In Stock, Qty 12

0

6

Cub Cadet 741-0490

Flange Brg. w/Flats .75" I.D.
(Superseded to 941-0490)

$13.99

$

In Stock, only 3 left!

0

7

Cub Cadet 05883

Friction Wheel Mounting Plate Ass'y.

$

$

Not available

8

Cub Cadet 716-0102

Snap Ring 1.00" Dia. Shaft

$5.49

$

In Stock, Qty 20+

0

9

Cub Cadet 736-0163

Fl-Wash. 1.00 x 1.63" O.D. x .03

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 05880

Sliding Bracket Ass'y.

$

$

Not available

12

Cub Cadet 713-0285

#41 Chain 1/2" Pitch x 35 Links

$

$

Not available

13

Cub Cadet 713-0723

Master Link for #41 Chain
(Superseded to 913-0723)

$

$

Not available

14

Cub Cadet 713-0281

32 Teeth Sprocket Ass'y.

$

$

Currently unavailable

15

Cub Cadet 741-0225

Hex Flange Brg. .630" I.D.
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

16

Cub Cadet 736-0290

Fl-Wash. .62" I.D. x 1.00" O.D. x .06

$6.99

$

In Stock, only 3 left!

0

17

Cub Cadet 710-0538

Hex Lock Bolt 5/16-18 x .62" Lg

$4.49

$

In Stock, Qty 9

0

18

Cub Cadet 714-0507

Cotter Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

20

Cub Cadet 741-0490

Flange Brg. w/Flats .75" I.D.
(Superseded to 941-0490)

$13.99

$

In Stock, only 3 left!

0

21

Cub Cadet 736-0231

Fl-Wash. .34" I.D. x 1.12" O.D. x .125

$4.99

$

In Stock, Qty 11

0

22

Cub Cadet 710-0624

Hex Bolt 5/16-24 x 1.50" Lg. (420)

$5.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 734-1461

Wheel Ass'y.

$

$

Currently unavailable

24

Cub Cadet 712-0273

Hex Ins. Jam L-Nut 5/16-24 Thd. (420)
(Superseded to 912-0273)

$4.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

26

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 05898

Shifting Linkage Bracket

$

$

Not available

29

Cub Cadet 738-0281

Shld. Bolt .625" Dia. x .170" Lg.

$10.99

$

In Stock, only 1 left!

0

30

Cub Cadet 711-0677

Adjustment Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

31

Cub Cadet 747-0356

Shifting Rod 5/16" Dia. x 32.50" Lg.

$

$

Not available

32

Cub Cadet 736-0264

Fl-Wash. .34" I.D. x .64" O.D. x .06

$6.99

$

In Stock, only 1 left!

0

33

Cub Cadet 714-0507

Cotter Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

34

Cub Cadet 716-0145

Snap Ring .562" Dia. Shaft
(Superseded to 716-0397)

$

$

Not available

35

Cub Cadet 713-0280

Sprocket 7 Teeth x .50" Pitch

$

$

Not available

36

Cub Cadet 738-0497

Shaft .50" Dia. x 9.50" Lg.

$

$

Currently unavailable

37

Cub Cadet 713-0283

28 Teeth Wheel Axle Ass'y. (420)

$

$

Currently unavailable

Cub Cadet 713-0323

32 Teeth Wheel Axle Ass'y. (524)

$

$

Not available

38

Cub Cadet 710-0600

Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .50" Lg.

$3.49

$

Usually ships in 3-6 days

0

39

Cub Cadet 713-0270

#41 Chain 1/2" Pitch x 43 Links (420)

$

$

Not available

Cub Cadet 713-0287

#420 Chain 1/2" Pitch x 39 Links (524)

$

$

Not available

40

Cub Cadet 713-0723

Master Link for #41 Chain (420)
(Superseded to 913-0723)

$

$

Not available

Cub Cadet 713-0154

Master Link for #420 Chain (524)
(Superseded to 913-0154)

$

$

Not available

41

Cub Cadet 748-0204

8 Teeth Center Sprocket

$

$

Not available

42

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

43

Cub Cadet 741-0476

Bearing
(Superseded to 741-04488)

$9.49

$

In Stock, only 4 left!

0

44

Cub Cadet 748-0184

Bronze Bearing

$7.49

$

Usually ships in 3-6 days

0

45

Cub Cadet 736-0188

Fl-Wash. .76" I.D. x 1.49 O.D.

$4.49

$

In Stock, Qty 20+

0

46

0

Wheel

$

$

Not available

46

Cub Cadet 734-1253

Wheel Ass'y. Comp. (524) 13 x 5.0

$

$

Currently unavailable

47

Cub Cadet 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 714-0143

Klick Pin (524)
(Superseded to 714-0143A)

$6.49

$

In Stock, Qty 8

0

49

Cub Cadet 716-0101

Snap Ring .75 Dia. (524)

$3.99

$

In Stock, Qty 20+

0

50

Cub Cadet 712-0200

Hex Ins. L-Nut 1/2-20 Thd.
(Superseded to 712-0200A)

$4.49

$

In Stock, only 1 left!

0

51

Cub Cadet 736-0257

Fl-Wash. .53 I.D. x 1.25 O.D. x .10
(Superseded to 936-0179)

$4.99

$

In Stock, only 2 left!

0

52

Cub Cadet 736-0253

Bell-Wash. .50 I.D. x 1.0 O.D. x .075

$3.99

$

In Stock, Qty 20+

0

53

Cub Cadet 741-0401

Sleeve Brg. (524)
(Superseded to 941-0401)

$7.49

$

In Stock, Qty 14

0

57

UNKNOWN

$

$

Not available

58

UNKNOWN

$

$

Not available

60

UNKNOWN

$

$

Not available
